RM38N0EC _58 Vehicle Interior _111839 SEAT _0524495 REAR SEAT ASSEMBLY(for GTMC Made) A

SEAT  REAR SEAT ASSEMBLY(for GTMC Made)  DISASSEMBLY


CAUTION / NOTICE / HINT

CAUTION:

Wear protective gloves. Sharp areas on the parts may injure your hands.


PROCEDURE

Hide 73178A 1.REMOVE SEAT BELT ANCHOR COVER CAP (for RH Side)

a.

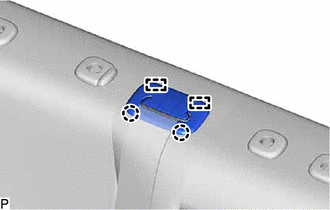

B585378

Disengage the 2 claws and 2 guides to remove the rear seat shoulder belt cover and seat belt anchor cover cap.


b.

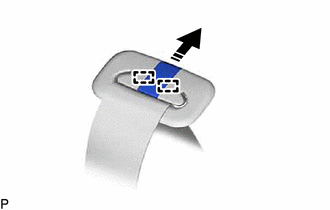

B585379C01
0,0 0,0 false
V113147

Remove in this Direction


Disengage the 2 guides to remove the seat belt anchor cover cap as shown in the illustration.


Hide 73373 2.REMOVE REAR SEAT SHOULDER BELT COVER (for RH Side)

a.
B590748

Remove the rear seat shoulder belt cover.


Hide 72668E 3.REMOVE REAR SEATBACK LOWER LOCK BEZEL RH (for RH Side)

a.

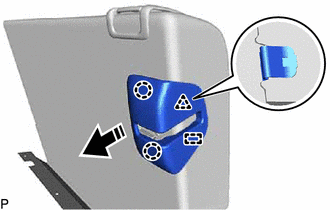

B591969C01
0,0 0,0 false
V113147

Remove in this Direction


Disengage the 2 claws, clip and guide as shown in the illustration to remove the rear seatback lower lock bezel RH.


Hide 72667A 4.REMOVE REAR SEATBACK UPPER LOCK BEZEL (for RH Side)

a.
B591971

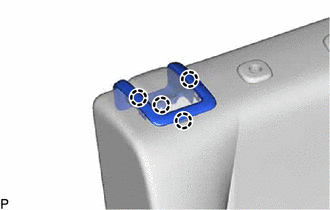

Disengage the 4 claws to remove the rear seatback upper lock bezel.


Hide 71701C 5.REMOVE REAR SEATBACK BOARD SUB-ASSEMBLY RH (for RH Side)

a.
B585382

Disengage the 2 hooks.


b.
B585383C03
0,0 0,0 false
V100155

Fastener

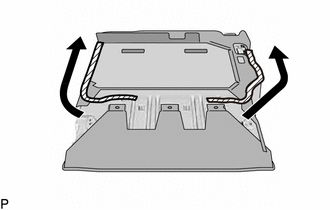

Open the 2 fasteners as shown in the illustration.


c.
B585384

Disengage the 5 hooks.


d.

Remove the 2 clips.


e.

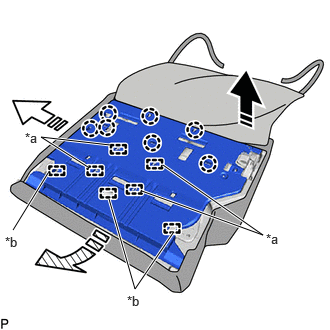

B585385C01
0.135,2.396 0.5,1.802 true 1.802,2.427 1.406,3.01 1.406,3.01 1.135,2.073 true 1.698,1.719 2.74,2.448 2.74,2.448 1.479,1.99 true 1.146,1.51 0.427,1.427 0.427,1.427 0.917,1.74 true 0.26,1.354 0.479,1.552 0.219,0.198 10 false *a 2.771,2.406 2.99,2.604 0.219,0.198 10 false *a 0.052,2.438 0.271,2.635 0.219,0.198 10 false *b 1.323,3.052 1.542,3.25 0.219,0.198 10 false *b
*a Guide
*b Hook
V113147

Remove in this Direction (1)
V113148

Remove in this Direction (2)
V113149

Remove in this Direction (3)


Pull in the direction indicated by the arrow (1) shown in the illustration to disengage the 7 claws.


f.

Pull in the direction indicated by the arrow (2) shown in the illustration to disengage the 4 guides.


g.

Pull in the direction indicated by the arrow (3) shown in the illustration to disengage the 3 hooks and remove the rear seatback board sub-assembly RH.


Hide 72869 6.REMOVE CENTER ARMREST HINGE COVER (for RH Side)

a.
B585388C01
3.208,1.125 3.083,0.333 true 3.125,1.156 3.344,1.427 0.219,0.271 10 false *a
*a Protective Tape
V113147

Remove in this Direction

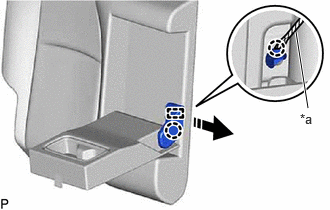

Using a screwdriver with its tip wrapped with protective tape, disengage the claw.


b.

Disengage the claw and guide as shown in the illustration to remove the center armrest hinge cover.


Hide 72830D 7.REMOVE REAR SEAT CENTER ARMREST ASSEMBLY (for RH Side)

a.
B585390

Remove the bolt and washer.


b.

Pull in the direction indicated by the arrow (1) shown in the illustration to disengage the guide.

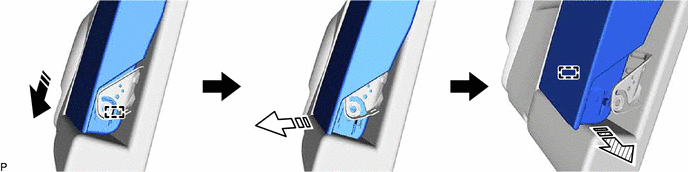

B585391C01
0,0 0,0 false
V113147

Remove in this Direction (1)
V113148

Remove in this Direction (2)
V113149

Remove in this Direction (3) - -



c.

Pull in the direction indicated by the arrow (2) shown in the illustration.


d.

Pull in the direction indicated by the arrow (3) shown in the illustration to disengage the guide and remove the rear seat center armrest assembly.


Hide 72806D 8.REMOVE REAR SEAT CENTER ARMREST CUP HOLDER SUB-ASSEMBLY (for RH Side)

a.

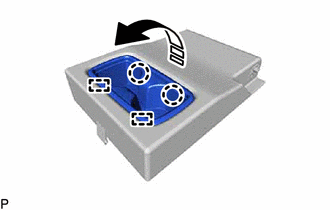

B585392C01
0,0 0,0 false
V113147

Remove in this Direction


Disengage the 2 claws and 2 guides as shown in the illustration to remove the rear seat center armrest cup holder sub-assembly.


Hide 72839 9.REMOVE REAR SEAT ARMREST HINGE SHIM (for RH Side)

a.
B585395C01
0,0 0,0 false
V113147

Remove in this Direction

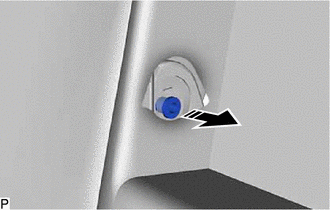

Remove the rear seat armrest hinge shim as shown in the illustration.


Hide 71931A 10.REMOVE REAR SEAT HEADREST SUPPORT (for RH Side)

a.
B585396C01
0,0 0,0 false
V113147

Remove in this Direction

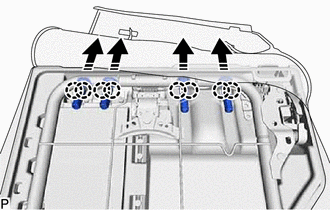

Disengage the 8 claws as shown in the illustration and remove the 4 rear seat headrest supports.


Hide 11.REMOVE SEPARATE TYPE REAR SEATBACK COVER WITH PAD (for RH Side)

a.
B585397

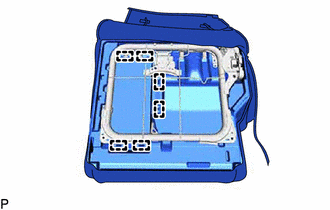

Disengage the 6 hooks.


b.

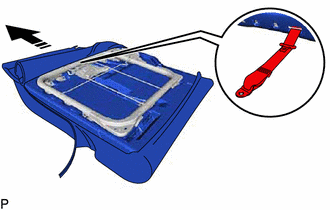

B585398C01
0,0 0,0 false
V113147

Remove in this Direction


Remove the separate type rear seatback cover with pad from the rear seatback frame sub-assembly RH as shown in the illustration.


Hide 71077S 12.REMOVE SEPARATE TYPE REAR SEATBACK COVER (for RH Side)

a.

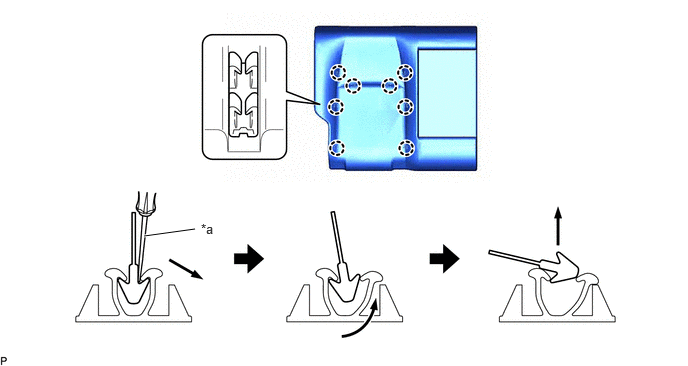

Using a screwdriver, disengage the 8 claws and remove the separate type rear seatback cover from the separate type rear seatback pad as shown in the illustration.

B595057C01
2.031,2.385 1.5,2.458 true 2.094,2.302 2.406,2.5 0.313,0.198 10 false *a
*a Screwdriver - -



Hide 72630C 14.REMOVE REAR SEATBACK LOCK ASSEMBLY RH (for RH Side)

a.

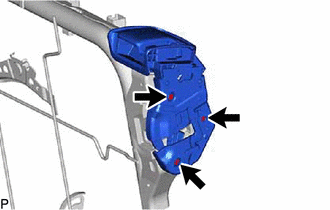

B591972

Remove the 3 bolts and rear seatback lock assembly RH.


Hide 72668L 15.REMOVE REAR SEATBACK LOWER NO. 2 LOCK BEZEL RH (for RH Side)

a.
B591973C01
0,0 0,0 false
V113147

Remove in this Direction

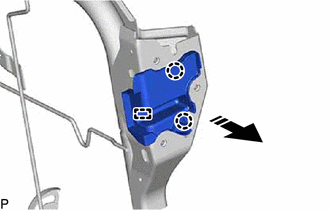

Disengage the 2 claws and guide as shown in the illustration to remove the rear seatback lower No. 2 lock bezel RH.


Hide 72668F 16.REMOVE REAR SEATBACK LOWER LOCK BEZEL LH (for LH Side)

HINT:

Use the same procedure as for the RH side.


Hide 72667B 17.REMOVE REAR SEATBACK UPPER LOCK BEZEL (for LH Side)

HINT:

Use the same procedure as for the RH side.


Hide 71702B 18.REMOVE REAR SEATBACK BOARD SUB-ASSEMBLY LH (for LH Side)

a.
B585365

Disengage the 2 hooks.


b.

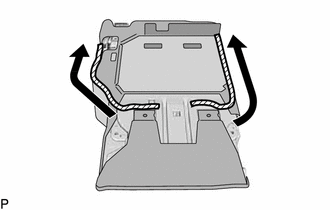

B585366C02
0,0 0,0 false
V100155

Fastener


Open the 2 fasteners as shown in the illustration.


c.
B585367

Disengage the 4 hooks.


d.

Remove the 3 clips.


e.

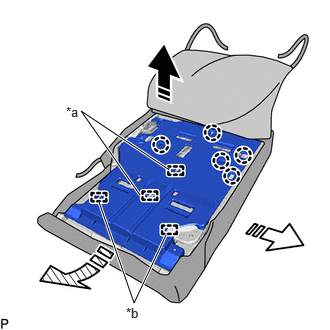

B585368C02
1.729,2.448 1.396,3.156 1.396,3.156 1.031,2.104 true 1.75,1.76 0.844,1.156 0.844,1.156 1.458,2.031 true 0.688,1.083 0.906,1.281 0.219,0.198 10 false *a 1.313,3.177 1.531,3.375 0.219,0.198 10 false *b
*a Guide
*b Hook
V113147

Remove in this Direction (1)
V113148

Remove in this Direction (2)
V113149

Remove in this Direction (3)


Pull in the direction indicated by the arrow (1) shown in the illustration to disengage the 5 claws.


f.

Pull in the direction indicated by the arrow (2) shown in the illustration to disengage the 2 guides.


g.

Pull in the direction indicated by the arrow (3) shown in the illustration to disengage the 2 hooks and remove the rear seatback board sub-assembly LH.


Hide 71931A 19.REMOVE REAR SEAT HEADREST SUPPORT (for LH Side)

a.

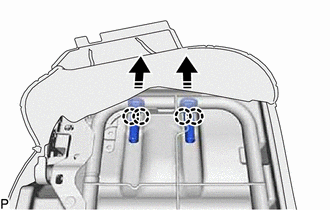

B585371C01
0,0 0,0 false
V113147

Remove in this Direction


Disengage the 4 claws as shown in the illustration and remove the 2 rear seat headrest supports.


Hide 20.REMOVE SEPARATE TYPE REAR SEATBACK COVER WITH PAD (for LH Side)

a.

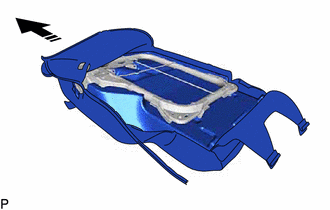

B585373C01
0,0 0,0 false
V113147

Remove in this Direction


Remove the separate type rear seatback cover with pad from the rear seatback frame sub-assembly LH as shown in the illustration.


Hide 71078S 21.REMOVE SEPARATE TYPE REAR SEATBACK COVER (for LH Side)

a.

Using a screwdriver, disengage the 8 claws and remove the separate type rear seatback cover from the separate type rear seatback pad as shown in the illustration.

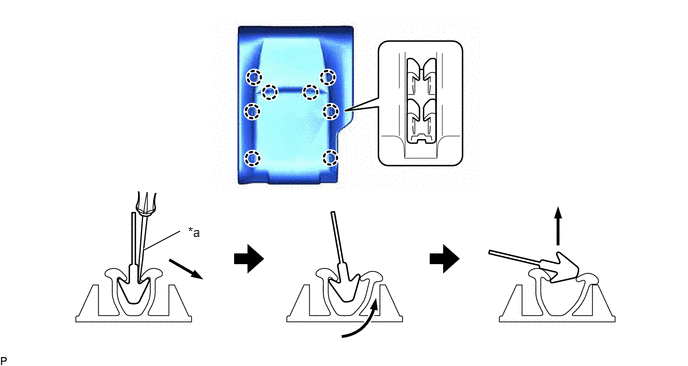

B595056C01
1.5,2.604 1.875,2.406 true 1.958,2.333 2.229,2.563 0.271,0.229 10 false *a
*a Screwdriver - -



Hide 72640A 22.REMOVE REAR SEATBACK LOCK ASSEMBLY LH (for LH Side)

HINT:

Use the same procedure as for the RH side.


Hide 72668M 23.REMOVE REAR SEATBACK LOWER NO. 2 LOCK BEZEL LH (for LH Side)

HINT:

Use the same procedure as for the RH side.


Hide 71075B 24.REMOVE BENCH TYPE REAR SEAT CUSHION COVER

a.

for Gasoline Model:

i.

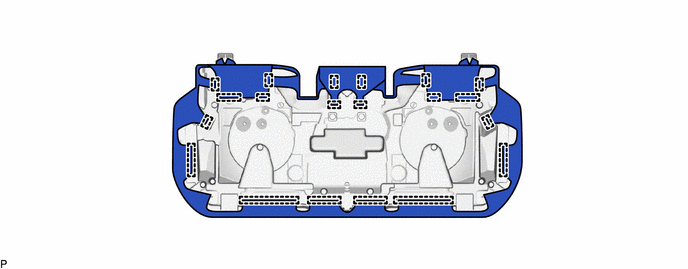

Disengage the 20 hooks.

B595512


ii.

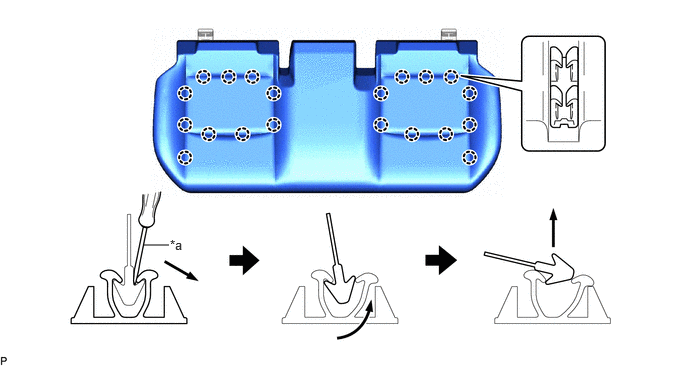

Using a screwdriver, disengage the 20 claws and remove the bench type rear seat cushion cover from the rear seat cushion pad as shown in the illustration.

B595513C01
1.49,2.552 1.76,2.552 false 1.771,2.469 2.083,2.667 0.313,0.198 10 false *a
*a Screwdriver - -




b.

for HV Model:

i.

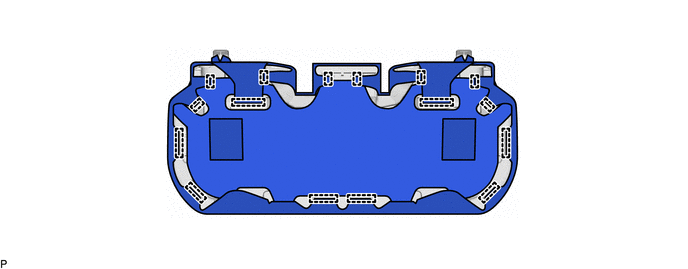

Disengage the 16 hooks.

B585406


ii.

Using a screwdriver, disengage the 20 claws and remove the bench type rear seat cushion cover from the rear seat cushion pad as shown in the illustration.

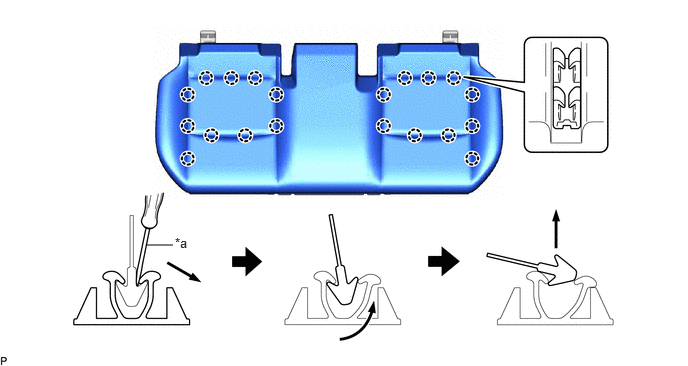

B589716C01
1.531,2.552 1.802,2.552 false 1.823,2.448 2.135,2.646 0.313,0.198 10 false *a
*a Screwdriver - -
