RM38N0EC _58 Vehicle Interior _111839 SEAT _0524495 REAR SEAT ASSEMBLY(for GTMC Made) A

SEAT  REAR SEAT ASSEMBLY(for GTMC Made)  REMOVAL


CAUTION / NOTICE / HINT

CAUTION:

Wear protective gloves. Sharp areas on the parts may injure your hands.


PROCEDURE

Hide 71940A 2.REMOVE REAR SEAT HEADREST ASSEMBLY

a.

Remove the 2 rear seat headrest assemblies.


Hide 71960B 3.REMOVE REAR SEAT CENTER HEADREST ASSEMBLY

a.

Remove the rear seat center headrest assembly.


Hide 4.REMOVE REAR SEAT CUSHION ASSEMBLY

a.

for Gasoline Model:

i.

Lift the front edge of the rear seat cushion assembly as shown in the illustration and disengage the 2 rear seat cushion frame hooks on the front side of the rear seat cushion assembly from the rear seat cushion lock hooks.

NOTICE:

Be sure to hold the parts of the seat cushion assembly directly next to the rear seat cushion frame hooks when lifting it. Lifting a different part of the cushion may deform the rear seat cushion frame.

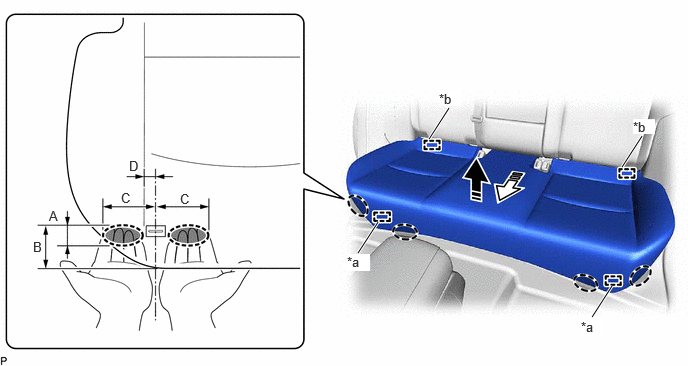

B591965C01
4.469,1.448 4.677,1.125 true 6.479,1.74 6.688,1.417 true 3.729,2.635 3.938,2.313 true 6.167,3.302 6.375,2.979 true 3.615,2.646 3.854,2.823 0.24,0.177 10 true *a 4.573,0.948 4.802,1.104 0.229,0.156 10 true *b 0.51,2.167 0.667,2.365 0.156,0.198 10 false A 0.344,2.49 0.5,2.688 0.156,0.198 10 false B 1.344,1.646 1.5,1.844 0.156,0.198 10 false D 1.26,1.979 1.417,2.177 0.156,0.198 10 false C 1.875,1.99 2.031,2.188 0.156,0.198 10 false C 6.594,1.24 6.823,1.396 0.229,0.156 10 true *b 6.052,3.323 6.292,3.5 0.24,0.177 10 true *a
*a Rear Seat Cushion Frame Hook (Front Side) *b Rear Seat Cushion Frame Hook (Rear Side)
V113146

Place Hand Here
V113147

Remove in this Direction (1)
V113148

Remove in this Direction (2) - -


Standard Measurement:
Area Measurement Area Measurement
A 30 mm (1.18 in.) B 60 mm (2.36 in.)
C 80 mm (3.15 in.) D 20 mm (0.787 in.)



ii.

Disengage the 2 rear seat cushion frame hooks on the rear side of the rear seat cushion assembly as shown in the illustration and remove the rear seat cushion assembly.

NOTICE:

Be careful not to damage the vehicle body.




b.

for HV Model:

i.

Lift the front edge of the rear seat cushion assembly as shown in the illustration and disengage the 2 rear seat cushion frame hooks on the front side of the rear seat cushion assembly from the rear seat cushion lock hooks.

NOTICE:

Be sure to hold the parts of the seat cushion assembly directly next to the rear seat cushion frame hooks when lifting it. Lifting a different part of the cushion may deform the rear seat cushion frame.

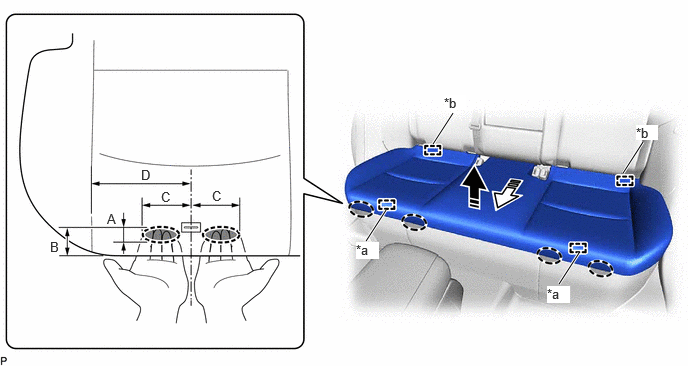

B586567C01
4.51,1.5 4.719,1.177 true 6.49,1.802 6.698,1.479 true 3.813,2.51 4.021,2.188 true 5.823,2.958 6.031,2.635 true 3.708,2.521 3.948,2.698 0.24,0.177 10 true *a 4.625,0.99 4.854,1.146 0.229,0.156 10 true *b 1.115,2.198 1.271,2.396 0.156,0.198 10 false A 0.521,2.49 0.677,2.688 0.156,0.198 10 false B 1.469,1.74 1.625,1.938 0.156,0.198 10 false D 1.677,1.969 1.833,2.167 0.156,0.198 10 false C 2.208,1.958 2.365,2.156 0.156,0.198 10 false C 6.625,1.302 6.854,1.458 0.229,0.156 10 true *b 5.698,2.979 5.938,3.156 0.24,0.177 10 true *a
*a Rear Seat Cushion Frame Hook (Front Side) *b Rear Seat Cushion Frame Hook (Rear Side)
V113146

Place Hand Here
V113147

Remove in this Direction (1)
V113148

Remove in this Direction (2) - -


Standard Measurement:
Area Measurement Area Measurement
A 30 mm (1.18 in.) B 60 mm (2.36 in.)
C 80 mm (3.15 in.) D 150 mm (5.91 in.)



ii.

Disengage the 2 rear seat cushion frame hooks on the rear side of the rear seat cushion assembly as shown in the illustration and remove the rear seat cushion assembly.

NOTICE:

Be careful not to damage the vehicle body.




Hide 72693 5.REMOVE REAR SEAT CUSHION LOCK HOOK

a.

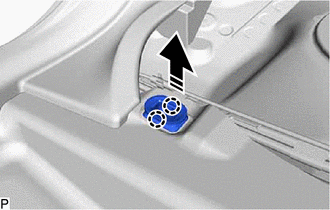

B591967C01
0,0 0,0 false
V113147

Remove in this Direction


Disengage the 2 claws to remove the rear seat cushion lock hook as shown in the illustration.

HINT:

Use the same procedure for the RH side and LH side.



Hide 73350C 6.DISCONNECT REAR CENTER SEAT OUTER BELT ASSEMBLY

a.

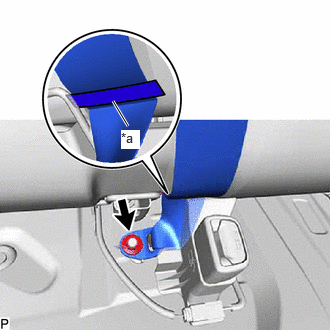

B586570C04
1.333,1.313 1.177,1.052 true 1.26,1.354 1.458,1.552 0.198,0.198 10 true *a
*a Band


Remove the nut and disconnect the floor anchor of the rear center seat outer belt assembly.


b.

Remove the floor anchor part of the rear center seat outer belt assembly from the band of the rear seatback assembly RH.


Hide 7.REMOVE REAR SEATBACK ASSEMBLY RH

a.

Fold the rear seatback assembly RH forward.


b.

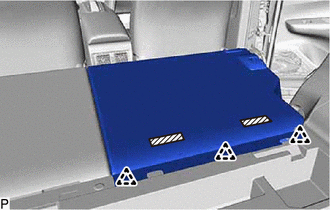

B585358C01
0,0 0,0 false
V100155

Fastener


Disengage the 3 clips.


c.

Disengage the 2 fasteners.


d.

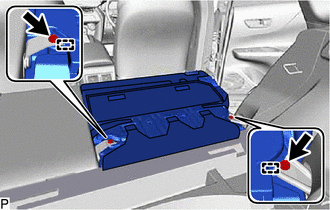

B585359

Remove the 2 bolts.


e.

Disengage the 2 guides and remove the rear seatback assembly RH.

NOTICE:

Be careful not to damage the vehicle body.



Hide 8.REMOVE REAR SEATBACK ASSEMBLY LH

a.

Fold the rear seatback assembly LH forward.


b.

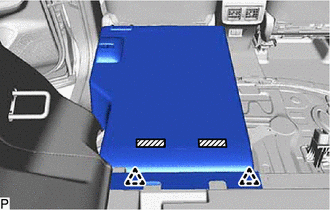

B585360C01
0,0 0,0 false
V100155

Fastener


Disengage the 2 clips.


c.

Disengage the 2 fasteners.


d.

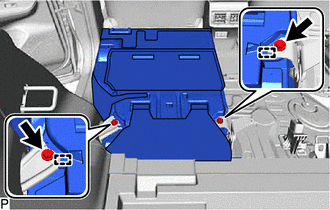

B585361

Remove the 2 bolts.


e.

Disengage the 2 guides and remove the rear seatback assembly LH.

NOTICE:

Be careful not to damage the vehicle body.
