RM38N0EC
_58
Vehicle Interior
_111839
SEAT
_0524495
REAR SEAT ASSEMBLY(for GTMC Made)
K
SEAT REAR SEAT ASSEMBLY(for GTMC Made) COMPONENTS

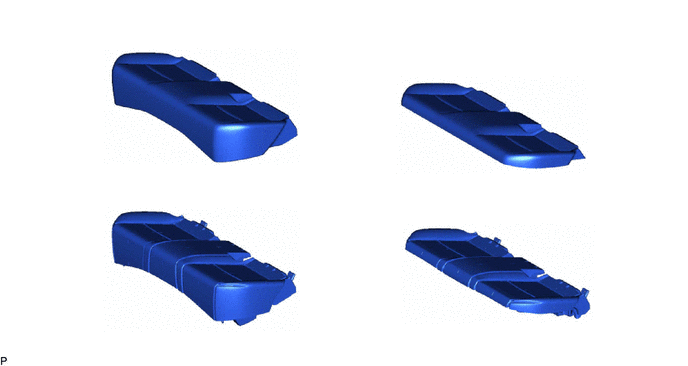

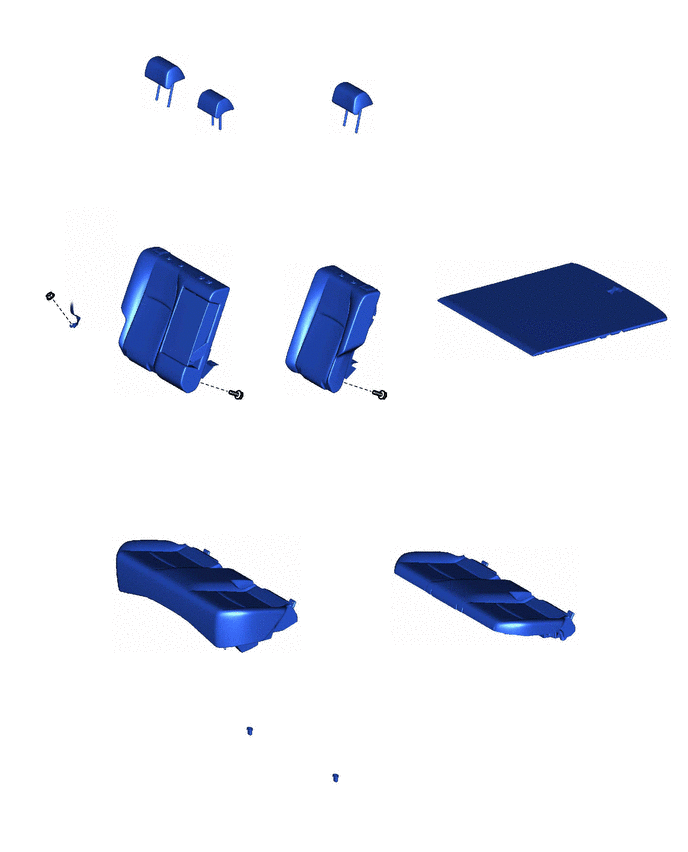

ILLUSTRATION
| *A | for Gasoline Model | *B | for HV Model |
| *1 | DECK BOARD ASSEMBLY | *2 | REAR CENTER SEAT OUTER BELT ASSEMBLY |
| *3 | REAR SEAT CENTER HEADREST ASSEMBLY | *4 | REAR SEAT CUSHION ASSEMBLY |
| *5 | REAR SEAT CUSHION LOCK HOOK | *6 | REAR SEAT HEADREST ASSEMBLY |
| *7 | REAR SEATBACK ASSEMBLY LH | *8 | REAR SEATBACK ASSEMBLY RH |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | ● | Non-reusable part |

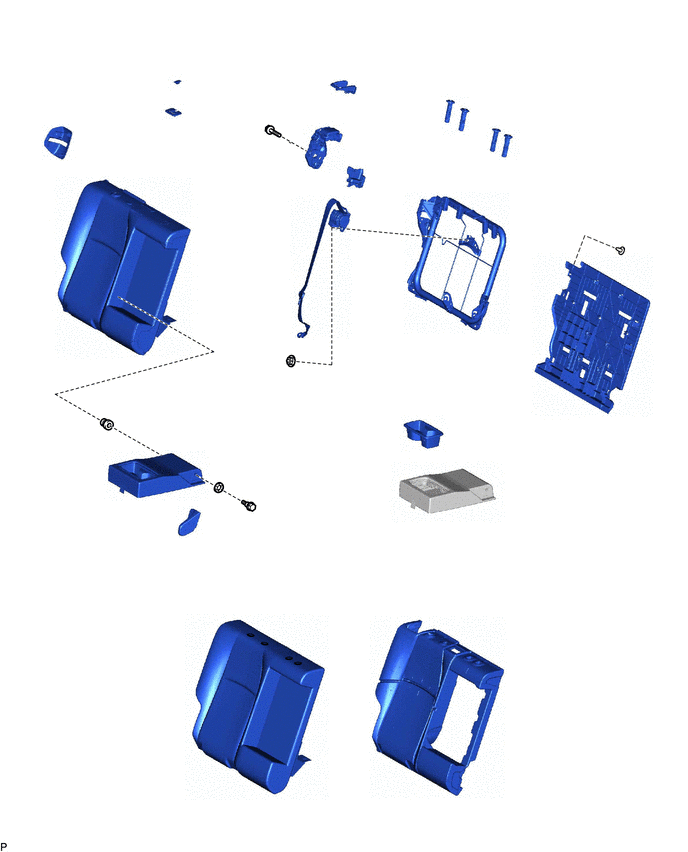

ILLUSTRATION
| *A | for RH Side | - | - |
| *1 | CENTER ARMREST HINGE COVER | *2 | REAR CENTER SEAT OUTER BELT ASSEMBLY |
| *3 | REAR SEAT ARMREST HINGE SHIM | *4 | REAR SEAT CENTER ARMREST ASSEMBLY |
| *5 | REAR SEAT CENTER ARMREST CUP HOLDER SUB-ASSEMBLY | *6 | REAR SEAT HEADREST SUPPORT |
| *7 | REAR SEAT SHOULDER BELT COVER | *8 | REAR SEATBACK BOARD SUB-ASSEMBLY RH |
| *9 | REAR SEATBACK LOCK ASSEMBLY RH | *10 | REAR SEATBACK LOWER LOCK BEZEL RH |
| *11 | REAR SEATBACK LOWER NO. 2 LOCK BEZEL RH | *12 | REAR SEATBACK UPPER LOCK BEZEL |
| *13 | SEAT BELT ANCHOR COVER CAP | *14 | SEPARATE TYPE REAR SEATBACK COVER |
| *15 | SEPARATE TYPE REAR SEATBACK COVER WITH PAD | *16 | REAR SEATBACK FRAME SUB-ASSEMBLY RH |
| *17 | SEPARATE TYPE REAR SEATBACK PAD | - | - |
|
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
| ● | Non-reusable part | - | - |
ILLUSTRATION
| *A | for LH Side | - | - |
| *1 | REAR SEAT HEADREST SUPPORT | *2 | REAR SEATBACK BOARD SUB-ASSEMBLY LH |
| *3 | REAR SEATBACK LOCK ASSEMBLY LH | *4 | REAR SEATBACK LOWER LOCK BEZEL LH |
| *5 | REAR SEATBACK LOWER NO. 2 LOCK BEZEL LH | *6 | REAR SEATBACK UPPER LOCK BEZEL |
| *7 | SEPARATE TYPE REAR SEATBACK COVER | *8 | SEPARATE TYPE REAR SEATBACK COVER WITH PAD |
| *9 | REAR SEATBACK FRAME SUB-ASSEMBLY LH | *10 | SEPARATE TYPE REAR SEATBACK PAD |
|
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | ● | Non-reusable part |
ILLUSTRATION
| *A | for Gasoline Model | *B | for HV Model |
| *1 | BENCH TYPE REAR SEAT CUSHION COVER | *2 | REAR SEAT CUSHION PAD |
