RM38N0EC _59 Vehicle Exterior _111849 EXTERIOR PANELS / TRIM _0524334 FRONT BUMPER(for GTMC Made) A

EXTERIOR PANELS / TRIM FRONT BUMPER(for GTMC Made) DISASSEMBLY

PROCEDURE

Hide Display 89341L 1.REMOVE FRONT CENTER ULTRASONIC SENSOR (w/ TOYOTA Parking Assist-sensor System)

Click hereAudio / Visual / Telematics>PARK ASSIST / MONITORING>ULTRASONIC SENSOR (for Front)>REMOVAL202203,202406,_56,_111825,_0500524,RM1000000022L79_01_0058,202406,202409,_56,_111825,_0500524,RM100000002MQNQ_01_0058,202409,999999,_56,_111825,_0500524,RM100000002OMKA_01_0058,

Hide Display 89341K 2.REMOVE FRONT CORNER ULTRASONIC SENSOR (w/ TOYOTA Parking Assist-sensor System)

Click hereAudio / Visual / Telematics>PARK ASSIST / MONITORING>ULTRASONIC SENSOR (for Front)>REMOVAL202203,202406,_56,_111825,_0500524,RM1000000022L79_01_0059,202406,202409,_56,_111825,_0500524,RM100000002MQNQ_01_0059,202409,999999,_56,_111825,_0500524,RM100000002OMKA_01_0059,

Hide Display 89C48D 3.REMOVE FRONT CORNER ULTRASONIC SENSOR RETAINER (w/ TOYOTA Parking Assist-sensor System)

Click hereAudio / Visual / Telematics>PARK ASSIST / MONITORING>ULTRASONIC SENSOR (for Front)>REMOVAL202203,202406,_56,_111825,_0500524,RM1000000022L79_01_0060,202406,202409,_56,_111825,_0500524,RM100000002MQNQ_01_0060,202409,999999,_56,_111825,_0500524,RM100000002OMKA_01_0060,

Hide Display 86790B 4.REMOVE FRONT TELEVISION CAMERA ASSEMBLY (w/ Panoramic View Monitor System)

Click hereAudio / Visual / Telematics>PARK ASSIST / MONITORING>TELEVISION CAMERA (for Front)>REMOVAL202203,202406,_56,_111825,_0500526,RM10000000224HL_01_0018,202406,202409,_56,_111825,_0500526,RM100000002MQO8_01_0018,202409,999999,_56,_111825,_0500526,RM100000002OMJZ_01_0018,

Hide Display 88211B 5.REMOVE MILLIMETER WAVE RADAR SENSOR ASSEMBLY

Click hereADAS / AD>ADVANCED DRIVER ASSISTANCE SYSTEM>MILLIMETER WAVE RADAR SENSOR>REMOVAL202111,202303,_95,_111850,_0502179,RM100000001Z95I_01_0015,202303,999999,_95,_111850,_0502179,RM10000000292O4_01_0015,

Hide Display 81220 6.REMOVE FOG LIGHT ASSEMBLY LH

Click hereVehicle Exterior>LIGHTING (EXT)>FOG LIGHT ASSEMBLY>REMOVAL202203,202406,_59,_111834,_0499903,RM1000000022TFW_01_0025,202406,202409,_59,_111834,_0499903,RM100000002MT6P_01_0025,202409,999999,_59,_111834,_0499903,RM100000002OUJ2_01_0025,

Hide Display 81210A 7.REMOVE FOG LIGHT ASSEMBLY RH

HINT:: Use the same procedure as for the LH side.

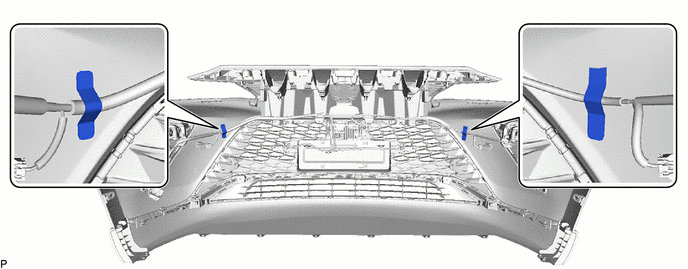

Hide Display 81269B 8.REMOVE FOG LIGHT SEAL

Remove the 2 fog light seals.

Hide Display 82114 9.REMOVE NO. 4 ENGINE ROOM WIRE

Disengage the 10 clamps to remove the No. 4 engine room wire.

Hide Display 81482C 10.REMOVE FOG LIGHT COVER LH

Remove the 3 screws and fog light cover LH.

Hide Display 81481E 11.REMOVE FOG LIGHT COVER RH

HINT:: Use the same procedure as for the LH side.

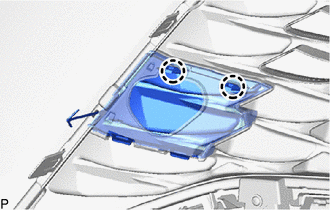

Hide Display 52128B 12.REMOVE FRONT BUMPER HOLE COVER LH

Remove the clip.

Disengage the 5 claws to remove the front bumper hole cover LH.

Hide Display 52127C 13.REMOVE FRONT BUMPER HOLE COVER RH

HINT:: Use the same procedure as for the LH side.

Hide Display 53395E 14.REMOVE HOOD TO FRONT END PANEL SEAL

Disengage the 2 guides and 16 clips to remove the hood to front end panel seal.

Hide Display 53115B 15.REMOVE RADIATOR GRILLE BRACKET

Remove the 5 screws and 6 clips.

0.979,1.458 1.229,1.656 0.25,0.198 10 true *b 1.958,1.813 2.208,2.01 0.25,0.198 10 true *a 2.906,1.729 3.156,1.927 0.25,0.198 10 true *a 3.323,1.135 3.573,1.333 0.25,0.198 10 true *a 3.958,1.74 4.208,1.938 0.25,0.198 10 true *a 4.896,1.833 5.146,2.031 0.25,0.198 10 true *a 5.875,1.5 6.125,1.698 0.25,0.198 10 true *b 1.615,1.292 1.865,1.49 0.25,0.198 10 true *b 2.438,1.229 2.688,1.427 0.25,0.198 10 true *b 4.406,1.229 4.656,1.427 0.25,0.198 10 true *b 5.229,1.333 5.479,1.531 0.25,0.198 10 true *b

Screw

Clip

Disengage the 3 guides to remove the radiator grille bracket.

Hide Display 52149 16.REMOVE FRONT INNER BUMPER BRACKET

Remove the 4 screws and the front inner bumper bracket.

Hide Display 53141B 17.REMOVE NO. 1 RADIATOR GRILLE GARNISH

Remove the 4 claws and guide to remove the No. 1 radiator grille garnish.

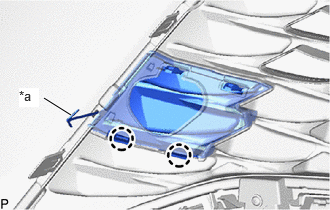

Hide Display 53286C 18.REMOVE FRONT BUMPER ARM HOLE COVER LH

Disengage the 2 claws.

0.458,1.021 0.74,1.198 true 0.198,0.917 0.406,1.115 0.208,0.198 10 true *a

Hook

Disengage the 2 claws and hook to remove the front bumper arm hole cover LH.

Hide Display 53285J 19.REMOVE FRONT BUMPER ARM HOLE COVER RH

HINT:: Use the same procedure as for the LH side.

Hide Display 52414 20.REMOVE FRONT BUMPER GUARD PAD LH

Remove the 2 clips and remove the front bumper guard pad LH.

Hide Display 52413A 21.REMOVE FRONT BUMPER GUARD PAD RH

HINT:: Use the same procedure as for the LH side.

Hide Display 53122E 22.REMOVE LOWER RADIATOR GRILLE MOULDING

Remove the 2 clips.

Remove the 5 screws.

Disengage the 18 claws to remove the lower radiator grille moulding.

Hide Display 52411 23.REMOVE FRONT BUMPER GUARD

Remove the 6 clips.

Disengage the 10 claws to remove the front bumper guard.

Hide Display 53113E 24.REMOVE NO. 2 RADIATOR LOWER GRILLE

Disengage the 5 claws to remove the No. 2 radiator lower grille.

Hide Display 53102A 25.REMOVE LOWER RADIATOR GRILLE SUB-ASSEMBLY

Remove the 2 screws.

Disengage the 10 claws to remove the lower radiator grille sub-assembly.

Hide Display 53126B 26.REMOVE RADIATOR GRILLE CENTER MOULDING LH

Disengage the 5 claws to remove the radiator grille center moulding LH.

Hide Display 53125B 27.REMOVE RADIATOR GRILLE CENTER MOULDING RH

HINT:: Use the same procedure as for the LH side.

Hide Display 53124F 28.REMOVE RADIATOR GRILLE SIDE MOULDING LH

Remove the screw.

Disengage the 2 claws to remove the radiator grille side moulding LH.

Hide Display 53123G 29.REMOVE RADIATOR GRILLE SIDE MOULDING RH

HINT:: Use the same procedure as for the LH side.

Hide Display 75311 30.REMOVE RADIATOR GRILLE (OR FRONT PANEL) EMBLEM

Disengage the 4 claws and guide to remove the radiator grille (or front panel) emblem.

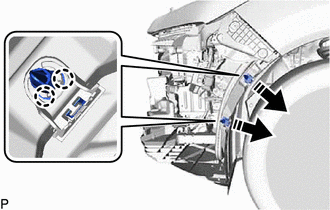

Hide Display 47749F 31.REMOVE PIN HOLD CLIP

0,0 0,0 false

Remove in this Direction

Disengage the 4 claws as shown in the illustration to remove the 2 pin hold clips.

HINT:: Use the same procedure for the RH side and LH side.

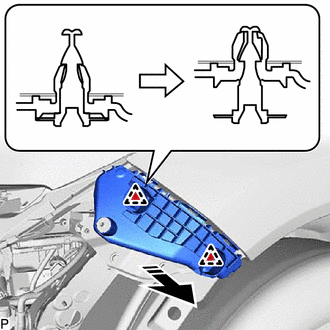

Hide Display 53879H 32.REMOVE FRONT FENDER LINER RETAINER

0,0 0,0 false

Remove in this Direction

Remove the 2 front fender liner retainers as shown in the illustration.

HINT:: Use the same procedure for the RH side and LH side.

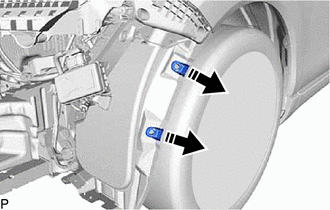

Hide Display 52536 33.REMOVE FRONT BUMPER SIDE RETAINER LH

HINT:: Perform this procedure only when replacement of the front bumper side retainer LH is necessary.

0,0 0,0 false

Remove in this Direction

Disengage the 2 clips as shown in the illustration to remove the front bumper side retainer LH.

Hide Display 52535 34.REMOVE FRONT BUMPER SIDE RETAINER RH

HINT:: Use the same procedure as for the LH side.

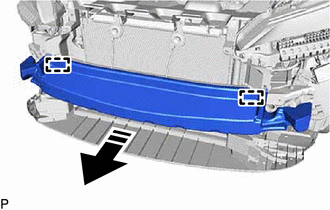

Hide Display 52614 35.REMOVE NO. 2 FRONT BUMPER ENERGY ABSORBER

HINT:: Perform this procedure only when replacement of the No. 2 front bumper energy absorber is necessary.

0,0 0,0 false

Remove in this Direction

Disengage the 2 guides as shown in the illustration to remove the No. 2 front bumper energy absorber.

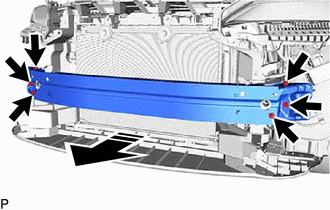

Hide Display 52021 36.REMOVE FRONT BUMPER REINFORCEMENT SUB-ASSEMBLY

HINT:: Perform this procedure only when replacement of the front bumper reinforcement sub-assembly is necessary.

Disengage the 3 clamps.

0,0 0,0 false

Remove in this Direction

Remove the 6 bolts and front bumper reinforcement sub-assembly as shown in the illustration.

Hide Display 52132A 37.REMOVE NO. 2 FRONT BUMPER REINFORCEMENT (for HV Model)

HINT:: Perform this procedure only when replacement of the No. 2 front bumper reinforcement is necessary.

Remove the 4 nuts and No. 2 front bumper reinforcement.

Hide Display 51441 38.REMOVE NO. 1 ENGINE UNDER COVER

HINT:: Perform this procedure only when replacement of the front bumper lower absorber is necessary.; Click hereEngine / Hybrid System>M20C-FKS, M20D-FKS (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL202203,202303,_51,_111786,_0499722,RM1000000022F78_01_0003,202303,202406,_51,_111786,_0499722,RM100000002A0JY_01_0003,202406,202409,_51,_111786,_0499722,RM100000002MXOE_01_0003,202409,999999,_51,_111786,_0499722,RM100000002OLFC_01_0003,

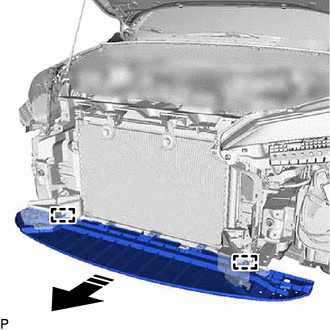

Hide Display 52618 39.REMOVE FRONT BUMPER LOWER ABSORBER

HINT:: Perform this procedure only when replacement of the front bumper lower absorber is necessary.

for Gasoline Model:

Remove the 5 screws.

ii.

0,0 0,0 false

Remove in this Direction

Disengage the 2 guides as shown in the illustration to remove the front bumper lower absorber.

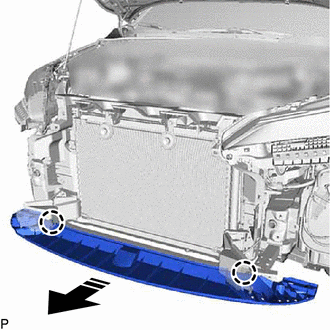

for HV Model:

Remove the clip.

ii.

0,0 0,0 false

Remove in this Direction

Disengage the 2 claws as shown in the illustration to remove the front bumper lower absorber.

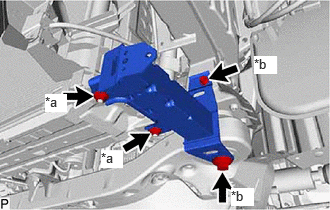

Hide Display 52103A 40.REMOVE FRONT BUMPER EXTENSION SUB-ASSEMBLY LH

HINT:: Perform this procedure only when replacement of the front bumper extension sub-assembly LH is necessary.

2.646,0.583 2.885,0.771 0.24,0.188 10 true *b 0.469,0.979 0.698,1.167 0.229,0.188 10 true *a 2.406,1.958 2.646,2.146 0.24,0.188 10 true *b 1.052,1.563 1.281,1.75 0.229,0.188 10 true *a

*a	Nut
*b	Bolt

Remove the 2 nuts.

Remove the 2 bolts and front bumper extension sub-assembly LH.

Hide Display 52102B 41.REMOVE FRONT BUMPER EXTENSION SUB-ASSEMBLY RH

HINT:: Use the same procedure as for the LH side.
