MAINTENANCE  GF1A TRANSFER OIL  REPLACEMENT

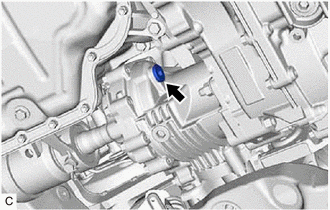

Using a 10 mm straight hexagon and 10 x 12 mm long offset wrench, remove the transfer filler plug and gasket from the transfer assembly.

Using a 10 mm hexagon socket wrench, remove the transfer drain plug and gasket and drain the transfer oil.

Using a 10 mm straight hexagon and 10 x 12 mm long offset wrench, remove the transfer filler plug and gasket from the transfer assembly.

2.667,0.854 2.979,1.052 0.313,0.198 10 false *a

*a	0 to 5 mm (0 to 0.197 in.)

Check that the oil level is between 0 to 5 mm (0 to 0.197 in.) from the bottom lip of the transfer filler plug hole.

NOTICE:

·

When adding transfer oil, pour it slowly.

·

Add transfer oil a little at a time, waiting several minutes between each addition of transfer oil.

·

Too much or too little transfer oil will lead to transfer problems.

1.021,3.948 1.198,4.177 false 0.729,4.031 0.479,4.031 false 0.323,3.948 0.635,4.104 0.313,0.156 10 false *a 1.25,4.125 1.563,4.281 0.313,0.156 10 false *b 1.802,3.25 2.115,3.406 0.313,0.156 10 false *c

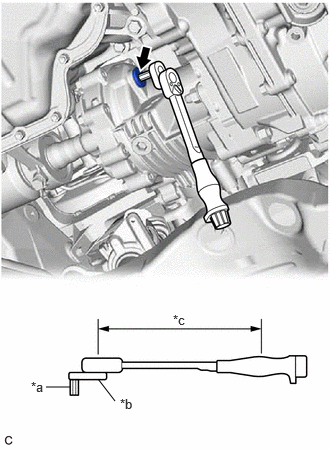

*a	10 mm Straight Hexagon
*b	10 mm Union Nut Wrench
*c	Torque Wrench Fulcrum Length

Using a 10 mm straight hexagon and 10 mm union nut wrench, install a new gasket and the transfer filler plug to the transfer assembly.

Torque:

Specified Tightening Torque : 39 N*m (398 kgf*cm, 29 ft.*lbf)

NOTICE:

After adding transfer oil, drive the vehicle and recheck the oil level.

HINT:

·

Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.

Click hereGeneral>INTRODUCTION>REPAIR INSTRUCTION>PRECAUTION202111,999999,_V1,_111779,_0504973,RM100000001ZKRM,

·

When using a 10 mm union nut wrench (fulcrum length of 22 mm (0.866 in.)) + torque wrench (fulcrum length of 180 mm (7.09 in.)):

34.8 N*m (355 kgf*cm, 26 ft.*lbf)
