DOOR / HATCH
_0511871
FUEL LID OPENER SYSTEM
U

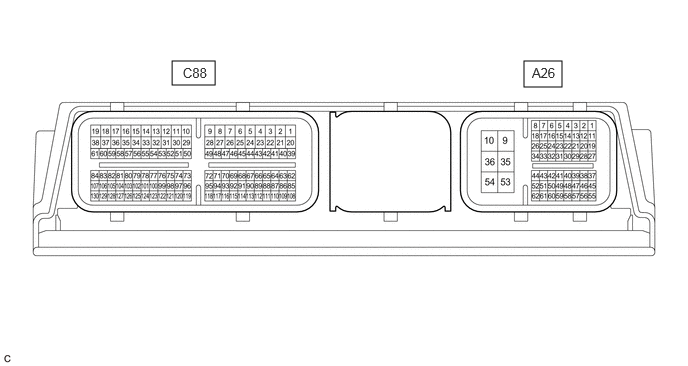

DOOR / HATCH FUEL LID OPENER SYSTEM TERMINALS OF ECU
CHECK ECM
1.792,0.635 2.24,0.885
0.448,0.25
5.458,0.635 5.854,0.906
0.396,0.271
1.906,0.677 2.365,0.875
0.458,0.198
10
false
C88
5.542,0.677 6,0.875
0.458,0.198
10
false
A26
a.
Measure the voltage according to the value(s) in the table below.
| Terminal No. (Symbol) | Terminal Description | Condition | Specified Condition |
|---|---|---|---|
| A26-44 (FREL) - A26-10 (E1) | Fuel lid lock with motor assembly operation signal | Fuel lid lock with motor assembly operating | Below 1 V |
| Fuel lid lock with motor assembly not operating | 11 to 14 V | ||
| A26-31 (LIDO) - A26-10 (E1) | Fuel lid courtesy switch signal | Fuel lid closed | 11 to 14 V |
| Fuel lid open | Below 1 V | ||
| A26-38 (FUEL) - A26-10 (E1) | Fuel lid opener switch signal | Fuel lid opener switch pressed | Below 1 V |
| Fuel lid opener switch not pressed | 4.5 to 5.5 V |
