STOP AND START  STOP AND START SYSTEM  Stop and Start Cancel Switch Circuit


DESCRIPTION

Stop and start control can be disabled by pressing the stop and start system cancel switch (combination switch assembly). The stop and start system cancel switch (combination switch assembly) is a momentary-type switch that switches between on and off when the switch is pressed. While stop and start control is disabled, the stop and start cancel indicator is illuminated to inform the driver.

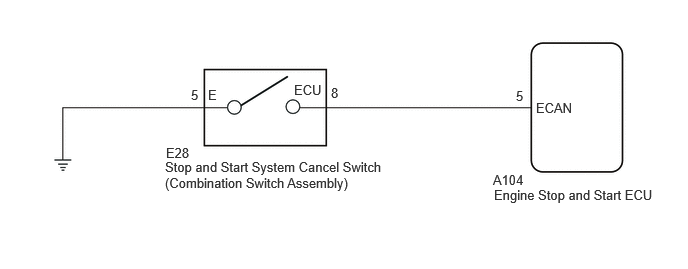

WIRING DIAGRAM

A416687E14
5.583,1.042 6.198,1.24 0.615,0.198 10 false ECAN 5.375,0.917 5.99,1.115 0.615,0.198 10 false 5 5.135,1.792 5.75,1.99 0.615,0.198 10 false A104 5.146,1.948 6.99,2.469 1.844,0.521 10 false Engine Stop and Start ECU 1.729,1.51 2.344,1.708 0.615,0.198 10 false E28 1.719,1.656 4.083,2.104 2.365,0.448 10 false Stop and Start System Cancel Switch (Combination Switch Assembly) 3.448,0.885 4.063,1.083 0.615,0.198 10 false 8 1.99,0.906 2.604,1.104 0.615,0.198 10 false 5 2.167,0.906 2.781,1.104 0.615,0.198 10 false E 3.063,0.854 3.677,1.052 0.615,0.198 10 false ECU

PROCEDURE

1.READ VALUE USING GTS (STOP&START CANCEL SWITCH)
a.

Read the value when the stop and start system cancel switch (combination switch assembly) is pressed.

Powertrain > Stop and Start > Data List
Tester Display
Stop&Start Cancel Switch
50003 392 208
OK:
GTS Display Condition Normal Condition
Stop&Start Cancel Switch Stop and start system cancel switch (combination switch assembly) is pressed ON
Stop and start system cancel switch (combination switch assembly) is not pressed OFF



Result:
Proceed to
OK
NG



OK

NG

2.INSPECT STOP AND START SYSTEM CANCEL SWITCH (COMBINATION SWITCH ASSEMBLY)
2.INSPECT STOP AND START SYSTEM CANCEL SWITCH (COMBINATION SWITCH ASSEMBLY)

OK

3.CHECK HARNESS AND CONNECTOR (STOP AND START SYSTEM CANCEL SWITCH (COMBINATION SWITCH ASSEMBLY) - BODY GROUND)

NG

3.CHECK HARNESS AND CONNECTOR (STOP AND START SYSTEM CANCEL SWITCH (COMBINATION SWITCH ASSEMBLY) - BODY GROUND)
a.

Disconnect the stop and start system cancel switch (combination switch assembly) connector.


b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition

Click Location & Routing(E28)Location & Routing

Click Connector(E28)Instrument Panel>Instrument Panel Wire / Radio Wiring Sub-Assy / Telephone Computer Wire>Combination Switch Assembly

E28-5 (E) - Body ground Always Below 1 Ω



Result:
Proceed to
OK
NG



OK

4.CHECK HARNESS AND CONNECTOR (ENGINE STOP AND START ECU - STOP AND START SYSTEM CANCEL SWITCH (COMBINATION SWITCH ASSEMBLY))

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

4.CHECK HARNESS AND CONNECTOR (ENGINE STOP AND START ECU - STOP AND START SYSTEM CANCEL SWITCH (COMBINATION SWITCH ASSEMBLY))
a.

Disconnect the engine stop and start ECU connector.


b.

Disconnect the stop and start system cancel switch (combination switch assembly) connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition

Click Location & Routing(A104,E28)Location & Routing

Click Connector(A104)Instrument Panel>Engine Room Main Wire>Engine Stop and Start ECU

Click Connector(E28)Instrument Panel>Instrument Panel Wire / Radio Wiring Sub-Assy / Telephone Computer Wire>Combination Switch Assembly

A104-5 (ECAN) - E28-8 (ECU) Always Below 1 Ω
A104-5 (ECAN) - Body ground and other terminals Always 10 kΩ or higher
E28-8 (ECU) - Body ground and other terminals Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
