RM38N0EC _59 Vehicle Exterior _111834 LIGHTING (EXT) _0509389 HEADLIGHT LEVELING SWITCH A

LIGHTING (EXT) HEADLIGHT LEVELING SWITCH INSTALLATION

PROCEDURE

Hide Display 84152 1.INSTALL HEADLIGHT LEVELING SWITCH

a.

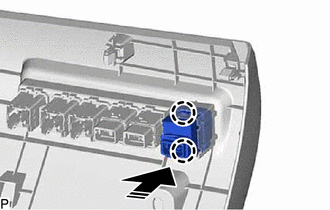

E480291C01

0,0 0,0 false

V113147

Install in this Direction

Engage the 2 claws to install the headlight leveling switch as shown in the illustration.

Hide Display 53601 2.CONNECT HOOD LOCK CONTROL LEVER SUB-ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION202111,202203,_58,_111843,_0501135,RM100000001Z52Z_01_0147,202203,202303,_58,_111843,_0501135,RM10000000226IU_01_0147,202303,999999,_58,_111843,_0501135,RM100000002BEWI_01_0147,

Hide Display 77306 3.CONNECT FUEL LID LOCK OPEN LEVER SUB-ASSEMBLY (for Gasoline Model)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION202111,202203,_58,_111843,_0501135,RM100000001Z52Z_01_0199,202203,202303,_58,_111843,_0501135,RM10000000226IU_01_0199,202303,999999,_58,_111843,_0501135,RM100000002BEWI_01_0199,

Hide Display 55545 4.INSTALL FUSE BOX OPENING COVER

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION202111,202203,_58,_111843,_0501135,RM100000001Z52Z_01_0190,202203,202303,_58,_111843,_0501135,RM10000000226IU_01_0190,202303,999999,_58,_111843,_0501135,RM100000002BEWI_01_0190,

Hide Display 55606 5.INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION202111,202203,_58,_111843,_0501135,RM100000001Z52Z_01_0132,202203,202303,_58,_111843,_0501135,RM10000000226IU_01_0132,202303,999999,_58,_111843,_0501135,RM100000002BEWI_01_0132,

Hide Display 62112A 6.INSTALL COWL SIDE TRIM SUB-ASSEMBLY LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>INSTALLATION202111,202203,_58,_111843,_0501311,RM100000001Z5HC_02_0045,202203,999999,_58,_111843,_0501311,RM1000000022LYM_02_0045,

Hide Display 67914B 7.INSTALL FRONT DOOR SCUFF PLATE LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>INSTALLATION202111,202203,_58,_111843,_0501311,RM100000001Z5HC_02_0047,202203,999999,_58,_111843,_0501311,RM1000000022LYM_02_0047,
