RM38N0EC _59 Vehicle Exterior _111834 LIGHTING (EXT) _0509389 HEADLIGHT LEVELING SWITCH A

LIGHTING (EXT) HEADLIGHT LEVELING SWITCH REMOVAL

PROCEDURE

Hide Display 67914B 1.REMOVE FRONT DOOR SCUFF PLATE LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202111,202203,_58,_111843,_0501311,RM100000001Z5HB_02_0001,202203,202303,_58,_111843,_0501311,RM1000000022FCC_02_0001,202303,202406,_58,_111843,_0501311,RM100000002AMS0_02_0001,202406,999999,_58,_111843,_0501311,RM100000002MT6G_02_0001,

Hide Display 62112A 2.REMOVE COWL SIDE TRIM SUB-ASSEMBLY LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202111,202203,_58,_111843,_0501311,RM100000001Z5HB_02_0003,202203,202303,_58,_111843,_0501311,RM1000000022FCC_02_0003,202303,202406,_58,_111843,_0501311,RM100000002AMS0_02_0003,202406,999999,_58,_111843,_0501311,RM100000002MT6G_02_0003,

Hide Display 55606 3.REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>REMOVAL202111,202203,_58,_111843,_0501135,RM100000001Z52W_01_0006,202203,202303,_58,_111843,_0501135,RM10000000226IL_01_0006,202303,202406,_58,_111843,_0501135,RM100000002AL9I_01_0006,202406,999999,_58,_111843,_0501135,RM100000002MQF5_01_0006,

Hide Display 55545 4.REMOVE FUSE BOX OPENING COVER

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>REMOVAL202111,202203,_58,_111843,_0501135,RM100000001Z52W_01_0071,202203,202303,_58,_111843,_0501135,RM10000000226IL_01_0071,202303,202406,_58,_111843,_0501135,RM100000002AL9I_01_0071,202406,999999,_58,_111843,_0501135,RM100000002MQF5_01_0071,

Hide Display 53601 5.DISCONNECT HOOD LOCK CONTROL LEVER SUB-ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>REMOVAL202111,202203,_58,_111843,_0501135,RM100000001Z52W_01_0112,202203,202303,_58,_111843,_0501135,RM10000000226IL_01_0112,202303,202406,_58,_111843,_0501135,RM100000002AL9I_01_0112,202406,999999,_58,_111843,_0501135,RM100000002MQF5_01_0112,

Hide Display 77306 6.DISCONNECT FUEL LID LOCK OPEN LEVER SUB-ASSEMBLY (for Gasoline Model)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>REMOVAL202111,202203,_58,_111843,_0501135,RM100000001Z52W_01_0134,202203,202303,_58,_111843,_0501135,RM10000000226IL_01_0134,202303,202406,_58,_111843,_0501135,RM100000002AL9I_01_0134,202406,999999,_58,_111843,_0501135,RM100000002MQF5_01_0134,

Hide Display 84152 7.REMOVE HEADLIGHT LEVELING SWITCH

1.979,0.906 2.74,0.521 true 2.781,0.417 3.094,0.615 0.313,0.198 10 false *a

*a	Protective Tape
	Remove in this Direction

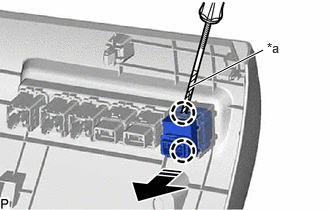

Using a screwdriver with its tip wrapped with protective tape, disengage the 2 claws and remove the headlight leveling switch as shown in the illustration.
