SEAT  CLIMATE CONTROL SEAT SYSTEM  TERMINALS OF ECU


CHECK AIR CONDITIONING AMPLIFIER ASSEMBLY

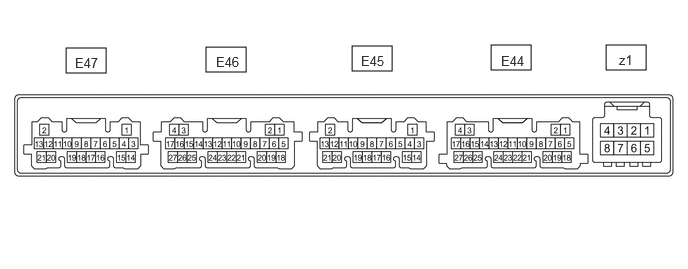

E444901N03
0.688,0.5 1.104,0.76 0.417,0.26 2.146,0.49 2.563,0.75 0.417,0.26 3.667,0.479 4.083,0.74 0.417,0.26 5.115,0.469 5.531,0.729 0.417,0.26 6.313,0.469 6.729,0.729 0.417,0.26 6.448,0.542 6.76,0.74 0.313,0.198 10 false z1 5.219,0.552 5.677,0.75 0.458,0.198 10 false E44 3.76,0.552 4.219,0.75 0.458,0.198 10 false E45 2.25,0.563 2.708,0.76 0.458,0.198 10 false E46 0.781,0.573 1.24,0.771 0.458,0.198 10 false E47

a.

Disconnect the E44 air conditioning amplifier assembly connector.


b.

Measure the voltage and resistance according to the value(s) in the table below.

HINT:

Measure the values on the wire harness side with the connector disconnected.


Terminal No. (Symbol) Terminal Description Condition Specified Condition
E44-6 (IG+) - E44-17 (GND) IG power supply Ignition switch off Below 1 V
E44-6 (IG+) - E44-17 (GND) IG power supply Ignition switch ON 11 to 14 V
E44-5 (B) - E44-17 (GND) Auxiliary battery power supply Ignition switch off*1
Always*2 		11 to 14 V
E44-17 (GND) - Body ground Ground Always Below 1 Ω

*1: for HV Model

*2: for Gasoline Model



c.

Reconnect the E44 air conditioning amplifier assembly connector.


d.

Check for pulses according to the value(s) in the table below.

Terminal No. (Symbol) Terminal Description Condition Specified Condition
E44-14 (LOUT) - Body ground Climate control blower control signal
·

Ignition switch ON

·

Climate control switch (Refreshing seat switch) (for LH) on

(blower position)


Pulse generation
(See waveform)
E44-13 (ROUT) - Body ground Climate control blower control signal
·

Ignition switch ON

·

Climate control switch (Refreshing seat switch) (for RH) on

(blower position)


Pulse generation
(See waveform)
E44-7 (LIN1) - Body ground Climate control switch signal Ignition switch ON Pulse generation

i.
B295627N02
0.156,1.594 0.594,1.833 0.438,0.24 10 false GND

Waveform (Reference):

Measurement Condition
Item Content
Tester Connection
·

E44-14 (LOUT) - Body ground

·

E44-13 (ROUT) - Body ground


Tool Setting 1 V/DIV., 0.5 ms/DIV.
Vehicle Condition
·

Ignition switch ON

·

Climate control switch (Refreshing seat switch) on

(blower position)






CLIMATE CONTROL SWITCH (REFRESHING SEAT SWITCH)


B520623N16
3.51,0.188 3.938,0.427 0.427,0.24 3.615,0.229 4.063,0.542 0.448,0.313 10 false L9

a.

Disconnect the L9 climate control switch (refreshing seat switch) connector.


b.

Measure the voltage and resistance according to the value(s) in the table below.

HINT:

Measure the values on the wire harness side with the connector disconnected.


Terminal No. (Symbol) Terminal Description Condition Specified Condition
L9-9 (IG) - L9-7 (E) IG power supply Ignition switch off Below 1 V
L9-9 (IG) - L9-7 (E) IG power supply Ignition switch ON 11 to 14 V
L9-7 (E) - Body ground Ground Always Below 1 Ω


c.

Reconnect the L9 climate control switch (refreshing seat switch) connector.


d.

Check for pulses according to the value(s) in the table below.

Terminal No. (Symbol) Terminal Description Condition Specified Condition
L9-8 (SLIN) - L9-7 (E) Climate control switch signal Ignition switch ON Pulse generation
