SEAT  CLIMATE CONTROL SEAT SYSTEM  PARTS LOCATION

ILLUSTRATION

2.292,2.448 2.292,1.625 2.292,1.625 2.042,1.625 false 3.823,5.208 3.49,5.208 3.49,5.208 3.49,3.646 false 3.885,5.146 4.135,5.417 0.25,0.271 10 false *1 1.865,1.563 2.156,1.865 0.292,0.302 10 false *2

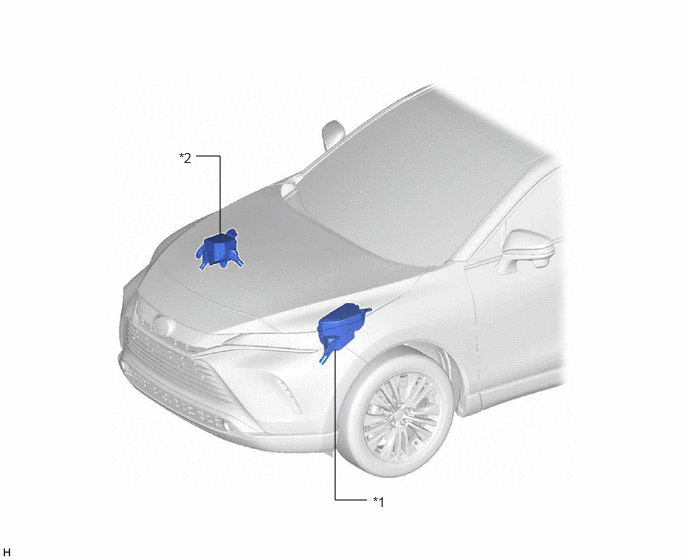

*1

NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 ENGINE ROOM JUNCTION BLOCK ASSEMBLY - ECU-IGP NO. 3 FUSE

*2

NO. 2 ENGINE ROOM RELAY BLOCK AND NO. 2 ENGINE ROOM JUNCTION BLOCK ASSEMBLY - S/HTR F/L FUSE - S/HTR F/R FUSE - S/HTR FR RELAY - S/HTR MAIN FUSE

ILLUSTRATION

2.771,2.792 2.771,1.198 2.771,1.198 3.031,1.198 false 1.427,4.927 1.594,4.927 1.594,4.927 1.594,3.823 false 4.51,5.427 4.271,5.427 4.271,5.427 4.271,3.885 false 3.104,1.104 3.396,1.396 0.292,0.292 10 false *1 4.563,5.354 4.865,5.604 0.302,0.25 10 false *2 1.26,4.865 1.531,5.135 0.271,0.271 10 false *3

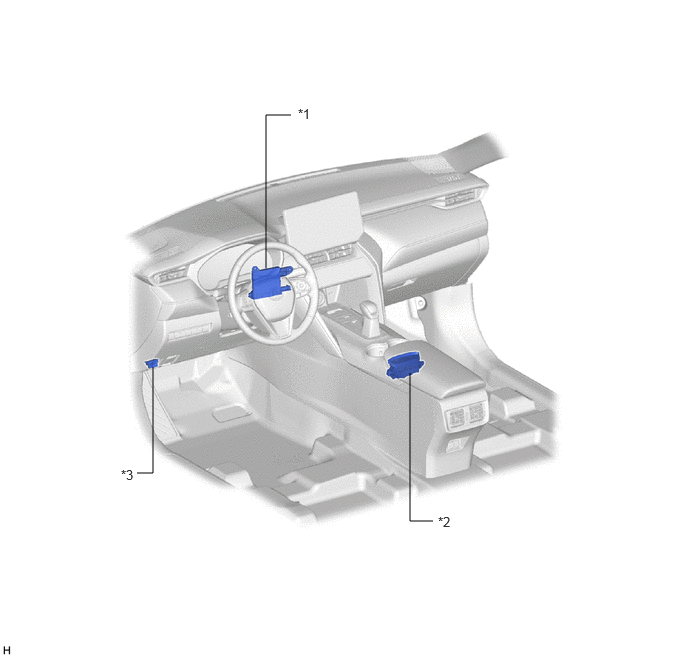

*1	AIR CONDITIONING AMPLIFIER ASSEMBLY	*2	CLIMATE CONTROL SWITCH (REFRESHING SEAT SWITCH)
*3	DLC3	-	-

ILLUSTRATION

3.865,2.052 3.865,0.708 3.865,0.708 4.083,0.708 false 5.344,2.885 5.344,1.542 5.344,1.542 5.563,1.542 false 2.125,5.677 2.344,5.677 2.344,5.677 2.344,4.333 false 3.615,6.333 3.813,6.333 3.813,6.333 3.813,5.167 false 3.438,6.25 3.74,6.521 0.302,0.271 10 false *1 5.625,1.448 5.906,1.698 0.281,0.25 10 false *2 1.938,5.583 2.188,5.844 0.25,0.26 10 false *3 4.146,0.615 4.406,0.896 0.26,0.281 10 false *4

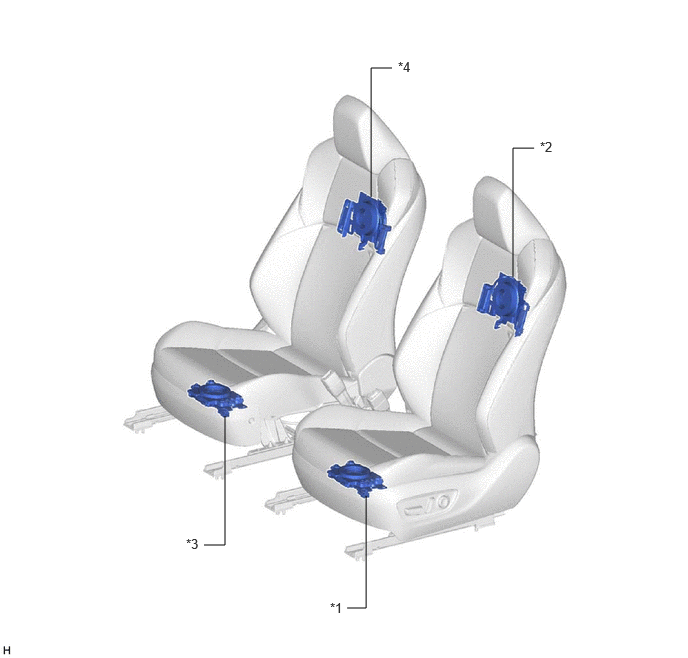

*1	SEAT CUSHION CLIMATE CONTROL BLOWER LH	*2	SEATBACK CLIMATE CONTROL BLOWER LH
*3	SEAT CUSHION CLIMATE CONTROL BLOWER RH	*4	SEATBACK CLIMATE CONTROL BLOWER RH
