SEAT  SEAT HEATER SYSTEM  PARTS LOCATION

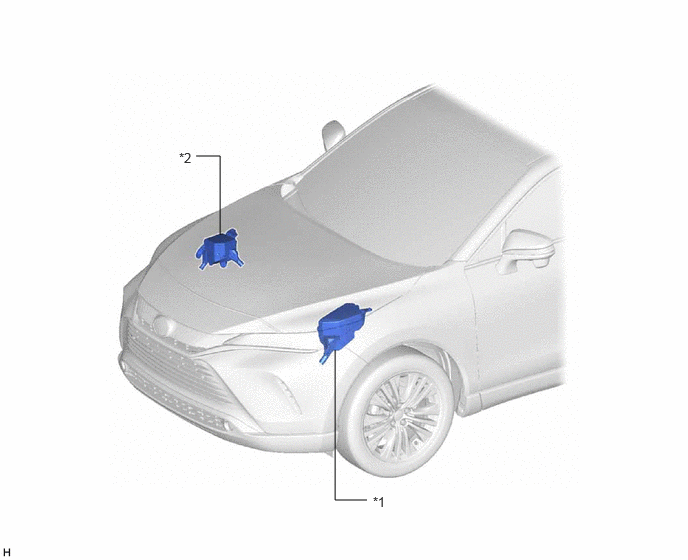

ILLUSTRATION

2.292,2.448 2.292,1.625 2.292,1.625 2.042,1.625 false 3.823,5.208 3.49,5.208 3.49,5.208 3.49,3.646 false 3.885,5.146 4.135,5.417 0.25,0.271 10 false *1 1.865,1.563 2.156,1.865 0.292,0.302 10 false *2

*1

NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 ENGINE ROOM JUNCTION BLOCK ASSEMBLY - ECU-IGP NO. 3 FUSE

*2

NO. 2 ENGINE ROOM RELAY BLOCK AND NO. 2 ENGINE ROOM JUNCTION BLOCK ASSEMBLY - S/HTR F/L FUSE - S/HTR F/R FUSE - S/HTR MAIN FUSE - S/HTR FR RELAY

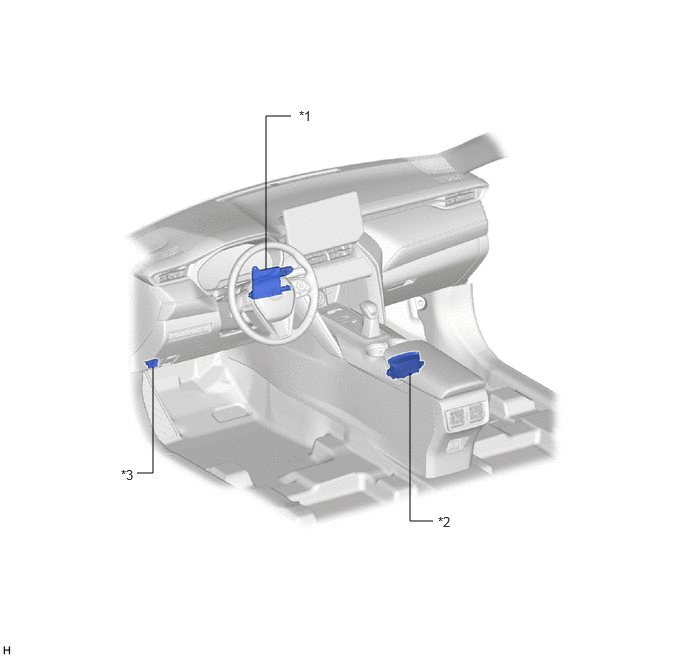

ILLUSTRATION

2.771,2.802 2.771,1.208 2.771,1.208 3.031,1.208 false 1.427,4.927 1.594,4.927 1.594,4.927 1.594,3.823 false 4.51,5.427 4.271,5.427 4.271,5.427 4.271,3.885 false 3.115,1.125 3.406,1.417 0.292,0.292 10 false *1 4.563,5.354 4.865,5.604 0.302,0.25 10 false *2 1.26,4.865 1.531,5.135 0.271,0.271 10 false *3

*1	AIR CONDITIONING AMPLIFIER ASSEMBLY	*2	FRONT SEAT HEATER SWITCH (REFRESHING SEAT SWITCH)
*3	DLC3	-	-

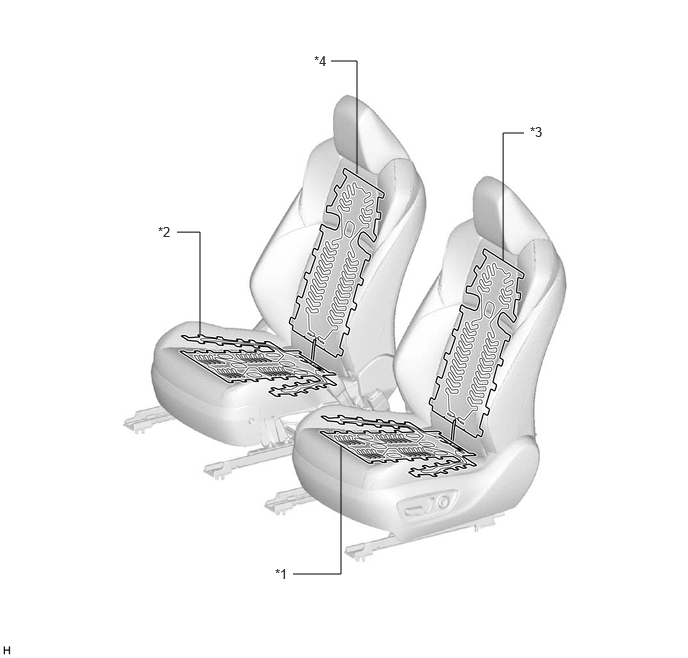

ILLUSTRATION

1.844,2.417 2.083,2.417 2.083,2.417 2.083,3.479 false 3.052,5.979 3.552,5.979 3.552,5.979 3.552,4.646 false 3.448,0.635 3.719,0.635 3.719,0.635 3.719,1.813 false 5.24,2.708 5.24,1.385 5.24,1.385 5.458,1.385 false 2.865,5.896 3.156,6.125 0.292,0.229 10 false *1 1.646,2.333 1.917,2.552 0.271,0.219 10 false *2 5.521,1.292 5.813,1.531 0.292,0.24 10 false *3 3.271,0.552 3.573,0.802 0.302,0.25 10 false *4

*1	FRONT SEAT CUSHION HEATER ASSEMBLY LH	*2	FRONT SEAT CUSHION HEATER ASSEMBLY RH
*3	FRONT SEATBACK HEATER ASSEMBLY LH	*4	FRONT SEATBACK HEATER ASSEMBLY RH
