SEAT  FRONT POWER SEAT CONTROL SYSTEM(w/o Memory)  PARTS LOCATION

ILLUSTRATION

1.385,2.813 1.677,2.813 false 1.24,2.75 1.552,2.99 0.313,0.24 10 false *1

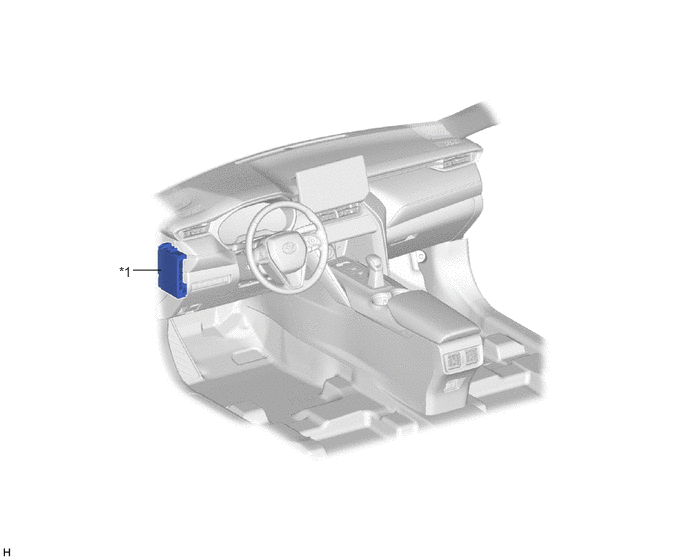

*1

POWER DISTRIBUTION BOX ASSEMBLY - P/SEAT D FUSE - P/SEAT P FUSE

-

-

ILLUSTRATION

2.479,1.396 2.646,1.396 2.646,1.396 4.354,2.771 false 1.531,2.427 1.698,2.427 1.698,2.427 3.75,3.615 false 2.688,3.854 2.979,3.854 false 4.25,3.896 4.25,4.438 4.25,4.438 4.479,4.438 false 4.771,3.708 4.771,4.271 4.771,4.271 4.969,4.271 false 5.115,1.823 5.115,1.188 5.115,1.188 5.344,1.188 false 5.063,2.219 5.594,2.031 5.594,2.031 5.792,2.031 false 2.75,4.469 3.021,4.469 3.021,4.469 4.01,3.74 false 2.531,3.792 2.958,4.094 0.427,0.302 10 false *5 5.385,1.125 5.792,1.469 0.406,0.344 10 false *6 5.833,1.948 6.24,2.208 0.406,0.26 10 false *7 4.521,4.375 4.917,4.656 0.396,0.281 10 false *8 5.042,4.208 5.375,4.458 0.333,0.25 10 false *4 2.594,4.396 2.833,4.583 0.24,0.188 10 false *3 2.292,1.302 2.719,1.573 0.427,0.271 10 false *2 1.323,2.333 1.688,2.635 0.365,0.302 10 false *1 0.271,0.229 0.698,0.5 0.427,0.271 12 false *A

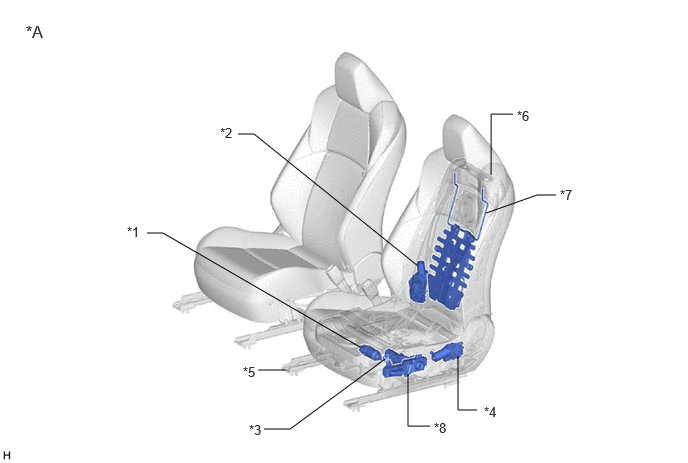

*A	for Driver Seat	-	-
*1	SLIDE MOTOR	*2	RECLINING MOTOR
*3	FRONT VERTICAL MOTOR	*4	LIFTER MOTOR
*5	FRONT SEAT ADJUSTER ASSEMBLY RH	*6	FRONT SEATBACK FRAME SUB-ASSEMBLY RH
*7	LUMBAR SUPPORT ADJUSTER ASSEMBLY RH	*8	FRONT POWER SEAT SWITCH RH

ILLUSTRATION

4.167,3.854 4.427,3.854 false 2.771,2.719 2.771,0.76 2.771,0.76 2.49,0.76 false 3.323,3.698 3.854,4.313 3.854,4.313 4.063,4.313 false 1.969,1.865 1.969,1.385 1.969,1.385 1.781,1.385 false 3.031,3.917 3.031,4.406 3.031,4.406 2.865,4.406 false 0.323,0.302 0.625,0.625 0.302,0.323 12 false *A 4.125,4.219 4.458,4.5 0.333,0.281 10 false *1 2.313,0.667 2.625,0.948 0.313,0.281 10 false *2 4.469,3.781 4.729,4 0.26,0.219 10 false *3 1.594,1.292 1.854,1.521 0.26,0.229 10 false *4 2.688,4.323 2.958,4.583 0.271,0.26 10 false *5

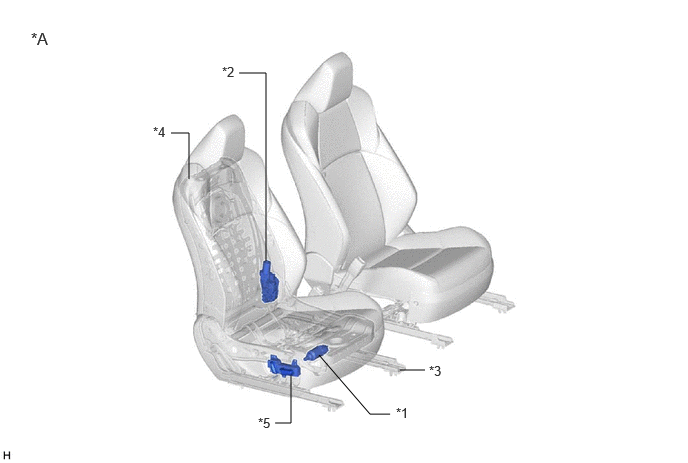

*A	for Front Passenger Seat	-	-
*1	SLIDE MOTOR	*2	RECLINING MOTOR
*3	FRONT SEAT ADJUSTER ASSEMBLY LH	*4	FRONT SEATBACK FRAME SUB-ASSEMBLY LH
*5	FRONT POWER SEAT SWITCH LH	-	-
