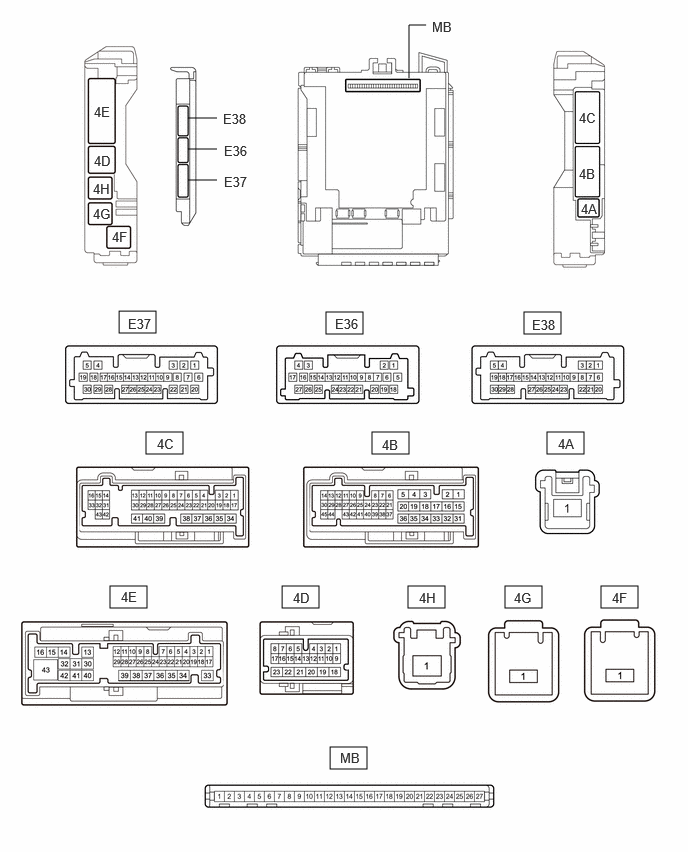

WINDOW / GLASS POWER WINDOW CONTROL SYSTEM TERMINALS OF ECU
CHECK MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY
3.354,0.083 3.76,0.323
0.406,0.24
3.5,0.115 3.792,0.313
0.292,0.198
10
false
I2
a.
Disconnect the I2 multiplex network master switch assembly connector.
b.
Measure the voltage and resistance according to the value(s) in the table below.
- HINT:
-
Measure the values on the wire harness side with the connector disconnected.
| Terminal No. (Symbol) | Terminal Description | Condition | Specified Condition |
|---|---|---|---|
| I2-11 (B) - I2-12 (GND) | Power supply | Always*1
Ignition switch off*2 |
11 to 14 V |
| I2-12 (GND) - Body ground | Ground | Always | Below 1 Ω |
*1: for Gasoline Model
*2: for HV Model
c.
Reconnect the I2 multiplex network master switch assembly connector.
d.
Measure the voltage according to the value(s) in the table below.
| Terminal No. (Symbol) | Terminal Description | Condition | Specified Condition |
|---|---|---|---|
| I2-15 (DOWN) - I2-12 (GND) | Power window motor DOWN output | Ignition switch ON, driver door power window regulator switch not pushed or not pulled | 11 to 14 V |
| I2-15 (DOWN) - I2-12 (GND) | Power window motor DOWN output | Ignition switch ON, driver door power window moving, driver door power window regulator switch pushed halfway down (Manual operation) | Below 1 V |
| I2-20 (UP) - I2-12 (GND) | Power window motor UP output | Ignition switch ON, driver door power window regulator switch not pushed or not pulled | 11 to 14 V |
| I2-20 (UP) - I2-12 (GND) | Power window motor UP output | Ignition switch ON, driver door power window moving, driver door power window regulator switch pulled halfway up (Manual operation) | Below 1 V |
CHECK POWER WINDOW REGULATOR SWITCH ASSEMBLY
3.365,0.208 3.781,0.479
0.417,0.271
3.521,0.26 3.833,0.458
0.313,0.198
10
false
I3
a.
Disconnect the I3 power window regulator switch assembly connector.
b.
Measure the resistance according to the value(s) in the table below.
- HINT:
-
Measure the values on the wire harness side with the connector disconnected.
| Terminal No. (Symbol) | Terminal Description | Condition | Specified Condition |
|---|---|---|---|
| I3-7 (GND) - Body ground | Ground | Always | Below 1 Ω |
c.
Reconnect the I3 power window regulator switch assembly connector.
d.
Measure the voltage according to the value(s) in the table below.
| Terminal No. (Symbol) | Terminal Description | Condition | Specified Condition |
|---|---|---|---|
| I3-5 (UP) - I3-7 (GND) | Power window motor UP output | Ignition switch ON, power window regulator switch assembly not pushed or not pulled | 11 to 14 V |
| I3-5 (UP) - I3-7 (GND) | Power window motor UP output | Ignition switch ON, front passenger door power window moving, power window regulator switch assembly pulled halfway up (Manual operation) | Below 1 V |
| I3-5 (UP) - I3-7 (GND) | Power window motor UP output | Ignition switch ON, front passenger door power window fully open | 11 to 14 V |
| I3-5 (UP) - I3-7 (GND) | Power window motor UP output | Ignition switch ON, front passenger door power window moving, power window regulator switch assembly fully pulled up (Auto operation) | Below 1 V |
| I3-5 (UP) - I3-7 (GND) | Power window motor UP output | Ignition switch ON, front passenger door power window fully closed | 11 to 14 V |
| I3-4 (DOWN) - I3-7 (GND) | Power window motor DOWN output | Ignition switch ON, power window regulator switch assembly not pushed or not pulled | 11 to 14 V |
| I3-4 (DOWN) - I3-7 (GND) | Power window motor DOWN output | Ignition switch ON, front passenger door power window moving, power window regulator switch assembly pushed halfway down (Manual operation) | Below 1 V |
| I3-4 (DOWN) - I3-7 (GND) | Power window motor DOWN output | Ignition switch ON, front passenger door power window fully closed | 11 to 14 V |
| I3-4 (DOWN) - I3-7 (GND) | Power window motor DOWN output | Ignition switch ON, front passenger door power window moving, power window regulator switch assembly fully pushed down (Auto operation) | Below 1 V |
| I3-4 (DOWN) - I3-7 (GND) | Power window motor DOWN output | Ignition switch ON, front passenger door power window fully open | 11 to 14 V |
| I3-8 (AUTO) - I3-7 (GND) | Power window motor AUTO UP output | Ignition switch ON, front passenger door power window fully open | 11 to 14 V |
| I3-8 (AUTO) - I3-7 (GND) | Power window motor AUTO UP output | Ignition switch ON, front passenger door power window moving, power window regulator switch assembly fully pulled up (Auto operation) | Below 1 V |
| I3-8 (AUTO) - I3-7 (GND) | Power window motor AUTO UP output | Ignition switch ON, front passenger door power window fully closed | 11 to 14 V |
| I3-8 (AUTO) - I3-7 (GND) | Power window motor AUTO DOWN output | Ignition switch ON, front passenger door power window fully closed | 11 to 14 V |
| I3-8 (AUTO) - I3-7 (GND) | Power window motor AUTO DOWN output | Ignition switch ON, front passenger door power window moving, power window regulator switch assembly fully pushed down (Auto operation) | Below 1 V |
| I3-8 (AUTO) - I3-7 (GND) | Power window motor AUTO DOWN output | Ignition switch ON, front passenger door power window fully open | 11 to 14 V |
CHECK REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY (FOR LH DOOR)
3.375,0.208 3.792,0.479
0.417,0.271
3.51,0.26 3.823,0.458
0.313,0.198
10
false
J1
a.
Disconnect the J1 rear power window regulator switch assembly (for LH door) connector.
b.
Measure the resistance according to the value(s) in the table below.
- HINT:
-
Measure the values on the wire harness side with the connector disconnected.
| Terminal No. (Symbol) | Terminal Description | Condition | Specified Condition |
|---|---|---|---|
| J1-7 (GND) - Body ground | Ground | Always | Below 1 Ω |
c.
Reconnect the J1 rear power window regulator switch assembly (for LH door) connector.
d.
Measure the voltage according to the value(s) in the table below.
| Terminal No. (Symbol) | Terminal Description | Condition | Specified Condition |
|---|---|---|---|
| J1-5 (UP) - J1-7 (GND) | Power window motor UP output | Ignition switch ON, rear power window regulator switch assembly (for LH door) not pushed or not pulled | 11 to 14 V |
| J1-5 (UP) - J1-7 (GND) | Power window motor UP output | Ignition switch ON, rear LH door power window moving, rear power window regulator switch assembly (for LH door) pulled halfway up (Manual operation) | Below 1 V |
| J1-5 (UP) - J1-7 (GND) | Power window motor UP output | Ignition switch ON, rear LH door power window fully open | 11 to 14 V |
| J1-5 (UP) - J1-7 (GND) | Power window motor UP output | Ignition switch ON, rear LH door power window moving, rear power window regulator switch assembly (for LH door) fully pulled up (Auto operation) | Below 1 V |
| J1-5 (UP) - J1-7 (GND) | Power window motor UP output | Ignition switch ON, rear LH door power window fully closed | 11 to 14 V |
| J1-4 (DOWN) - J1-7 (GND) | Power window motor DOWN output | Ignition switch ON, rear power window regulator switch assembly (for LH door) not pushed or not pulled | 11 to 14 V |
| J1-4 (DOWN) - J1-7 (GND) | Power window motor DOWN output | Ignition switch ON, rear LH door power window moving, rear power window regulator switch assembly (for LH door) pushed halfway down (Manual operation) | Below 1 V |
| J1-4 (DOWN) - J1-7 (GND) | Power window motor DOWN output | Ignition switch ON, rear LH door power window fully closed | 11 to 14 V |
| J1-4 (DOWN) - J1-7 (GND) | Power window motor DOWN output | Ignition switch ON, rear LH door power window moving, rear power window regulator switch assembly (for LH door) fully pushed down (Auto operation) | Below 1 V |
| J1-4 (DOWN) - J1-7 (GND) | Power window motor DOWN output | Ignition switch ON, rear LH door power window fully open | 11 to 14 V |
| J1-8 (AUTO) - J1-7 (GND) | Power window motor AUTO UP output | Ignition switch ON, rear LH door power window fully open | 11 to 14 V |
| J1-8 (AUTO) - J1-7 (GND) | Power window motor AUTO UP output | Ignition switch ON, rear LH door power window moving, rear power window regulator switch assembly (for LH door) fully pulled up (Auto operation) | Below 1 V |
| J1-8 (AUTO) - J1-7 (GND) | Power window motor AUTO UP output | Ignition switch ON, rear LH door power window fully closed | 11 to 14 V |
| J1-8 (AUTO) - J1-7 (GND) | Power window motor AUTO DOWN output | Ignition switch ON, rear LH door power window fully closed | 11 to 14 V |
| J1-8 (AUTO) - J1-7 (GND) | Power window motor AUTO DOWN output | Ignition switch ON, rear LH door power window moving, rear power window regulator switch assembly (for LH door) fully pushed down (Auto operation) | Below 1 V |
| J1-8 (AUTO) - J1-7 (GND) | Power window motor AUTO DOWN output | Ignition switch ON, rear LH door power window fully open | 11 to 14 V |
CHECK REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY (FOR RH DOOR)
3.385,0.208 3.802,0.479
0.417,0.271
3.521,0.26 3.833,0.458
0.313,0.198
10
false
J2
a.
Disconnect the J2 rear power window regulator switch assembly (for RH door) connector.
b.
Measure the resistance according to the value(s) in the table below.
- HINT:
-
Measure the values on the wire harness side with the connector disconnected.
| Terminal No. (Symbol) | Terminal Description | Condition | Specified Condition |
|---|---|---|---|
| J2-7 (GND) - Body ground | Ground | Always | Below 1 Ω |
c.
Reconnect the J2 rear power window regulator switch assembly (for RH door) connector.
d.
Measure the voltage according to the value(s) in the table below.
| Terminal No. (Symbol) | Terminal Description | Condition | Specified Condition |
|---|---|---|---|
| J2-5 (UP) - J2-7 (GND) | Power window motor UP output | Ignition switch ON, rear power window regulator switch assembly (for RH door) not pushed or not pulled | 11 to 14 V |
| J2-5 (UP) - J2-7 (GND) | Power window motor UP output | Ignition switch ON, rear RH door power window moving, rear power window regulator switch assembly (for RH door) pulled halfway up (Manual operation) | Below 1 V |
| J2-5 (UP) - J2-7 (GND) | Power window motor UP output | Ignition switch ON, rear RH door power window fully open | 11 to 14 V |
| J2-5 (UP) - J2-7 (GND) | Power window motor UP output | Ignition switch ON, rear RH door power window moving, rear power window regulator switch assembly (for RH door) fully pulled up (Auto operation) | Below 1 V |
| J2-5 (UP) - J2-7 (GND) | Power window motor UP output | Ignition switch ON, rear RH door power window fully closed | 11 to 14 V |
| J2-4 (DOWN) - J2-7 (GND) | Power window motor DOWN output | Ignition switch ON, rear power window regulator switch assembly (for RH door) not pushed or not pulled | 11 to 14 V |
| J2-4 (DOWN) - J2-7 (GND) | Power window motor DOWN output | Ignition switch ON, rear RH door power window moving, rear power window regulator switch assembly (for RH door) pushed halfway down (Manual operation) | Below 1 V |
| J2-4 (DOWN) - J2-7 (GND) | Power window motor DOWN output | Ignition switch ON, rear RH door power window fully closed | 11 to 14 V |
| J2-4 (DOWN) - J2-7 (GND) | Power window motor DOWN output | Ignition switch ON, rear RH door power window moving, rear power window regulator switch assembly (for RH door) fully pushed down (Auto operation) | Below 1 V |
| J2-4 (DOWN) - J2-7 (GND) | Power window motor DOWN output | Ignition switch ON, rear RH door power window fully open | 11 to 14 V |
| J2-8 (AUTO) - J2-7 (GND) | Power window motor AUTO UP output | Ignition switch ON, rear RH door power window fully open | 11 to 14 V |
| J2-8 (AUTO) - J2-7 (GND) | Power window motor AUTO UP output | Ignition switch ON, rear RH door power window moving, rear power window regulator switch assembly (for RH door) fully pulled up (Auto operation) | Below 1 V |
| J2-8 (AUTO) - J2-7 (GND) | Power window motor AUTO UP output | Ignition switch ON, rear RH door power window fully closed | 11 to 14 V |
| J2-8 (AUTO) - J2-7 (GND) | Power window motor AUTO DOWN output | Ignition switch ON, rear RH door power window fully closed | 11 to 14 V |
| J2-8 (AUTO) - J2-7 (GND) | Power window motor AUTO DOWN output | Ignition switch ON, rear RH door power window moving, rear power window regulator switch assembly (for RH door) fully pushed down (Auto operation) | Below 1 V |
| J2-8 (AUTO) - J2-7 (GND) | Power window motor AUTO DOWN output | Ignition switch ON, rear RH door power window fully open | 11 to 14 V |
CHECK POWER WINDOW REGULATOR MOTOR ASSEMBLY (FOR DRIVER DOOR)
2.156,0.823 2.552,1.063
0.396,0.24
2.25,0.865 2.573,1.083
0.323,0.219
10
false
G4
a.
Disconnect the G4 power window regulator motor assembly (for driver door) connector.
b.
Measure the voltage and resistance according to the value(s) in the table below.
- HINT:
-
Measure the values on the wire harness side with the connector disconnected.
| Terminal No. (Symbol) | Terminal Description | Condition | Specified Condition |
|---|---|---|---|
| G4-1 (GND) - Body ground | Ground | Always | Below 1 Ω |
| G4-2 (B) - Body ground | Power supply | Always*1
Ignition switch off*2 |
11 to 14 V |
*1: for Gasoline Model
*2: for HV Model
c.
Reconnect the G4 power window regulator motor assembly (for driver door) connector.
d.
Measure the voltage according to the value(s) in the table below.
| Terminal No. (Symbol) | Terminal Description | Condition | Specified Condition |
|---|---|---|---|
| G4-7 (DOWN) - G4-1 (GND) | Power window motor DOWN input | Ignition switch ON, multiplex network master switch assembly (driver door power window regulator switch) not pushed or not pulled | 11 to 14 V |
| G4-7 (DOWN) - G4-1 (GND) | Power window motor DOWN input | Ignition switch ON, driver door power window moving, multiplex network master switch assembly (driver door power window regulator switch) pushed halfway down (Manual operation) | Below 1 V |
| G4-7 (DOWN) - G4-1 (GND) | Power window motor DOWN input | Ignition switch ON, driver door power window fully closed | 11 to 14 V |
| G4-7 (DOWN) - G4-1 (GND) | Power window motor DOWN input | Ignition switch ON, driver door power window moving, multiplex network master switch assembly (driver door power window regulator switch) fully pushed down (Auto operation) | Below 1 V |
| G4-7 (DOWN) - G4-1 (GND) | Power window motor DOWN input | Ignition switch ON, driver door power window fully open | 11 to 14 V |
| G4-10 (UP) - G4-1 (GND) | Power window motor UP input | Ignition switch ON, multiplex network master switch assembly (driver door power window regulator switch) not pushed or not pulled | 11 to 14 V |
| G4-10 (UP) - G4-1 (GND) | Power window motor UP input | Ignition switch ON, driver door power window moving, multiplex network master switch assembly (driver door power window regulator switch) pulled halfway up (Manual operation) | Below 1 V |
| G4-10 (UP) - G4-1 (GND) | Power window motor UP input | Ignition switch ON, multiplex network master switch assembly (driver door power window regulator switch) fully open | 11 to 14 V |
| G4-10 (UP) - G4-1 (GND) | Power window motor UP input | Ignition switch ON, driver door power window moving, multiplex network master switch assembly (driver door power window regulator switch) fully pulled up (Auto operation) | Below 1 V |
| G4-10 (UP) - G4-1 (GND) | Power window motor UP input | Ignition switch ON, driver door power window fully closed | 11 to 14 V |
CHECK POWER WINDOW REGULATOR MOTOR ASSEMBLY (FOR FRONT PASSENGER DOOR)
2.125,0.802 2.521,1.042
0.396,0.24
2.219,0.833 2.635,1.042
0.417,0.208
10
false
G5
a.
Disconnect the G5 power window regulator motor assembly (for front passenger door) connector.
b.
Measure the voltage and resistance according to the value(s) in the table below.
- HINT:
-
Measure the values on the wire harness side with the connector disconnected.
| Terminal No. (Symbol) | Terminal Description | Condition | Specified Condition |
|---|---|---|---|
| G5-1 (GND) - Body ground | Ground | Always | Below 1 Ω |
| G5-2 (B) - Body ground | Power supply | Always*1
Ignition switch off*2 |
11 to 14 V |
*1: for Gasoline Model
*2: for HV Model
c.
Reconnect the G5 power window regulator motor assembly (for front passenger door) connector.
d.
Measure the voltage according to the value(s) in the table below.
| Terminal No. (Symbol) | Terminal Description | Condition | Specified Condition |
|---|---|---|---|
| G5-4 (AUTO) - G5-1 (GND) | Power window motor AUTO UP input | Ignition switch ON, front passenger door power window fully open | 11 to 14 V |
| G5-4 (AUTO) - G5-1 (GND) | Power window motor AUTO UP input | Ignition switch ON, front passenger door power window moving, power window regulator switch assembly fully pulled up (Auto operation) | Below 1 V |
| G5-4 (AUTO) - G5-1 (GND) | Power window motor AUTO UP input | Ignition switch ON, front passenger door power window fully closed | 11 to 14 V |
| G5-4 (AUTO) - G5-1 (GND) | Power window motor AUTO DOWN input | Ignition switch ON, front passenger door power window fully closed | 11 to 14 V |
| G5-4 (AUTO) - G5-1 (GND) | Power window motor AUTO DOWN input | Ignition switch ON, front passenger door power window moving, power window regulator switch assembly fully pushed down (Auto operation) | Below 1 V |
| G5-4 (AUTO) - G5-1 (GND) | Power window motor AUTO DOWN input | Ignition switch ON, front passenger door power window fully open | 11 to 14 V |
| G5-7 (DOWN) - G5-1 (GND) | Power window motor DOWN input | Ignition switch ON, power window regulator switch assembly not pushed or not pulled | 11 to 14 V |
| G5-7 (DOWN) - G5-1 (GND) | Power window motor DOWN input | Ignition switch ON, front passenger door power window moving, power window regulator switch assembly pushed halfway down (Manual operation) | Below 1 V |
| G5-7 (DOWN) - G5-1 (GND) | Power window motor DOWN input | Ignition switch ON, front passenger door power window fully closed | 11 to 14 V |
| G5-7 (DOWN) - G5-1 (GND) | Power window motor DOWN input | Ignition switch ON, front passenger door power window moving, power window regulator switch assembly fully pushed down (Auto operation) | Below 1 V |
| G5-7 (DOWN) - G5-1 (GND) | Power window motor DOWN input | Ignition switch ON, front passenger door power window fully open | 11 to 14 V |
| G5-10 (UP) - G5-1 (GND) | Power window motor UP input | Ignition switch ON, power window regulator switch assembly not pushed or not pulled | 11 to 14 V |
| G5-10 (UP) - G5-1 (GND) | Power window motor UP input | Ignition switch ON, front passenger door power window moving, power window regulator switch assembly pulled halfway up (Manual operation) | Below 1 V |
| G5-10 (UP) - G5-1 (GND) | Power window motor UP input | Ignition switch ON, front passenger door power window fully open | 11 to 14 V |
| G5-10 (UP) - G5-1 (GND) | Power window motor UP input | Ignition switch ON, front passenger door power window moving, power window regulator switch assembly fully pulled up (Auto operation) | Below 1 V |
| G5-10 (UP) - G5-1 (GND) | Power window motor UP input | Ignition switch ON, front passenger door power window fully closed | 11 to 14 V |
CHECK POWER WINDOW REGULATOR MOTOR ASSEMBLY (FOR REAR LH DOOR)
2.167,0.75 2.583,1
0.417,0.25
2.302,0.792 2.688,1
0.385,0.208
10
false
H6
a.
Disconnect the H6 power window regulator motor assembly (for rear LH door) connector.
b.
Measure the voltage and resistance according to the value(s) in the table below.
- HINT:
-
Measure the values on the wire harness side with the connector disconnected.
| Terminal No. (Symbol) | Terminal Description | Condition | Specified Condition |
|---|---|---|---|
| H6-1 (GND) - Body ground | Ground | Always | Below 1 Ω |
| H6-2 (B) - Body ground | Power supply | Always*1
Ignition switch off*2 |
11 to 14 V |
*1: for Gasoline Model
*2: for HV Model
c.
Reconnect the H6 power window regulator motor assembly (for rear LH door) connector.
d.
Measure the voltage according to the value(s) in the table below.
| Terminal No. (Symbol) | Terminal Description | Condition | Specified Condition |
|---|---|---|---|
| H6-4 (AUTO) - H6-1 (GND) | Power window motor AUTO UP input | Ignition switch ON, rear LH door power window fully open | 11 to 14 V |
| H6-4 (AUTO) - H6-1 (GND) | Power window motor AUTO UP input | Ignition switch ON, rear LH door power window moving, rear power window regulator switch assembly (for LH door) fully pulled up (Auto operation) | Below 1 V |
| H6-4 (AUTO) - H6-1 (GND) | Power window motor AUTO UP input | Ignition switch ON, rear LH door power window fully closed | 11 to 14 V |
| H6-4 (AUTO) - H6-1 (GND) | Power window motor AUTO DOWN input | Ignition switch ON, rear LH door power window fully closed | 11 to 14 V |
| H6-4 (AUTO) - H6-1 (GND) | Power window motor AUTO DOWN input | Ignition switch ON, rear LH door power window moving, rear power window regulator switch assembly (for LH door) fully pushed down (Auto operation) | Below 1 V |
| H6-4 (AUTO) - H6-1 (GND) | Power window motor AUTO DOWN input | Ignition switch ON, rear LH door power window fully open | 11 to 14 V |
| H6-7 (DOWN) - H6-1 (GND) | Power window motor DOWN input | Ignition switch ON, rear power window regulator switch assembly (for LH door) not pushed or not pulled | 11 to 14 V |
| H6-7 (DOWN) - H6-1 (GND) | Power window motor DOWN input | Ignition switch ON, rear LH door power window moving, rear power window regulator switch assembly (for LH door) pushed halfway down (Manual operation) | Below 1 V |
| H6-7 (DOWN) - H6-1 (GND) | Power window motor DOWN input | Ignition switch ON, rear LH door power window fully closed | 11 to 14 V |
| H6-7 (DOWN) - H6-1 (GND) | Power window motor DOWN input | Ignition switch ON, rear LH door power window moving, rear power window regulator switch assembly (for LH door) fully pushed down (Auto operation) | Below 1 V |
| H6-7 (DOWN) - H6-1 (GND) | Power window motor DOWN input | Ignition switch ON, rear LH door power window fully open | 11 to 14 V |
| H6-10 (UP) - H6-1 (GND) | Power window motor UP input | Ignition switch ON, rear power window regulator switch assembly (for LH door) not pushed or not pulled | 11 to 14 V |
| H6-10 (UP) - H6-1 (GND) | Power window motor UP input | Ignition switch ON, rear LH door power window moving, rear power window regulator switch assembly (for LH door) pulled halfway up (Manual operation) | Below 1 V |
| H6-10 (UP) - H6-1 (GND) | Power window motor UP input | Ignition switch ON, rear LH door power window fully open | 11 to 14 V |
| H6-10 (UP) - H6-1 (GND) | Power window motor UP input | Ignition switch ON, rear LH door power window moving, rear power window regulator switch assembly (for LH door) fully pulled up (Auto operation) | Below 1 V |
| H6-10 (UP) - H6-1 (GND) | Power window motor UP input | Ignition switch ON, rear LH door power window fully closed | 11 to 14 V |
CHECK POWER WINDOW REGULATOR MOTOR ASSEMBLY (FOR REAR RH DOOR)
2.219,0.771 2.615,1.01
0.396,0.24
2.344,0.802 2.656,1.042
0.313,0.24
10
false
H5
a.
Disconnect the H5 power window regulator motor assembly (for rear RH door) connector.
b.
Measure the voltage and resistance according to the value(s) in the table below.
- HINT:
-
Measure the values on the wire harness side with the connector disconnected.
| Terminal No. (Symbol) | Terminal Description | Condition | Specified Condition |
|---|---|---|---|
| H5-1 (GND) - Body ground | Ground | Always | Below 1 Ω |
| H5-2 (B) - Body ground | Power supply | Always*1
Ignition switch off*2 |
11 to 14 V |
*1: for Gasoline Model
*2: for HV Model
c.
Reconnect the H5 power window regulator motor assembly (for rear RH door) connector.
d.
Measure the voltage according to the value(s) in the table below.
| Terminal No. (Symbol) | Terminal Description | Condition | Specified Condition |
|---|---|---|---|
| H5-4 (AUTO) - H5-1 (GND) | Power window motor AUTO UP input | Ignition switch ON, rear RH door power window fully open | 11 to 14 V |
| H5-4 (AUTO) - H5-1 (GND) | Power window motor AUTO UP input | Ignition switch ON, rear RH door power window moving, rear power window regulator switch assembly (for RH door) fully pulled up (Auto operation) | Below 1 V |
| H5-4 (AUTO) - H5-1 (GND) | Power window motor AUTO UP input | Ignition switch ON, rear RH door power window fully closed | 11 to 14 V |
| H5-4 (AUTO) - H5-1 (GND) | Power window motor AUTO DOWN input | Ignition switch ON, rear RH door power window fully closed | 11 to 14 V |
| H5-4 (AUTO) - H5-1 (GND) | Power window motor AUTO DOWN input | Ignition switch ON, rear RH door power window moving, rear power window regulator switch assembly (for RH door) fully pushed down (Auto operation) | Below 1 V |
| H5-4 (AUTO) - H5-1 (GND) | Power window motor AUTO DOWN input | Ignition switch ON, rear RH door power window fully open | 11 to 14 V |
| H5-7 (DOWN) - H5-1 (GND) | Power window motor DOWN input | Ignition switch ON, rear power window regulator switch assembly (for RH door) not pushed or not pulled | 11 to 14 V |
| H5-7 (DOWN) - H5-1 (GND) | Power window motor DOWN input | Ignition switch ON, rear RH door power window moving, rear power window regulator switch assembly (for RH door) pushed halfway down (Manual operation) | Below 1 V |
| H5-7 (DOWN) - H5-1 (GND) | Power window motor DOWN input | Ignition switch ON, rear RH door power window fully closed | 11 to 14 V |
| H5-7 (DOWN) - H5-1 (GND) | Power window motor DOWN input | Ignition switch ON, rear RH door power window moving, rear power window regulator switch assembly (for RH door) fully pushed down (Auto operation) | Below 1 V |
| H5-7 (DOWN) - H5-1 (GND) | Power window motor DOWN input | Ignition switch ON, rear RH door power window fully open | 11 to 14 V |
| H5-10 (UP) - H5-1 (GND) | Power window motor UP input | Ignition switch ON, rear power window regulator switch assembly (for RH door) not pushed or not pulled | 11 to 14 V |
| H5-10 (UP) - H5-1 (GND) | Power window motor UP input | Ignition switch ON, rear RH door power window moving, rear power window regulator switch assembly (for RH door) pulled halfway up (Manual operation) | Below 1 V |
| H5-10 (UP) - H5-1 (GND) | Power window motor UP input | Ignition switch ON, rear RH door power window fully open | 11 to 14 V |
| H5-10 (UP) - H5-1 (GND) | Power window motor UP input | Ignition switch ON, rear RH door power window moving, rear power window regulator switch assembly (for RH door) fully pulled up (Auto operation) | Below 1 V |
| H5-10 (UP) - H5-1 (GND) | Power window motor UP input | Ignition switch ON, rear RH door power window fully closed | 11 to 14 V |
CHECK POWER DISTRIBUTION BOX ASSEMBLY AND MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)
3.396,3.25 3.781,3.479
0.385,0.229
1.521,4.5 1.906,4.729
0.385,0.229
3.875,4.5 4.26,4.729
0.385,0.229
5.698,4.5 6.083,4.729
0.385,0.229
1.146,6.104 1.531,6.333
0.385,0.229
2.938,6.104 3.323,6.333
0.385,0.229
4.25,6.104 4.635,6.333
0.385,0.229
3.438,7.781 3.823,8.01
0.385,0.229
1.24,3.24 1.625,3.469
0.385,0.229
5.26,6.104 5.646,6.333
0.385,0.229
6.26,6.104 6.646,6.333
0.385,0.229
5.458,3.25 5.844,3.479
0.385,0.229
1.958,1.229 2.26,1.229
false
4.26,0.813 4.26,0.26
4.26,0.26 4.438,0.26
false
1.958,1.552 2.26,1.552
false
1.958,1.875 2.26,1.875
false
0.969,1.885 1.281,2.083
0.313,0.198
10
false
4H
1.167,2.385 1.479,2.583
0.313,0.198
10
false
4F
0.979,1.083 1.292,1.281
0.313,0.198
10
false
4E
0.979,1.594 1.292,1.792
0.313,0.198
10
false
4D
6.052,2.094 6.365,2.292
0.313,0.198
10
false
4A
2.333,1.49 2.792,1.688
0.458,0.198
10
false
E36
2.333,1.813 2.792,2.01
0.458,0.198
10
false
E37
4.5,0.198 4.885,0.385
0.385,0.188
10
false
MB
1.333,3.292 1.802,3.5
0.469,0.208
10
false
E37
3.49,3.292 3.948,3.49
0.458,0.198
10
false
E36
3.052,6.146 3.51,6.344
0.458,0.198
10
false
4D
5.813,4.542 6.271,4.74
0.458,0.198
10
false
4A
3.542,7.813 4,8.01
0.458,0.198
10
false
MB
6.031,1.729 6.344,1.927
0.313,0.198
10
false
4B
6.031,1.146 6.344,1.344
0.313,0.198
10
false
4C
0.969,2.146 1.281,2.344
0.313,0.198
10
false
4G
3.979,4.552 4.292,4.75
0.313,0.198
10
false
4B
1.635,4.542 1.948,4.74
0.313,0.198
10
false
4C
1.26,6.135 1.573,6.333
0.313,0.198
10
false
4E
4.365,6.146 4.677,6.344
0.313,0.198
10
false
4H
5.354,6.146 5.667,6.344
0.313,0.198
10
false
4G
6.375,6.146 6.688,6.344
0.313,0.198
10
false
4F
5.542,3.302 6,3.5
0.458,0.198
10
false
E38
2.323,1.156 2.781,1.354
0.458,0.198
10
false
E38
a.
Measure the voltage and check for pulses according to the value(s) in the table below.
| Terminal No. (Symbol) | Terminal Description | Condition | Specified Condition |
|---|---|---|---|
| 4E-3 (FLCY) - Body ground | Front door courtesy light switch (for LH) input | Front door LH open | Below 1 V |
| 4E-3 (FLCY) - Body ground | Front door courtesy light switch (for LH) input | Front door LH closed | 4.7 to 5.3 V |
| 4C-9 (FRCY) - Body ground | Front door courtesy light switch (for RH) input | Front door RH open | Below 1 V |
| 4C-9 (FRCY) - Body ground | Front door courtesy light switch (for RH) input | Front door RH closed | 4.7 to 5.3 V |
| E37-28 (L2) - Body ground | Driver door key-linked lock input | Driver door key cylinder turned to lock | Below 1 V |
| E37-28 (L2) - Body ground | Driver door key-linked lock input | Driver door key cylinder not turned | Pulse generation |
| E37-4 (UL3) - Body ground | Driver door key-linked unlock input | Driver door key cylinder turned to unlock | Below 1 V |
| E37-4 (UL3) - Body ground | Driver door key-linked unlock input | Driver door key cylinder not turned | Pulse generation |
