SLIDING ROOF / CONVERTIBLE  PANORAMIC FIXED MOONROOF WITH ONE-TOUCH FROSTED GLASS CONTROL SYSTEM  PARTS LOCATION

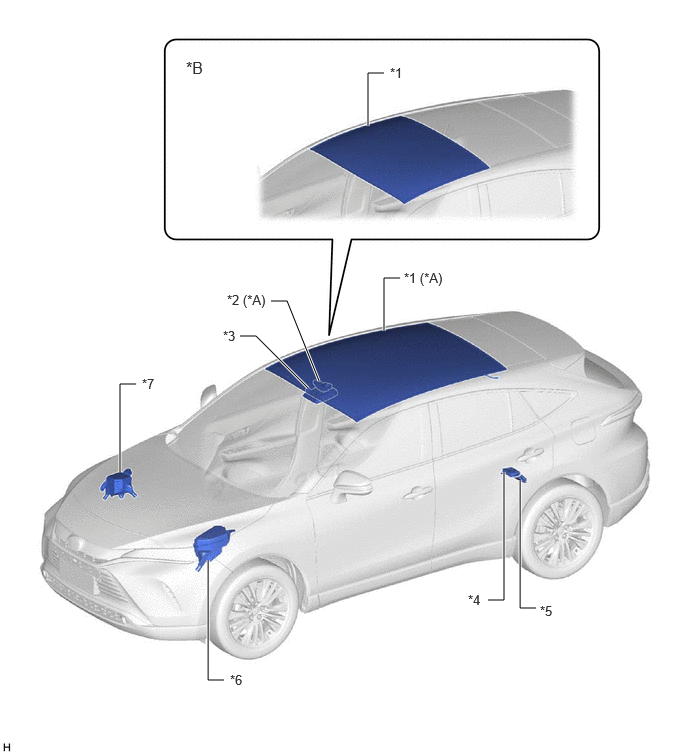

ILLUSTRATION

4,3.448 4,2.896 4,2.896 4.167,2.896 true 5.583,6.333 5.417,6.333 5.417,6.333 5.417,5 true 2.333,7.083 2.167,7.083 2.167,7.083 2.167,5.833 true 5.083,6.25 5.25,6.25 5.25,6.25 5.25,4.917 true 1.25,4.917 1.25,4 1.25,4 1.417,4 true 3.323,3.969 2.99,3.135 2.99,3.135 2.823,3.135 true 3.208,4.042 2.667,3.5 2.667,3.5 2.5,3.5 true 3.833,1.313 3.833,0.76 3.833,0.76 4,0.76 true 1.938,0.604 2.292,0.865 0.354,0.26 12 false *B 4.063,0.677 4.375,0.833 0.313,0.156 10 false *1 2.365,3.042 2.896,3.25 0.531,0.208 10 false *2 (*A) 2.323,3.417 2.635,3.573 0.313,0.156 10 false *3 4.875,6.167 5.188,6.323 0.313,0.156 10 false *4 5.625,6.281 5.938,6.438 0.313,0.156 10 false *5 2.396,7 2.708,7.156 0.313,0.156 10 false *6 1.479,3.917 1.792,4.073 0.313,0.156 10 false *7 4.208,2.813 5.125,3.01 0.917,0.198 10 false *1 (*A)

*A	for Long Type Panoramic Fixed Moonroof	*B	for Short Type Panoramic Fixed Moonroof
*1	DIMMABLE PANORAMIC ROOF GLASS (SLIDING ROOF GLASS SUB-ASSEMBLY)	*2	ROOF SUNSHADE ECU (SLIDING ROOF DRIVE GEAR SUB-ASSEMBLY)
*3	MAP LIGHT ASSEMBLY - DIMMABLE PANORAMIC ROOF GLASS SWITCH - ROOF SUNSHADE SWITCH	*4	NOISE FILTER
*5	VOLTAGE INVERTER ASSEMBLY	*6	NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 ENGINE ROOM JUNCTION BLOCK ASSEMBLY - ECU-IGP NO. 3 FUSE
*7	NO. 2 ENGINE ROOM RELAY BLOCK AND NO. 2 ENGINE ROOM JUNCTION BLOCK ASSEMBLY - INV NO. 2 RELAY - INV NO. 2 FUSE	-	-

ILLUSTRATION

1.802,4.875 1.635,4.875 1.635,4.875 1.625,3.323 true 3.333,5.167 3.167,5.167 3.167,5.167 3.167,3.25 true 1.615,2.573 1.615,1.156 1.615,1.156 1.781,1.156 true 1.302,4.708 1.469,4.708 1.469,4.708 1.469,3.042 true 1.833,1.073 2.146,1.229 0.313,0.156 10 false *1 1.125,4.625 1.438,4.781 0.313,0.156 10 false *2 3.396,5.125 3.708,5.281 0.313,0.156 10 false *3 1.844,4.781 2.156,4.938 0.313,0.156 10 false *4

*1	MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)	*2	POWER DISTRIBUTION BOX ASSEMBLY - S/ROOF FUSE
*3	AIRBAG SENSOR ASSEMBLY	*4	DLC3
