METER / GAUGE / DISPLAY  METER / GAUGE SYSTEM(for Optitron Meter Type)  DATA LIST / ACTIVE TEST


DATA LIST


NOTICE:

In the table below, the values listed under "Normal Condition" are reference values. Do not depend solely on these reference values when deciding whether a part is faulty or not.


HINT:

Using the GTS to read the Data List allows the values or states of switches, sensors, actuators and other items to be read without removing any parts. This non-intrusive inspection can be very useful because intermittent conditions or signals may be discovered before parts or wiring is disturbed. Reading the Data List information early in troubleshooting is one way to save diagnostic time.


a.

Read the Data List according to the display on the GTS.

i.

Combination Meter

HINT:

Depending on the specifications of the vehicle, some items may not be displayed.


Body Electrical > Combination Meter > Data List
Tester Display Measurement Item Range Normal Condition Diagnostic Note
Total Distance Traveled Total distance traveled Min.: 0, Max.: 16777215 - -
Total Distance Traveled - Unit Total distance traveled unit km or mile - -
OTA Communication Event History Wireless communication event history OFF or ON OFF: No communication event history
ON: Has communication event history 		Not applicable to this vehicle
ODO/TRIP Change Switch ODO/TRIP switch operation OFF or ON OFF: Switch released
ON: Switch pushed 		-
Trip Reset Switch Trip reset switch operation OFF or ON OFF: Switch released
ON: Switch pushed 		Not applicable to this vehicle
Multi Display Select Switch DISP switch operation OFF or ON OFF: Switch released
ON: Switch pushed 		Not applicable to this vehicle
Meter Day Mode Switch Tail cancel switch operation OFF or ON OFF: Switch released
ON: Switch pushed 		Not applicable to this vehicle
Light Control Switch (UP) Light control rheostat up switch operation OFF or ON OFF: Switch released
ON: Switch pushed 		Not applicable to this vehicle
Light Control Switch (DOWN) Light control rheostat down switch operation OFF or ON OFF: Switch released
ON: Switch pushed 		Not applicable to this vehicle
Light Control Switch (Single) Light control rheostat switch operation OFF or ON OFF: Switch released
ON: Switch pushed 		Not applicable to this vehicle
Timer Switch H on Combination Meter Clock switch (H) operation OFF or ON OFF: Switch released
ON: Switch pushed 		Not applicable to this vehicle
Timer Switch M on Combination Meter Clock switch (M) operation OFF or ON OFF: Switch released
ON: Switch pushed 		Not applicable to this vehicle
Timer Switch 00 on Combination Meter Clock switch (00) operation OFF or ON OFF: Switch released
ON: Switch pushed 		Not applicable to this vehicle
Timer Switch on Combination Meter Clock switch operation OFF or ON OFF: Switch released
ON: Switch pushed 		Not applicable to this vehicle
Multi Switch (Up) Up switch on steering pad switch operation OFF or ON OFF: Switch released
ON: Switch pushed 		-
Multi Switch (Down) Down switch on steering pad switch operation OFF or ON OFF: Switch released
ON: Switch pushed 		-
Multi Switch (Left) Left switch on steering pad switch operation OFF or ON OFF: Switch released
ON: Switch pushed 		-
Multi Switch (Right) Right switch on steering pad switch operation OFF or ON OFF: Switch released
ON: Switch pushed 		-
Multi Switch (Enter) OK switch on steering pad switch operation OFF or ON OFF: Switch released
ON: Switch pushed 		-
Multi Switch (Back) Back switch on steering pad switch operation OFF or ON OFF: Switch released
ON: Switch pushed 		-
Multi Switch (Menu) Menu switch on steering pad switch operation OFF or ON OFF: Switch released
ON: Switch pushed 		Not applicable to this vehicle
+B Voltage Auxiliary battery voltage Min.: 0.0 V, Max.: 25.5 V or Unset 11 to 14 V -
Fuel Input Fuel level input Min.: 0.00 L, Max.: 655.35 L or Unset
for HV Model
·

Fuel receiver gauge indicates F: 47.66 L

·

Fuel receiver gauge indicates 3/4: 37.58 L

·

Fuel receiver gauge indicates 1/2: 27.50 L

·

Fuel receiver gauge indicates 1/4: 13.75 L

·

Fuel receiver gauge indicates E: 5.50 L


for Gasoline Model
·

Fuel receiver gauge indicates F: 47.13 L*

·

Fuel receiver gauge indicates 3/4: 37.66 L*

·

Fuel receiver gauge indicates 1/2: 27.11 L

·

Fuel receiver gauge indicates 1/4: 13.75 L

·

Fuel receiver gauge indicates E: 5.71 L


The detected value of the fuel sender gauge assembly is displayed.
Sub Fuel Input Fuel level input Min.: 0.00 L, Max.: 655.35 L or Unset
·

Fuel receiver gauge indicates F: 47.13 L*

·

Fuel receiver gauge indicates 3/4: 37.66 L*

·

Fuel receiver gauge indicates 1/2: 28.18 L


The detected value of the No. 2 fuel sender gauge assembly is displayed.
Rheostat value Meter illumination level input Min.: 0.00%, Max.: 100.01% or Unset The value increases in proportion to the brightness Not applicable to this vehicle
Vehicle Speed Meter Vehicle speed input Min.: 0 km/h (0 mph), Max.: 255 km/h (158 mph) or Unset Almost the same as actual speedometer -
Engine RPM Engine speed input Min.: 0 rpm, Max.: 12701 rpm or Unset Almost the same as actual tachometer -
Washer Level Warning Switch Washer fluid level warning switch input OFF or ON OFF: Washer fluid level not low
ON: Washer fluid level low 		Not applicable to this vehicle
Driver Buckle Switch Seat belt buckle switch input
(for Driver seat) 		Fastened or Not Fastened Fastened: Driver seat belt buckle switch fastened
Not Fastened: Driver seat belt buckle switch unfastened 		-
Turn Signal Switch (Left) LH turn signal switch input OFF or ON OFF: LH turn signal switch off
ON: LH turn signal switch on 		Not applicable to this vehicle
Turn Signal Switch (Right) RH turn signal switch input OFF or ON OFF: RH turn signal switch off
ON: RH turn signal switch on 		Not applicable to this vehicle
Turn Switch Signal (Full Turn) Turn signal switch input OFF or ON OFF: LH and RH turn signal switch off
ON: LH or RH turn signal switch on 		Not applicable to this vehicle
Hazard Flasher Switch Hazard warning signal switch input OFF or ON OFF: Hazard warning signal switch off
ON: Hazard warning signal switch on 		-
Ambient Temperature (Celsius) Outside temperature input
(Celsius) 		Min.: -40.0°C, Max.: 87.1°C or Unset Almost the same as actual outside temperature -
Ambient Temperature (Fahrenheit) Outside temperature input
(Fahrenheit) 		Min.: -40°F, Max.: 215°F or Unset Almost the same as actual outside temperature -
Lighting System Existence of headlight ECU Without or With Without: w/o Headlight ECU
With: w/ Headlight ECU 		-
Back Door System Existence of power back door system Without or With Without: w/o Power Back Door System
With: w/ Power Back Door System 		-
Oil Pressure Switch Engine oil pressure switch input OFF or ON OFF: Engine started
ON: Engine not started 		Not applicable to this vehicle
Oil Level Switch Engine oil level sensor input OFF or ON OFF: Engine oil level not low
ON: Engine oil level low 		-
Water Level Switch Fuel sediment switch input OFF or ON OFF: Less than a large amount of water in fuel
ON: Large amount of water in fuel 		Not applicable to this vehicle
Fuel Filter Switch Fuel filter switch input OFF or ON OFF: Fuel filter warning light off
ON: Fuel filter warning light on 		Not applicable to this vehicle
Coolant Temperature Engine coolant temperature input Min.: 0.0°C, Max.: 127.1°C or Unset 75 to 100°C: After warming up engine -
Integrated value for Maintenance Maintenance required reminder value Min.: 0 miles, Max.: 25401 miles or Unset Driving distance after performing maintenance required reminder reset procedure displayed -
Parking Brake Switch Parking brake switch input OFF or ON OFF: Parking brake released
ON: Parking brake applied 		Not applicable to this vehicle
Brake Fluid Amount Brake fluid level warning switch input OK or Low OK: Brake fluid level normal
Low: Brake fluid level abnormal 		-
Brake Negative Pressure Vacuum warning switch input OK or NG OK: Brake vacuum pressure normal
NG: Brake vacuum pressure abnormal 		Not applicable to this vehicle
TPMS System Existence of tire pressure warning system Without or With Without: w/o Tire Pressure Warning System
With: w/ Tire Pressure Warning System 		-
VGRS System Existence of variable gear ratio steering system Without or With Without: w/o Variable Gear Ratio Steering System
With: w/ Variable Gear Ratio Steering System 		-
VSC System Existence of electronically controlled brake system Without or With Without: w/o Electronically Controlled Brake System
With: w/ Electronically Controlled Brake System 		-
DRS System Existence of dynamic rear steering system Without or With Without: w/o Dynamic Rear Steering System
With: w/ Dynamic Rear Steering System 		-
Pop Up Hood System Existence of pop up hood Without or With Without: w/o Pop up Hood
With: w/ Pop up Hood 		-
AVS System Existence of adaptive variable suspension system Without or With Without: w/o Adaptive Variable Suspension System
With: w/ Adaptive Variable Suspension System 		-
LDA System Existence of lane tracing assist system Without or With Without: w/o Lane Tracing Assist System
With: w/ Lane Tracing Assist System 		-
PCS System Existence of pre-collision system Without or With Without: w/o Pre-collision System
With: w/ Pre-collision System 		-
ICS System Existence of parking support brake system Without or With Without: w/o Parking Support Brake System
With: w/ Parking Support Brake System 		-
Radar Cruise System Existence of dynamic radar cruise control system Without or With Without: w/o Dynamic Radar Cruise Control System
With: w/ Dynamic Radar Cruise Control System 		-
Clearance Sonar System Existence of TOYOTA parking assist-sensor system Without or With Without: w/o TOYOTA Parking Assist-sensor System
With: w/ TOYOTA Parking Assist-sensor System 		-
Road Sign Assist System Existence of road sign assist system Without or With Without: w/o Road Sign Assist System
With: w/ Road Sign Assist System 		-

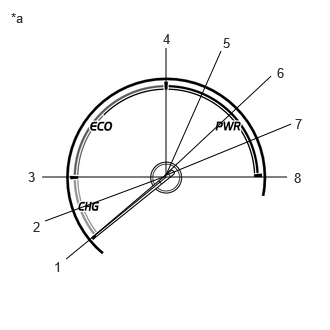

HV/EV System Indicator Hybrid system indicator value Min.: -101%, Max.: 511% or Unset Current hybrid system indicator value "Unset" is displayed when the vehicle is stopped and the ignition switch is ON (READY).
ODO Display Time After IG OFF Adjust Setting of the trip result display time after the ignition switch is turned off 30s, 60s, 600s or OFF - If it is possible to customize the setting, the current setting is displayed.
Flasher Sound Volume Adjust Setting of flasher sound volume adjustment Large, Medium or Small - If it is possible to customize the setting, the current setting is displayed.
Reverse Buzzer Setting Setting of reverse buzzer Continual or Single - If it is possible to customize the setting, the current setting is displayed.
Brake Pad Sensor Signal Brake pad sensor input OFF or ON OFF: Brake pad replacement not necessary
ON: Brake pad replacement necessary 		Not applicable to this vehicle
Sub Fuel Sender No. 2 fuel sender gauge assembly Without or With Without: w/o No. 2 Fuel Sender Gauge Assembly
With: w/ No. 2 Fuel Sender Gauge Assembly 		-
Steering Heater Indicator Steering wheel heater switch input OFF or ON OFF: Heated steering wheel indicator light off
ON: Heated steering wheel indicator light on 		Not applicable to this vehicle
Nonvolatile Memory Status Internally stored information status Abnormal or Normal Abnormal: Internally stored information reading impossible
Normal: Internally stored information reading possible 		Not applicable to this vehicle

*: Combined value of "Fuel Input" and "Sub Fuel Input"



ii.

Main Body

Body Electrical > Main Body > Data List
Tester Display Measurement Item Range Normal Condition Diagnostic Note
Support Service Function Setting of Suggestion Service OFF, Parked or ON - If it is possible to customize the setting, the current setting is displayed.



ACTIVE TEST


HINT:

Using the GTS to perform Active Tests allows relays, VSVs, actuators and other items to be operated without removing any parts. This non-intrusive functional inspection can be very useful because intermittent operation may be discovered before parts or wiring is disturbed. Performing Active Tests early in troubleshooting is one way to save diagnostic time. Data List information can be displayed while performing Active Tests.


a.

Perform the Active Test according the display on the GTS.

HINT:

Depending on the specifications of the vehicle, some items may not be displayed.


Body Electrical > Combination Meter > Active Test
Tester Display Measurement Item Control Range Diagnostic Note
Speedometer Operation (0km/h,0MPH) Speedometer
(0 km/h, 0 mph) 		ON -
Speedometer Operation (40km/h,40MPH) Speedometer
(40 km/h, 40 mph) 		ON The value displayed on the speedometer may deviate.*
Speedometer Operation (80km/h,80MPH) Speedometer
(80 km/h, 80 mph) 		ON The value displayed on the speedometer may deviate.*
Speedometer Operation (120km/h,120MPH) Speedometer
(120 km/h, 120 mph) 		ON The value displayed on the speedometer may deviate.*
Speedometer Operation (160km/h,160MPH) Speedometer
(160 km/h, 160 mph) 		ON The value displayed on the speedometer may deviate.*
Speedometer Operation (200km/h,200MPH) Speedometer
(200 km/h, 200 mph) 		ON The value displayed on the speedometer may deviate.*
Speedometer Operation (240km/h,240MPH) Speedometer
(240 km/h, 240 mph) 		ON When the value of the Active Test is more than or equal to the speedometer upper limit, the indicated speed stops at the upper limit.
Speedometer Operation (280km/h,280MPH) Speedometer
(280 km/h, 280 mph) 		ON When the value of the Active Test is more than or equal to the speedometer upper limit, the indicated speed stops at the upper limit.
Speedometer Operation (320km/h,320MPH) Speedometer
(320 km/h, 320 mph) 		ON When the value of the Active Test is more than or equal to the speedometer upper limit, the indicated speed stops at the upper limit.
Speedometer Operation (360km/h,360MPH) Speedometer
(360 km/h, 360 mph) 		ON When the value of the Active Test is more than or equal to the speedometer upper limit, the indicated speed stops at the upper limit.
Speedometer Operation (400km/h,400MPH) Speedometer
(400 km/h, 400 mph) 		ON When the value of the Active Test is more than or equal to the speedometer upper limit, the indicated speed stops at the upper limit.
TachoMeter Operation (0rpm) Tachometer
(0 rpm) 		ON -
TachoMeter Operation (1000rpm) Tachometer
(1000 rpm) 		ON The value displayed on the tachometer may deviate.*
TachoMeter Operation (2000rpm) Tachometer
(2000 rpm) 		ON The value displayed on the tachometer may deviate.*
TachoMeter Operation (3000rpm) Tachometer
(3000 rpm) 		ON The value displayed on the tachometer may deviate.*
TachoMeter Operation (4000rpm) Tachometer
(4000 rpm) 		ON The value displayed on the tachometer may deviate.*
TachoMeter Operation (5000rpm) Tachometer
(5000 rpm) 		ON The value displayed on the tachometer may deviate.*
TachoMeter Operation (6000rpm) Tachometer
(6000 rpm) 		ON The value displayed on the tachometer may deviate.*
TachoMeter Operation (7000rpm) Tachometer
(7000 rpm) 		ON The value displayed on the tachometer may deviate.*
TachoMeter Operation (8000rpm) Tachometer
(8000 rpm) 		ON -
TachoMeter Operation (9000rpm) Tachometer
(9000 rpm) 		ON -
TachoMeter Operation (10000rpm) Tachometer
(10000 rpm) 		ON -
Fuel Gauge Operation (Sender E) Fuel receiver gauge
(Fuel sender gauge lower limit) 		ON See [Display 1]
Fuel Gauge Operation (Empty) Fuel receiver gauge
(Fuel receiver gauge indicates E) 		ON See [Display 1]
Fuel Gauge Operation (Warning) Fuel receiver gauge
(Position at which fuel level warning light turns on/off) 		ON See [Display 1]
Fuel Gauge Operation (1/4) Fuel receiver gauge
(Fuel receiver gauge indicates 1/4) 		ON See [Display 1]
Fuel Gauge Operation (1/2) Fuel receiver gauge
(Fuel receiver gauge indicates 1/2) 		ON See [Display 1]
Fuel Gauge Operation (3/4) Fuel receiver gauge
(Fuel receiver gauge indicates 3/4) 		ON See [Display 1]
Fuel Gauge Operation (Full) Fuel receiver gauge
(Fuel receiver gauge indicates F) 		ON See [Display 1]
Fuel Gauge Operation (Sender F) Fuel receiver gauge
(Fuel sender gauge upper limit) 		ON See [Display 1]
Sub Fuel Gauge Operation (Sender E) Sub fuel receiver gauge
(Fuel sender gauge lower limit for sub fuel receiver gauge) 		ON Not applicable to this vehicle
Sub Fuel Gauge Operation (Empty) Sub fuel receiver gauge
(Sub fuel receiver gauge indicates E) 		ON Not applicable to this vehicle
Sub Fuel Gauge Operation (1/4) Sub fuel receiver gauge
(Sub fuel receiver gauge indicates 1/4) 		ON Not applicable to this vehicle
Sub Fuel Gauge Operation (1/2) Sub fuel receiver gauge
(Sub fuel receiver gauge indicates 1/2) 		ON Not applicable to this vehicle
Sub Fuel Gauge Operation (3/4) Sub fuel receiver gauge
(Sub fuel receiver gauge indicates 3/4) 		ON Not applicable to this vehicle
Sub Fuel Gauge Operation (Full) Sub fuel receiver gauge
(Sub fuel receiver gauge indicates F) 		ON Not applicable to this vehicle
Sub Fuel Gauge Operation (Sender F) Sub fuel receiver gauge
(Fuel sender gauge upper limit for sub fuel receiver gauge) 		ON Not applicable to this vehicle

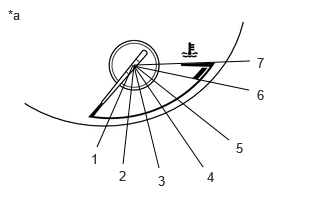

Water Temperature Meter Operation (50C,122F) Engine coolant temperature receiver gauge
(50°C, 122°F) 		ON See [Display 2]
Water Temperature Meter Operation (60C,140F) Engine coolant temperature receiver gauge
(60°C, 140°F) 		ON See [Display 2]
Water Temperature Meter Operation (70C,158F) Engine coolant temperature receiver gauge
(70°C, 158°F) 		ON See [Display 2]
Water Temperature Meter Operation (80C,176F) Engine coolant temperature receiver gauge
(80°C, 176°F) 		ON See [Display 2]
Water Temperature Meter Operation (Middle) Engine coolant temperature receiver gauge
(Middle) 		ON See [Display 2]
Water Temperature Meter Operation (110C,230F) Engine coolant temperature receiver gauge
(110°C, 230°F) 		ON See [Display 2]
Water Temperature Meter Operation (120C,248F) Engine coolant temperature receiver gauge
(120°C, 248°F) 		ON See [Display 2]
Water Temperature Meter Operation (127C,260F) Engine coolant temperature receiver gauge
(127°C, 260°F) 		ON See [Display 2]
Volt Meter Operation (0V) Voltmeter
(0 V) 		ON Not applicable to this vehicle
Volt Meter Operation (3V) Voltmeter
(3 V) 		ON Not applicable to this vehicle
Volt Meter Operation (6V) Voltmeter
(6 V) 		ON Not applicable to this vehicle
Volt Meter Operation (9V) Voltmeter
(9 V) 		ON Not applicable to this vehicle
Volt Meter Operation (12V) Voltmeter
(12 V) 		ON Not applicable to this vehicle
Volt Meter Operation (15V) Voltmeter
(15 V) 		ON Not applicable to this vehicle
Volt Meter Operation (18V) Voltmeter
(18 V) 		ON Not applicable to this vehicle
Oil Pressure Meter Operation (LOW) Engine oil pressure receiver gauge
(Engine oil pressure receiver gauge indicates Low) 		ON Not applicable to this vehicle
Oil Pressure Meter Operation (1/4) Engine oil pressure receiver gauge
(Engine oil pressure receiver gauge indicates 1/4) 		ON Not applicable to this vehicle
Oil Pressure Meter Operation (1/2) Engine oil pressure receiver gauge
(Engine oil pressure receiver gauge indicates 1/2) 		ON Not applicable to this vehicle
Oil Pressure Meter Operation (3/4) Engine oil pressure receiver gauge
(Engine oil pressure receiver gauge indicates 3/4) 		ON Not applicable to this vehicle
Oil Pressure Meter Operation (HIGH) Engine oil pressure receiver gauge
(Engine oil pressure receiver gauge indicates High) 		ON Not applicable to this vehicle
HV/EV System Indicator (MIN) Hybrid system indicator value
(Charge area lower limit) 		ON See [Display 3]
HV/EV System Indicator (-50%) Hybrid system indicator value
(Charge area) 		ON See [Display 3]
HV/EV System Indicator (0%) Hybrid system indicator value
(Charge area/eco area boundary) 		ON See [Display 3]
HV/EV System Indicator (100%) Hybrid system indicator value
(Eco area/power area boundary) 		ON See [Display 3]
HV/EV System Indicator (200%) Hybrid system indicator value
(Power area) 		ON See [Display 3]
HV/EV System Indicator (300%) Hybrid system indicator value
(Power area) 		ON See [Display 3]
HV/EV System Indicator (400%) Hybrid system indicator value
(Power area) 		ON See [Display 3]
HV/EV System Indicator (MAX) Hybrid system indicator value
(Power area upper limit) 		ON See [Display 3]
SOC Gauge (MIN) Hybrid battery status gauge
(Hybrid battery status gauge indicates lower limit) 		ON Not applicable to this vehicle
SOC Gauge (1/4) Hybrid battery status gauge
(Hybrid battery status gauge indicates 1/4) 		ON Not applicable to this vehicle
SOC Gauge (1/2) Hybrid battery status gauge
(Hybrid battery status gauge indicates 1/2) 		ON Not applicable to this vehicle
SOC Gauge (3/4) Hybrid battery status gauge
(Hybrid battery status gauge indicates 3/4) 		ON Not applicable to this vehicle
SOC Gauge (MAX) Hybrid battery status gauge
(Hybrid battery status gauge indicates upper limit) 		ON Not applicable to this vehicle
Fuel Gauge Operation for CNG (Sender E) Fuel receiver gauge (for CNG)
(Fuel sender gauge (for CNG) lower limit) 		ON Not applicable to this vehicle
Fuel Gauge Operation for CNG (Empty) Fuel receiver gauge (for CNG)
(Fuel receiver gauge (for CNG) indicates E) 		ON Not applicable to this vehicle
Fuel Gauge Operation for CNG (Warning) Fuel receiver gauge (for CNG)
(Position at which fuel level warning light (for CNG) turns on/off) 		ON Not applicable to this vehicle
Fuel Gauge Operation for CNG (1/4) Fuel receiver gauge (for CNG)
(Fuel receiver gauge (for CNG) indicates 1/4) 		ON Not applicable to this vehicle
Fuel Gauge Operation for CNG (1/2) Fuel receiver gauge (for CNG)
(Fuel receiver gauge (for CNG) indicates 1/2) 		ON Not applicable to this vehicle
Fuel Gauge Operation for CNG (3/4) Fuel receiver gauge (for CNG)
(Fuel receiver gauge (for CNG) indicates 3/4) 		ON Not applicable to this vehicle
Fuel Gauge Operation for CNG (Full) Fuel receiver gauge (for CNG)
(Fuel receiver gauge (for CNG) indicates F) 		ON Not applicable to this vehicle
Fuel Gauge Operation for CNG (Sender F) Fuel receiver gauge (for CNG)
(Fuel sender gauge (for CNG) upper limit) 		ON Not applicable to this vehicle
Buzzer Operation (800Hz, Vol L, W/ Damping) Combination meter buzzer
·

Frequency: 800Hz

·

Volume: Large

·

Fading tone


ON -
Buzzer Operation (800Hz, Vol L, W/O Damping) Combination meter buzzer
·

Frequency: 800Hz

·

Volume: Large

·

Continuous tone


ON -
Buzzer Operation (800Hz, Vol S, W/ Damping) Combination meter buzzer
·

Frequency: 800Hz

·

Volume: Small

·

Fading tone


ON -
Buzzer Operation (800Hz, Vol S, W/O Damping) Combination meter buzzer
·

Frequency: 800Hz

·

Volume: Small

·

Continuous tone


ON -
Buzzer Operation (1.6kHz, Vol S, W/O Damping) Combination meter buzzer
·

Frequency: 1.6kHz

·

Volume: Small

·

Continuous tone


ON -
Buzzer Operation (2.0kHz, Vol S, W/O Damping) Combination meter buzzer
·

Frequency: 2.0kHz

·

Volume: Small

·

Continuous tone


ON -
Buzzer Operation (2.4kHz, Vol L, W/O Damping) Combination meter buzzer
·

Frequency: 2.4kHz

·

Volume: Large

·

Continuous tone


ON -
Multi Display All (White) Multi-information display
(White display) 		ON -
Multi Display Default Screen Multi-information display
(Default screen) 		ON -
Meter Display (All) Segment display
(All display) 		ON Not applicable to this vehicle
Meter Display (0) Segment display
(0 display) 		ON Not applicable to this vehicle
Meter Display (1) Segment display
(1 display) 		ON Not applicable to this vehicle
Meter Display (2) Segment display
(2 display) 		ON Not applicable to this vehicle
Meter Display (3) Segment display
(3 display) 		ON Not applicable to this vehicle
Meter Display (4) Segment display
(4 display) 		ON Not applicable to this vehicle
Meter Display (5) Segment display
(5 display) 		ON Not applicable to this vehicle
Meter Display (6) Segment display
(6 display) 		ON Not applicable to this vehicle
Meter Display (7) Segment display
(7 display) 		ON Not applicable to this vehicle
Meter Display (8) Segment display
(8 display) 		ON Not applicable to this vehicle
Meter Display (9) Segment display
(9 display) 		ON Not applicable to this vehicle
Fuel Gauge Indicator Fuel level warning light OFF or ON -
High Beam Indicator High beam indicator light OFF or ON -
Taillamp Indicator Tail indicator light OFF or ON -
Left Turn Signal Indicator LH turn indicator light OFF or ON -
Right Turn Signal Indicator RH turn indicator light OFF or ON -
Driver Side Seat Belt Warning Driver or front passenger seat belt warning light OFF or ON -
Passenger Side Seat Belt Warning Front passenger seat belt warning light OFF or ON Not applicable to this vehicle
Airbag Warning SRS warning light OFF or ON -
Check Engine Warning MIL (Check engine warning light) OFF or ON -
Brake Warning Brake warning light / red (malfunction) OFF or ON -
Park Warning Parking brake indicator light OFF or ON -
ABS Warning ABS warning light OFF or ON -
ECB Warning Brake warning light / yellow (minor malfunction) OFF or ON -
Slip Warning Slip indicator light OFF or ON -
VSC OFF Indicator VSC OFF indicator light OFF or ON -
Brake Hold Indicator Brake hold standby indicator light OFF or ON -
Hold Indicator Brake hold operated indicator light OFF or ON -
Tire Pressure Warning System Indicator Tire pressure warning light OFF or ON -
EPS Warning EPS warning light
(Red) 		OFF or ON -
PPS Warning EPS warning light
(Amber) 		OFF or ON -
PCS OFF Warning PCS warning light OFF or ON -
ICS OFF Warning PKSB OFF indicator light OFF or ON -
Ready Indicator Ready indicator light OFF or ON -
Auxiliary Battery Warning Charge warning light OFF or ON Not applicable to this vehicle
Speed Signal Input (0) Vehicle speed test signal input ON When this Active Test is performed, an actual vehicle speed signal is sent via CAN communication to the combination meter assembly to operate the speedometer. The seat belt warning buzzer, etc. may operate when performing this Active Test.
Speed Signal Input (40) Vehicle speed test signal input ON
·

When this Active Test is performed, an actual vehicle speed signal is sent via CAN communication to the combination meter assembly to operate the speedometer. The seat belt warning buzzer, etc. may operate when performing this Active Test.

·

The value displayed on the speedometer may deviate.*


Speed Signal Input (80) Vehicle speed test signal input ON
·

When this Active Test is performed, an actual vehicle speed signal is sent via CAN communication to the combination meter assembly to operate the speedometer. The seat belt warning buzzer, etc. may operate when performing this Active Test.

·

The value displayed on the speedometer may deviate.*


Speed Signal Input (120) Vehicle speed test signal input ON
·

When this Active Test is performed, an actual vehicle speed signal is sent via CAN communication to the combination meter assembly to operate the speedometer. The seat belt warning buzzer, etc. may operate when performing this Active Test.

·

The value displayed on the speedometer may deviate.*


Speed Signal Input (160) Vehicle speed test signal input ON
·

When this Active Test is performed, an actual vehicle speed signal is sent via CAN communication to the combination meter assembly to operate the speedometer. The seat belt warning buzzer, etc. may operate when performing this Active Test.

·

The value displayed on the speedometer may deviate.*


Speed Signal Input (200) Vehicle speed test signal input ON
·

When this Active Test is performed, an actual vehicle speed signal is sent via CAN communication to the combination meter assembly to operate the speedometer. The seat belt warning buzzer, etc. may operate when performing this Active Test.

·

The value displayed on the speedometer may deviate.*


Speed Signal Input (240) Vehicle speed test signal input ON
·

When this Active Test is performed, an actual vehicle speed signal is sent via CAN communication to the combination meter assembly to operate the speedometer. The seat belt warning buzzer, etc. may operate when performing this Active Test.

·

When the value of the Active Test is more than or equal to the speedometer upper limit, the indicated speed stops at the upper limit.


Speed Signal Input (280) Vehicle speed test signal input ON
·

When this Active Test is performed, an actual vehicle speed signal is sent via CAN communication to the combination meter assembly to operate the speedometer. The seat belt warning buzzer, etc. may operate when performing this Active Test.

·

When the value of the Active Test is more than or equal to the speedometer upper limit, the indicated speed stops at the upper limit.


Speed Signal Input (320) Vehicle speed test signal input ON
·

When this Active Test is performed, an actual vehicle speed signal is sent via CAN communication to the combination meter assembly to operate the speedometer. The seat belt warning buzzer, etc. may operate when performing this Active Test.

·

When the value of the Active Test is more than or equal to the speedometer upper limit, the indicated speed stops at the upper limit.


Speed Signal Input (360) Vehicle speed test signal input ON
·

When this Active Test is performed, an actual vehicle speed signal is sent via CAN communication to the combination meter assembly to operate the speedometer. The seat belt warning buzzer, etc. may operate when performing this Active Test.

·

When the value of the Active Test is more than or equal to the speedometer upper limit, the indicated speed stops at the upper limit.


Speed Signal Input (400) Vehicle speed test signal input ON
·

When this Active Test is performed, an actual vehicle speed signal is sent via CAN communication to the combination meter assembly to operate the speedometer. The seat belt warning buzzer, etc. may operate when performing this Active Test.

·

When the value of the Active Test is more than or equal to the speedometer upper limit, the indicated speed stops at the upper limit.


ODO/TRIP Change Switch Performs the same operation as pressing the ODO/TRIP switch OFF or ON -
Trip Reset Switch Performs the same operation as pressing the trip reset switch OFF or ON Not applicable to this vehicle
Multi Display Select Switch Performs the same operation as pressing the DISP switch OFF or ON Not applicable to this vehicle
Meter Day Mode Switch Performs the same operation as pressing the tail cancel switch OFF or ON Not applicable to this vehicle
Light Control Switch (UP) Performs the same operation as pressing the light control rheostat up switch OFF or ON Not applicable to this vehicle
Light Control Switch (DOWN) Performs the same operation as pressing the light control rheostat down switch OFF or ON Not applicable to this vehicle
Light Control Switch (Single) Performs the same operation as pressing the light control rheostat switch OFF or ON Not applicable to this vehicle
Timer Switch (H) Performs the same operation as pressing the clock switch (H) OFF or ON Not applicable to this vehicle
Timer Switch (M) Performs the same operation as pressing the clock switch (M) OFF or ON Not applicable to this vehicle
Timer Switch (00) Performs the same operation as pressing the clock switch (00) OFF or ON Not applicable to this vehicle
Timer Switch (Single) Performs the same operation as pressing the clock switch OFF or ON Not applicable to this vehicle
Multi Switch (Up) Performs the same operation as pressing the up switch on steering pad switch OFF or ON -
Multi Switch (Down) Performs the same operation as pressing the down switch on steering pad switch OFF or ON -
Multi Switch (Left) Performs the same operation as pressing the left switch on steering pad switch OFF or ON -
Multi Switch (Right) Performs the same operation as pressing the right switch on steering pad switch OFF or ON -
Multi Switch (Enter) Performs the same operation as pressing the OK switch on steering pad switch OFF or ON -
Multi Switch (Back) Performs the same operation as pressing the back switch on steering pad switch OFF or ON -
Multi Switch (Top) Performs the same operation as pressing the top switch on steering pad switch OFF or ON Not applicable to this vehicle

*: For the tolerance of each Active Test, refer to On-vehicle Inspection.

Click hereVehicle Interior>METER / GAUGE / DISPLAY>METER / GAUGE SYSTEM (for Optitron Meter Type)>ON-VEHICLE INSPECTION


i.
E441820
2.573,0.635 1.385,0.75 false 2.604,0.75 1.385,0.75 false 2.479,1.438 1.385,0.75 false 1.229,1.823 1.385,0.76 false 1.833,1.729 1.385,0.74 false 0.792,1.688 1.385,0.76 false 0.698,1.552 1.375,0.75 false 0.635,1.427 1.375,0.75 false 0.115,0.083 0.302,0.26 0.188,0.177 10 false *a 0.531,1.344 0.74,1.521 0.208,0.177 10 false 1 0.729,1.708 0.906,1.896 0.177,0.188 10 false 3 1.198,1.844 1.375,2 0.177,0.156 10 false 4 1.865,1.74 2.094,1.917 0.229,0.177 10 false 5 2.531,1.385 2.792,1.552 0.26,0.167 10 false 6 2.667,0.698 2.844,0.854 0.177,0.156 10 false 7 0.604,1.542 0.781,1.698 0.177,0.156 10 false 2 2.635,0.51 2.792,0.708 0.156,0.198 10 false 8
*a Fuel Receiver Gauge


[Display 1]: Fuel Gauge Operation

HINT:

Refer to the following table for the specified fuel receiver gauge position for each selected value:

Tester Display Fuel Receiver Gauge Indication
Fuel Gauge Operation
(Sender E) 		Approximately 1 is indicated
Fuel Gauge Operation
(Empty) 		Approximately 2 is indicated
Fuel Gauge Operation
(Warning) 		Approximately 3 is indicated
Fuel Gauge Operation
(1/4) 		Approximately 4 is indicated
Fuel Gauge Operation
(1/2) 		Approximately 5 is indicated
Fuel Gauge Operation
(3/4) 		Approximately 6 is indicated
Fuel Gauge Operation
(Full) 		Approximately 7 is indicated
Fuel Gauge Operation
(Sender F) 		Approximately 8 is indicated



ii.
E441821C02
2.604,0.635 1.396,0.677 false 2.115,1.74 1.396,0.688 false 1.281,1.708 1.396,0.677 false 2.594,0.938 1.396,0.688 false 2.385,1.458 1.396,0.677 false 1.01,1.531 1.385,0.677 false 1.656,1.75 1.396,0.688 false 1.24,1.75 1.438,1.917 0.198,0.167 10 false 2 1.646,1.802 1.875,2.042 0.229,0.24 10 false 3 2.156,1.76 2.375,1.948 0.219,0.188 10 false 4 0.948,1.573 1.198,1.771 0.25,0.198 10 false 1 2.458,1.458 2.615,1.656 0.156,0.198 10 false 5 2.677,0.906 2.833,1.104 0.156,0.198 10 false 6 2.677,0.573 2.833,0.771 0.156,0.198 10 false 7 0.083,0.073 0.396,0.271 0.313,0.198 10 false *a
*a Engine Coolant Temperature Receiver Gauge


[Display 2]: Water Temperature Meter Operation

HINT:

Refer to the following table for the specified engine coolant temperature receiver gauge position for each selected value:

Tester Display Engine Coolant Temperature Receiver Gauge Indication
(for HV Model) 		Engine Coolant Temperature Receiver Gauge Indication
(for Gasoline Model)
Water Temperature Meter Operation
(50C, 122F) 		Between 1 and 2 is indicated Approximately 1 is indicated
Water Temperature Meter Operation
(60C, 140F) 		Between 2 and 3 is indicated Approximately 2 is indicated
Water Temperature Meter Operation
(70C, 158F) 		Approximately 4 is indicated Approximately 3 is indicated
Water Temperature Meter Operation
(80C, 176F) 		Approximately 4 is indicated Approximately 4 is indicated
Water Temperature Meter Operation
(Middle) 		Approximately 4 is indicated Approximately 4 is indicated
Water Temperature Meter Operation
(110C, 230F) 		Between 4 and 5 is indicated Between 4 and 5 is indicated
Water Temperature Meter Operation
(120C, 248F) 		Approximately 6 is indicated Approximately 6 is indicated
Water Temperature Meter Operation
(127C, 260F) 		Approximately 7 is indicated Approximately 7 is indicated



iii.
E441819C02
0.438,1.844 1.74,1.844 false 1.729,0.5 1.729,1.823 false 2.99,1.844 1.74,1.844 false 3.031,1.292 1.708,1.833 false 2.302,0.531 1.729,1.823 false 2.823,0.792 1.719,1.823 false 0.688,2.698 1.729,1.844 false 0.469,2.302 1.729,1.833 false 0.563,2.698 0.875,2.896 0.313,0.198 10 false 1 0.344,2.281 0.656,2.479 0.313,0.198 10 false 2 0.292,1.76 0.604,1.958 0.313,0.198 10 false 3 1.698,0.323 2.01,0.521 0.313,0.198 10 false 4 2.323,0.365 2.635,0.563 0.313,0.198 10 false 5 2.885,0.677 3.198,0.875 0.313,0.198 10 false 6 3.073,1.208 3.385,1.406 0.313,0.198 10 false 7 3.063,1.771 3.375,1.969 0.313,0.198 10 false 8 0.115,0.104 0.427,0.302 0.313,0.198 10 false *a
*a Hybrid System Indicator


[Display 3]: HV/EV System Indicator

HINT:

Refer to the following table for the specified hybrid system indicator position for each selected value:

Tester Display Hybrid System Indicator Indication
HV/EV System Indicator
(MIN) 		Approximately 1 is indicated
HV/EV System Indicator
(-50%) 		Approximately 2 is indicated
HV/EV System Indicator
(0%) 		Approximately 3 is indicated
HV/EV System Indicator
(100%) 		Approximately 4 is indicated
HV/EV System Indicator
(200%) 		Approximately 5 is indicated
HV/EV System Indicator
(300%) 		Approximately 6 is indicated
HV/EV System Indicator
(400%) 		Approximately 7 is indicated
HV/EV System Indicator
(MAX) 		Approximately 8 is indicated
