M20C-FKS, M20D-FKS ENGINE CONTROL SFI SYSTEM P00D562 A/F (O2) Sensor Correlation Bank 1 Sensor 1/Bank 1 Sensor 2 Signal Compare Failure
DESCRIPTION
Refer to DTC P003012.
Refer to DTC P003612.
- HINT:
-
Although the DTC title say O2 sensor, this DTC relate to the air fuel ratio sensors (sensor 1 and sensor 2).
| DTC No. | Detection Item | DTC Detection Condition | Trouble Area | MIL | Note |
|---|---|---|---|---|---|
| P00D562 | A/F (O2) Sensor Correlation Bank 1 Sensor 1/Bank 1 Sensor 2 Signal Compare Failure | The difference between the averaged output values for air fuel ratio sensor (sensor 1) and air fuel ratio sensor (sensor 2) during fuel cut exceeds the threshold (2 trip detection logic). | ·
Air fuel ratio sensor (sensor 1) ·
Air fuel ratio sensor (sensor 2) |
Comes on | SAE Code: P00D5 |
MONITOR DESCRIPTION

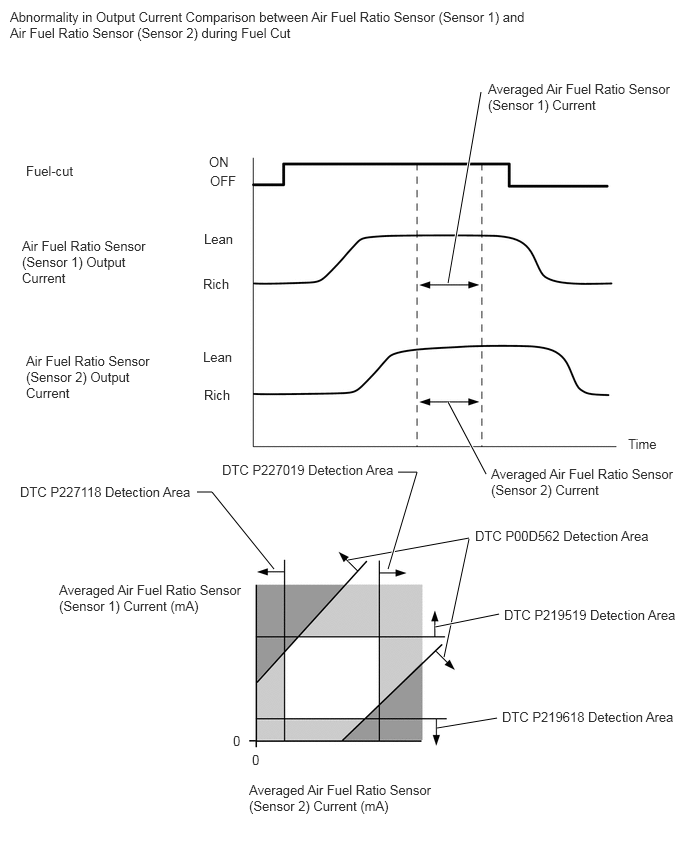

Abnormality in Output Current Comparison between Air Fuel Ratio Sensor (Sensor 1) and Air Fuel Ratio Sensor (Sensor 2) during Fuel Cut
Comparing the averaged output values during fuel cut for air fuel ratio sensor (sensor 1) and air fuel ratio sensor (sensor 2), if the difference between these two is outside the normal range, the ECM illuminates the MIL and stores a DTC.
CONFIRMATION DRIVING PATTERN
- HINT:
- ·
After repair has been completed, clear the DTC and then check that the vehicle has returned to normal by performing the following All Readiness check procedure.
·When clearing the permanent DTCs, refer to the "CLEAR PERMANENT DTC" procedure.
Connect the GTS to the DLC3.
Turn the ignition switch to ON.
Turn the GTS on.
Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).
Turn the ignition switch off and wait for at least 30 seconds.
Turn the ignition switch to ON.
Turn the GTS on.
Start the engine and warm it up until the engine coolant temperature is 75°C (167°F) or higher with the shift lever in P [A].
- HINT:
-
In order to keep the idle stable, turn off the A/C and all other electric loads and do not perform any shift operations.

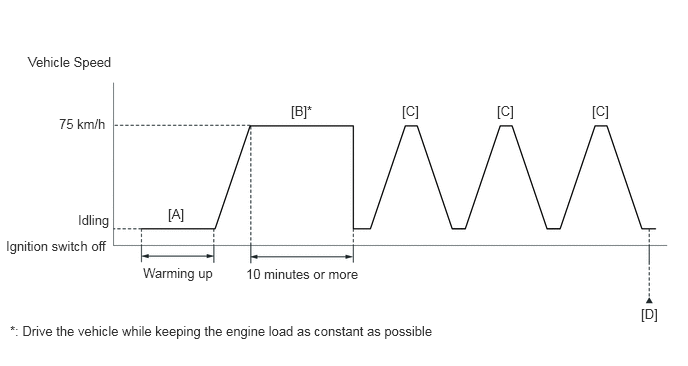

Drive the vehicle at approximately 75 km/h (46 mph) for 10 minutes or more [B].
- CAUTION:
-
When performing the confirmation driving pattern, obey all speed limits and traffic laws.
- HINT:
-
Drive the vehicle while keeping the engine load as constant as possible.
With the shift lever in M or 2nd gear, drive the vehicle at 75 km/h (46 mph), and then decelerate the vehicle by releasing the accelerator pedal for 10 seconds or more to perform the fuel-cut [C].
- CAUTION:
-
When performing the confirmation driving pattern, obey all speed limits and traffic laws.
Repeat step [C] 2 times or more in one driving cycle.
Enter the following menus: Powertrain / Engine / Trouble Codes / Pending [D].
Read the pending DTCs.
- HINT:
- ·
If a pending DTC is output, the system is malfunctioning.
·If a pending DTC is not output, perform the following procedure.
Enter the following menus: Powertrain / Engine / Utility / All Readiness.
Input the DTC: P00D562.
Check the DTC judgment result.
| GTS Display | Description |
|---|---|
| NORMAL | ·
DTC judgment completed ·
System normal |
| ABNORMAL | ·
DTC judgment completed ·
System abnormal |
| INCOMPLETE | ·
DTC judgment not completed ·
Perform driving pattern after confirming DTC enabling conditions |
- HINT:
- ·
If the judgment result is NORMAL, the system is normal.
·If the judgment result is ABNORMAL, the system is malfunctioning.
·If the judgment result is INCOMPLETE, drive the vehicle with the shift lever in M or 2nd gear, and then perform step [C] again.
·[A] to [D]: Normal judgment procedure.
The normal judgment procedure is used to complete DTC judgment and also used when clearing permanent DTCs.
·When clearing the permanent DTCs, do not disconnect the cable from the battery terminal or attempt to clear the DTCs during this procedure, as doing so will clear the universal trip and normal judgment histories.
CAUTION / NOTICE / HINT
- HINT:
- ·
Sensor 1 refers to the sensor closest to the engine assembly.
·Sensor 2 refers to the sensor farthest away from the engine assembly.
·Read Freeze Frame Data using the GTS. The ECM records vehicle and driving condition information as Freeze Frame Data the moment a DTC is stored. When troubleshooting, Freeze Frame Data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air fuel ratio was lean or rich, and other data from the time the malfunction occurred.
PROCEDURE
Read the DTCs.
- Powertrain > Engine > Trouble Codes
- 50001 372
- Result:
Result Proceed to DTC P00D562 is output A DTC P00D562 and P219519 or P219618 are output B DTC P00D562 and P227019 or P227118 are output C DTC P00D562 and other DTCs are output D
- HINT:
- ·
If any DTCs other than P00D562 are output, troubleshoot those DTCs first.
·Perform "Inspection After Repair" after replacing the air fuel ratio sensor (sensor 1) and air fuel ratio sensor (sensor 2).
A
B
C
D
