RM38N0EC _51 Engine / Hybrid System _111793 M20C-FKS, M20D-FKS FUEL _0504181 FUEL PUMP A

M20C-FKS, M20D-FKS FUEL FUEL PUMP DISASSEMBLY

CAUTION / NOTICE / HINT

NOTICE:

2.031,1.271 2.615,0.958 2.615,0.958 2.854,0.958 true 2.885,0.865 3.198,1.063 0.313,0.198 10 false *a

Tube

Do not disconnect the tube shown in the illustration when disassembling the fuel suction tube with pump and gauge assembly. Doing so will cause reassembly of the fuel suction tube with pump and gauge assembly to be impossible as the tube is pressed into the fuel suction plate sub-assembly.

PROCEDURE

Hide Display 83320 1.REMOVE FUEL SENDER GAUGE ASSEMBLY

Click hereEngine / Hybrid System>M20C-FKS, M20D-FKS (FUEL)>FUEL SENDER GAUGE ASSEMBLY>REMOVAL202111,202203,_51,_111793,_0504185,RM100000001ZHEJ_01_0016,202203,202406,_51,_111793,_0504185,RM1000000022KC6_01_0016,202406,999999,_51,_111793,_0504185,RM100000002MUMF_01_0016,

Hide Display 23221 2.REMOVE FUEL PUMP

Disengage the 2 claws, 2 clamps and disconnect the fuel suction tube from the fuel sub-tank sub-assembly.

Remove the O-ring from the fuel sub-tank sub-assembly.

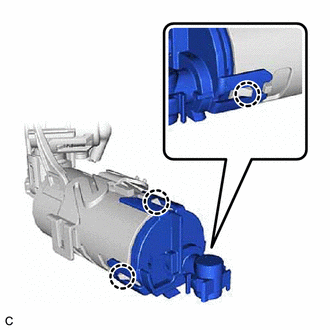

Disengage the 4 claws and disconnect the fuel pump from the fuel sub-tank sub-assembly.

0,0 0,0 false

	Pull
	Slide

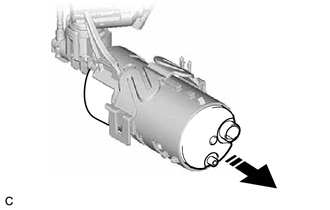

Disengage the claw and slide the fuel sub-tank sub-assembly and remove it from the fuel suction plate sub-assembly.

Disconnect the fuel pump harness connector to remove the fuel pump harness from the fuel pump.

Disengage the 3 claws and remove the No. 1 cap from the No. 1 fuel suction support.

Remove the fuel pump from the No. 1 fuel suction support.

Remove the O-ring from the fuel pump.
