M20D-FKS FUEL
_0504181
FUEL PUMP
K
M20D-FKS FUEL FUEL PUMP COMPONENTS
ILLUSTRATION
2.01,1.177 2.333,1.177
false
2.417,0.375 2.854,0.375
false
2.885,1.656 3.208,1.656
false
2.24,0.302 2.552,0.458
0.313,0.156
10
false
*1
1.76,1.094 2.167,1.313
0.406,0.219
10
false
●*2
2.615,1.563 3.021,1.781
0.406,0.219
10
false
●*2

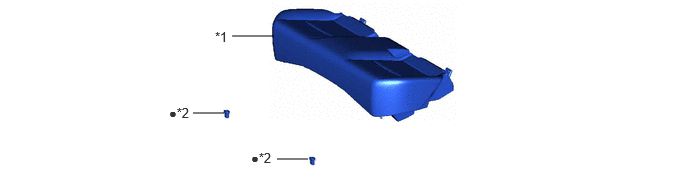

| *1 | REAR SEAT CUSHION ASSEMBLY | *2 | REAR SEAT CUSHION LOCK HOOK |
| ● | Non-reusable part | - | - |
ILLUSTRATION
3.156,4.25 3.49,4.25
false
2.99,1.042 3.323,1.042
false
4.313,0.458 4.646,0.458
false
3.042,2.896 3.479,2.896
false
4.688,2.292 4.792,2.042
4.792,2.042 5.042,2.042
false
5.406,2.563 5.74,2.563
false
3.094,1.615 3.427,1.615
false
2.292,3.219 2.292,2.875
false
4.531,1.677 4.865,1.677
false
4.698,0.365 4.958,0.583
0.26,0.219
10
false
*1
2.875,2.813 3.177,3.083
0.302,0.271
10
false
*2
5.094,1.958 5.385,2.219
0.292,0.26
10
false
*3
2.896,1.51 3.188,1.75
0.292,0.24
10
false
*4
2.229,3.25 2.531,3.49
0.302,0.24
10
false
*5
4.938,1.573 5.229,1.771
0.292,0.198
10
false
*6
5.781,2.49 6.052,2.688
0.271,0.198
10
false
*7
2.719,0.958 3.208,1.24
0.49,0.281
10
false
●*9
2.896,4.177 3.385,4.458
0.49,0.281
10
false
●*8

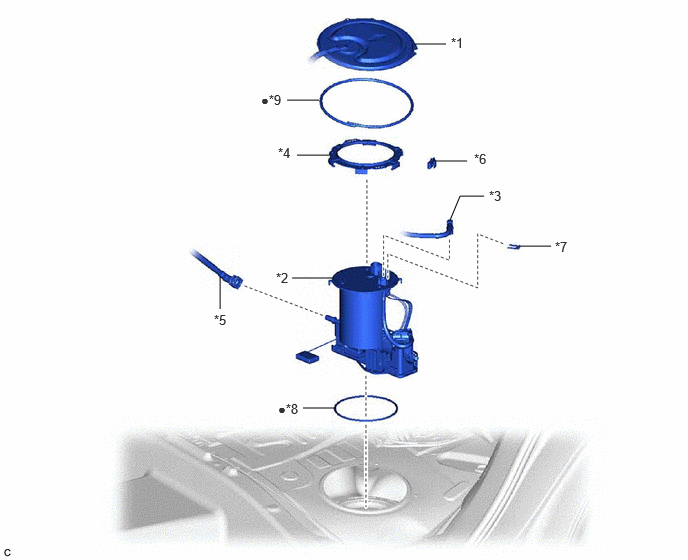

| *1 | REAR FLOOR SERVICE HOLE COVER (for LH Side) | *2 | FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY |
| *3 | FUEL TANK MAIN TUBE SUB-ASSEMBLY | *4 | FUEL PUMP GAUGE RETAINER |
| *5 | FUEL RETURN VENT TUBE SUB-ASSEMBLY | *6 | NO. 1 FUEL TUBE CLAMP |
| *7 | TUBE JOINT CLIP | *8 | FUEL SUCTION TUBE SET GASKET |
| *9 | BUTYL TAPE | - | - |
| ● | Non-reusable part | - | - |
ILLUSTRATION
4.635,3.531 4.635,3.135
false
4.74,1.708 5.104,1.708
false
5.49,3.688 5.49,3.292
false
4.167,3.313 4.167,2.896
false
3.896,2.406 3.979,2.198
3.979,2.198 4.135,2.198
false
2.188,1.177 2.552,1.177
false
0.729,2.5 1.094,2.5
false
1.948,4.563 2.313,4.563
false
4.552,3.583 4.833,3.865
0.281,0.281
10
false
*1
4.573,1.635 4.833,1.844
0.26,0.208
10
false
*2
2,1.104 2.229,1.313
0.229,0.208
10
false
*3
0.563,2.438 0.823,2.615
0.26,0.177
10
false
*4
1.792,4.49 2.052,4.688
0.26,0.198
10
false
*5
5.427,3.729 5.708,3.938
0.281,0.208
10
false
*6
4.01,3.323 4.344,3.573
0.333,0.25
10
false
●*7
4.208,2.115 4.542,2.365
0.333,0.25
10
false
●*7

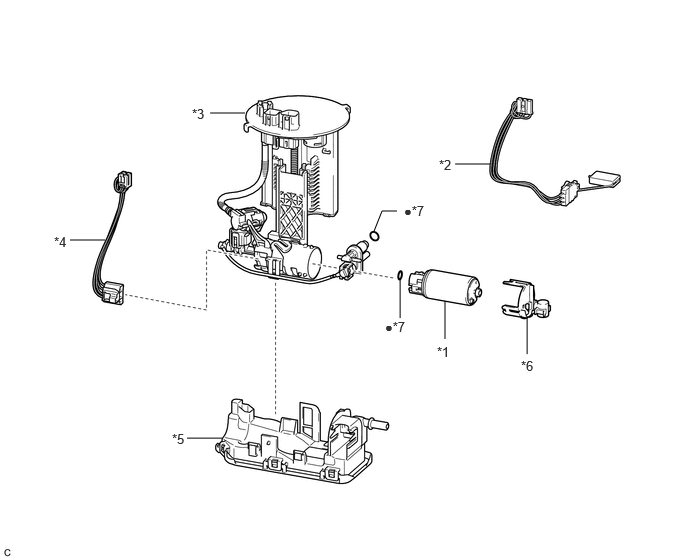

| *1 | FUEL PUMP | *2 | FUEL SENDER GAUGE ASSEMBLY |
| *3 | FUEL SUCTION PLATE SUB-ASSEMBLY | *4 | FUEL PUMP HARNESS |
| *5 | FUEL SUB-TANK SUB-ASSEMBLY | *6 | NO. 1 CAP |
| *7 | O-RING | - | - |
| ● | Non-reusable part | - | - |
