M20D-FKS FUEL  FUEL PUMP  INSPECTION

0.51,0.729 0.656,0.729 0.656,0.729 1.01,1.156 true 1.24,0.25 1.385,0.25 1.385,0.25 1.719,0.74 true 3.031,0.698 2.802,0.698 2.802,0.698 2.438,1.156 true 0.052,0.042 0.281,0.24 0.229,0.198 10 false *a 1.094,0.177 1.25,0.375 0.156,0.198 10 false V 0.375,0.667 0.531,0.865 0.156,0.198 10 false U 3.083,0.625 3.24,0.823 0.156,0.198 10 false W

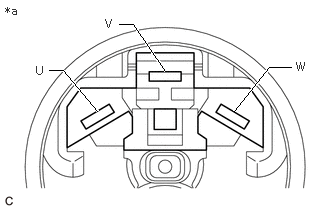

*a	Component without harness connected (Fuel Pump)

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Specified Condition
U - V	0.05 to 3.0 Ω
V - W	0.05 to 3.0 Ω
U - W	0.05 to 3.0 Ω

If the result is not as specified, replace the fuel pump.
