RM38N0EC _51 Engine / Hybrid System _111793 M20C-FKS, M20D-FKS FUEL _0504180 FUEL PRESSURE SENSOR(for High Pressure) A

M20C-FKS, M20D-FKS FUEL  FUEL PRESSURE SENSOR(for High Pressure)  INSTALLATION


CAUTION / NOTICE / HINT

NOTICE:

This procedure includes the installation of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.

Click hereGeneral>INTRODUCTION>REPAIR INSTRUCTION>PRECAUTION


PROCEDURE

Hide 89458 1.INSTALL FUEL PRESSURE SENSOR

HINT:

Perform "Inspection After Repair" after replacing the fuel pressure sensor.

Click hereEngine / Hybrid System>M20C-FKS, M20D-FKS (ENGINE CONTROL)>SFI SYSTEM>INITIALIZATION


a.

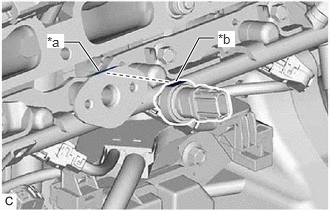

A401685C01
0.667,0.438 0.823,0.438 0.823,0.438 1.031,0.74 true 2.229,0.396 2.073,0.396 2.073,0.396 1.833,0.844 true 0.49,0.354 0.667,0.5 0.177,0.146 10 true *a 2.271,0.323 2.448,0.49 0.177,0.167 10 true *b
*a Cutout (Fuel Delivery Pipe)
*b Cutout (Fuel Pressure Sensor)


Temporarily install a new fuel pressure sensor to the fuel delivery pipe as shown in the illustration.

NOTICE:

Make sure that the cutout of the fuel delivery pipe is aligned with the cutout of the fuel pressure sensor.



b.
A401686C01
0.771,0.417 0.906,0.417 0.906,0.417 1.156,0.792 true 2.635,0.49 2.458,0.49 2.458,0.49 2.219,0.844 true 0.594,0.333 0.76,0.479 0.167,0.146 10 true *a 2.667,0.417 2.854,0.563 0.188,0.146 10 true *b
*a Cutout (Fuel Pressure Sensor)
*b Cutout (No. 1 Fuel Pressure Sensor Holder)


Temporarily install the No. 1 fuel pressure sensor holder to the fuel delivery pipe as shown in the illustration.

NOTICE:

Make sure that the cutout of the fuel pressure sensor is aligned with the cutout of the No. 1 fuel pressure sensor holder.



c.

Using an 8 mm socket wrench, install the 2 bolts.

Torque:
10 N*m (102 kgf*cm, 7 ft.*lbf)


d.

Connect the fuel pressure sensor connector.
