RM38N0EC _51 Engine / Hybrid System _111790 M20C-FKS, M20D-FKS EMISSION CONTROL _0503712 PURGE VALVE A

M20C-FKS, M20D-FKS EMISSION CONTROL  PURGE VALVE  REMOVAL


CAUTION / NOTICE / HINT

NOTICE:

When removing the fuel vapor feed hose, hold the purge valve body securely in place by hand.


PROCEDURE

Hide 25860 1.REMOVE PURGE VALVE (PURGE VSV)

a.

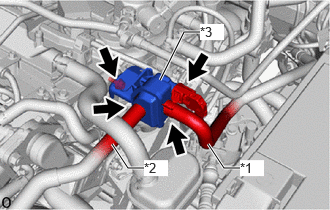

A449517C02
2.167,1.5 2.333,1.75 2.333,1.75 2.5,1.75 true 1.167,1.5 1.333,1.75 1.333,1.75 1.5,1.75 true 1.667,0.833 1.917,0.333 1.917,0.333 2.083,0.333 true 2.5,1.667 2.75,1.833 0.25,0.167 10 true *1 1.5,1.667 1.75,1.833 0.25,0.167 10 true *2 2.083,0.25 2.333,0.417 0.25,0.167 10 true *3
*1 No. 1 Fuel Vapor Feed Hose
*2 No. 2 Fuel Vapor Feed Hose
*3 Purge Valve (Purge VSV)


Disconnect the purge valve (purge VSV) connector.


b.

Disengage the wire harness clamp.


c.

Slide the clip and disconnect the No. 1 fuel vapor feed hose from the purge valve (purge VSV).


d.

Disconnect the No. 2 fuel vapor feed hose from the purge valve (purge VSV).


e.

Remove the bolt and purge valve (purge VSV) from the camshaft housing sub-assembly.
