Engine / Hybrid System
_111790
M20D-FKS EMISSION CONTROL
_0503712
PURGE VALVE
G
M20D-FKS EMISSION CONTROL PURGE VALVE INSPECTION
PROCEDURE
25860
1.INSPECT PURGE VALVE (PURGE VSV)
a.
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition 1 - 2 20°C (68°F) 23 to 26 Ω
If the result is not as specified, replace the purge valve (purge VSV).
b.
0.292,0.813 0.594,0.813
0.594,0.813 0.781,1.281
true
1.438,1.813 1.438,1.427
true
1.354,1.844 1.552,2.031
0.198,0.188
10
false
*a
0.115,0.719 0.313,0.906
0.198,0.188
10
false
*b
2.302,1.906 2.5,2.104
0.198,0.198
10
false
*c
2.406,0.052 2.594,0.25
0.188,0.198
10
false
*d

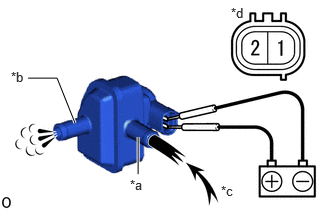

| *a | Port (E) |
| *b | Port (F) |
| *c | Air |
| *d | Component without harness connected
(Purge Valve (Purge VSV)) |
Apply battery voltage between the terminals of the purge valve (purge VSV) and check that the following occurs when blowing air into the port (E).
- OK:
Measurement Condition Specified Condition Battery voltage applied between terminals 1 and 2 Air flows from port (F) Battery voltage not applied between terminals 1 and 2 Air does not flow
If the result is not as specified, replace the purge valve (purge VSV).
