M20C-FKS, M20D-FKS EMISSION CONTROL  PURGE VALVE  INSTALLATION


CAUTION / NOTICE / HINT

NOTICE:

When installing the fuel vapor feed hose, hold the purge valve body securely in place by hand.


PROCEDURE

Hide 25860 1.INSTALL PURGE VALVE (PURGE VSV)

a.

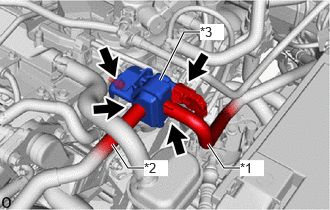

A449517C03
2.167,1.5 2.333,1.75 2.333,1.75 2.5,1.75 true 1.167,1.5 1.333,1.75 1.333,1.75 1.5,1.75 true 1.667,0.833 1.917,0.333 1.917,0.333 2.083,0.333 true 2.5,1.667 2.75,1.833 0.25,0.167 10 true *1 1.5,1.667 1.75,1.833 0.25,0.167 10 true *2 2.083,0.25 2.333,0.417 0.25,0.167 10 true *3
*1 No. 1 Fuel Vapor Feed Hose
*2 No. 2 Fuel Vapor Feed Hose
*3 Purge Valve (Purge VSV)


Install the purge valve (purge VSV) to the camshaft housing sub-assembly with the bolt.

Torque:
10 N*m (102 kgf*cm, 7 ft.*lbf)


b.

Connect the No. 2 fuel vapor feed hose to the purge valve (purge VSV).


c.

Connect the No. 1 fuel vapor feed hose to the purge valve (purge VSV) and slide the clip to secure it.


d.

Engage the wire harness clamp.


e.

Connect the purge valve (purge VSV) connector.
