Engine / Hybrid System
_111790
M20D-FKS EMISSION CONTROL
_0503711
VACUUM SENSOR
A
M20D-FKS EMISSION CONTROL VACUUM SENSOR REMOVAL
CAUTION / NOTICE / HINT
- NOTICE:
-
This procedure includes the removal of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.
PROCEDURE
89421
1.REMOVE E.F.I. VACUUM SENSOR ASSEMBLY (MANIFOLD ABSOLUTE PRESSURE SENSOR)
a.

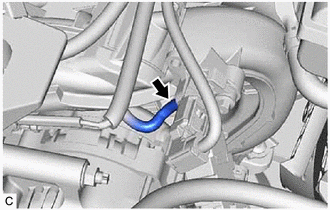

Disconnect the vacuum hose from the E.F.I. vacuum sensor assembly (manifold absolute pressure sensor).
b.
Disconnect the E.F.I. vacuum sensor assembly (manifold absolute pressure sensor) connector.
c.
Using an 8 mm socket wrench, remove the bolt and E.F.I. vacuum sensor assembly (manifold absolute pressure sensor) from the intake manifold.
