M20C-FKS, M20D-FKS COOLING  COOLING FAN SYSTEM  PARTS LOCATION

ILLUSTRATION

3.969,3.385 5.302,4.979 5.302,4.979 5.594,4.979 false 2.073,0.688 2.469,0.688 2.469,0.688 3.583,3.25 false 2.604,5.167 2.604,4.292 false 2.542,5.208 2.854,5.365 0.313,0.156 10 false *1 1.896,0.604 2.208,0.76 0.313,0.156 10 false *2 5.635,4.906 5.948,5.063 0.313,0.156 10 false *3

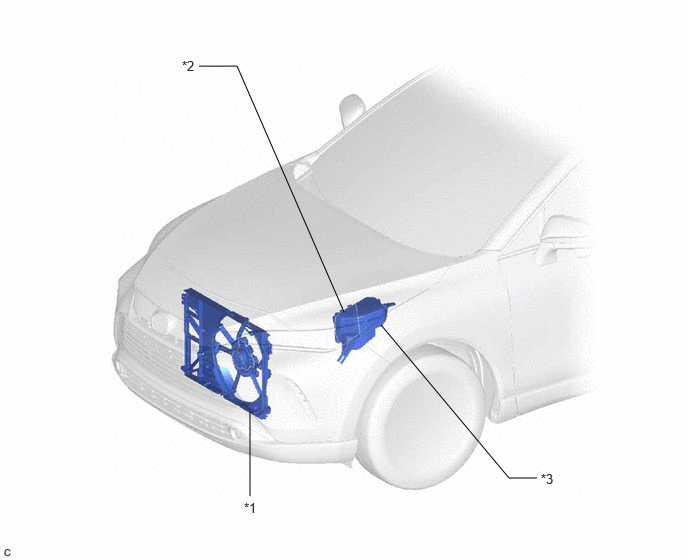

*1	FAN WITH MOTOR ASSEMBLY - COOLING FAN MOTOR - COOLING FAN ECU	*2	ECM
*3	NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - EFI-MAIN NO. 1 RELAY	-	-
