MAINTENANCE  K120 / K120F / K121 / K121F CONTINUOUSLY VARIABLE TRANSAXLE FLUID  COMPONENTS

ILLUSTRATION

1.094,1.688 2.125,1.906 1.031,0.219 5.135,2.365 6.167,2.583 1.031,0.219 4.729,1.021 5.365,1.021 false 3.365,2.823 4,2.823 false 2.135,1.792 2.771,1.792 false 4.979,2.844 4.979,2.469 4.979,2.469 5.135,2.469 false 5.417,0.927 5.781,1.188 0.365,0.26 10 false *1 3.167,2.74 3.5,2.958 0.333,0.219 10 false *2 5.083,2.823 5.74,3.198 0.656,0.375 10 false x 2 2.958,1.719 3.615,2.094 0.656,0.375 10 false x 6 4.479,1.708 5.135,2.083 0.656,0.375 10 false x 6 1.146,1.719 2.271,2.042 1.125,0.323 8 false 7.5 (76, 66 in.*lbf) 5.198,2.396 6.323,2.719 1.125,0.323 8 false 7.5 (76, 66 in.*lbf)

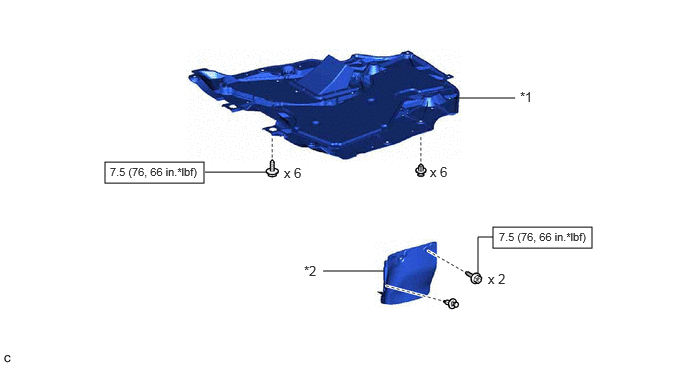

*1	NO. 2 ENGINE UNDER COVER ASSEMBLY	*2	FRONT FENDER APRON SEAL LH
	N*m (kgf*cm, ft.*lbf): Specified torque	-	-

ILLUSTRATION

3.552,5.125 4.302,5.292 0.75,0.167 2.458,4.417 3.375,4.615 0.917,0.198 3.521,5.083 4.333,5.333 0.813,0.25 5.51,4.104 6.323,4.354 0.813,0.25 5.542,4.146 6.292,4.313 0.75,0.167 3.927,5.125 3.927,4.854 false 5.042,4.125 5.271,3.823 5.271,3.823 5.542,3.823 false 3.375,4.521 3.896,4.521 false 5.208,4.229 5.542,4.229 false 3.958,4.677 4.25,4.677 false 5.542,4.385 5.823,4.615 0.281,0.229 10 false *1 3.542,5.365 3.833,5.573 0.292,0.208 10 false *2 2.469,4.667 2.729,4.875 0.26,0.208 10 false *3 5.75,3.729 6.052,3.948 0.302,0.219 10 false *4 5.604,3.729 5.802,3.969 0.198,0.24 10 false ● 3.604,5.135 4.417,5.333 0.813,0.198 8 false 49 (500, 36) 2.531,4.438 3.458,4.646 0.927,0.208 8 false 0.8 (8, 7 in.*lbf) 4.302,4.583 4.5,4.823 0.198,0.24 10 false ● 4.458,4.594 4.76,4.813 0.302,0.219 10 false *4 5.604,4.156 6.417,4.354 0.813,0.198 8 false 49 (500, 36)

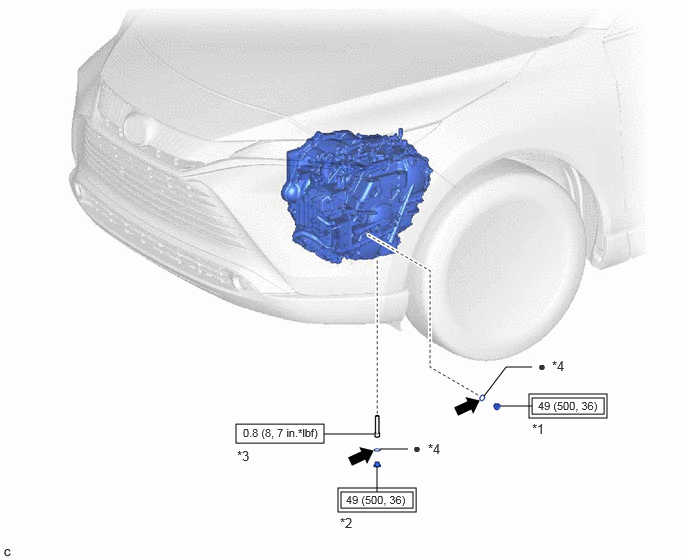

*1	REFILL PLUG	*2	OVERFLOW PLUG
*3	OVERFLOW (CVT) TUBE	*4	GASKET
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)		N*m (kgf*cm, ft.*lbf): Specified torque
●	Non-reusable part		Toyota Genuine CVT Fluid FE
