RM38N0EC _51 Engine / Hybrid System _111790 M20C-FKS, M20D-FKS EMISSION CONTROL _0503512 CANISTER A

M20C-FKS, M20D-FKS EMISSION CONTROL  CANISTER  INSTALLATION


PROCEDURE

Hide 77750 1.INSTALL NO. 2 CHARCOAL CANISTER SUB-ASSEMBLY

a.

Install the No. 2 charcoal canister sub-assembly to the vehicle body with the 3 bolts.

Torque:
8.0 N*m (82 kgf*cm, 71 in.*lbf)


b.

Connect the leak detection pump sub-assembly connector.


c.

Push in the air line tube to the pipe (leak detection pump sub-assembly) until the air line tube makes a "click" sound.

NOTICE:
·

Check that there are no scratches or foreign matter around the connecting parts of the tube connector and pipe (leak detection pump sub-assembly) before performing this work.

·

After connecting the air line tube, check that the air line tube is securely connected by pulling on the tube connector.




Hide 77740 2.INSTALL CANISTER (CHARCOAL CANISTER ASSEMBLY)

a.

Install the clip to the vehicle body.


b.
A433754

Engage the claw to install the canister (charcoal canister assembly) to the vehicle body as shown in the illustration.


c.

Engage the clip to the canister (charcoal canister assembly).


d.

Install the 2 bolts.

Torque:
8.0 N*m (82 kgf*cm, 71 in.*lbf)


e.

Connect the purge line hose to the canister (charcoal canister assembly) and slide the clip to secure it.


f.

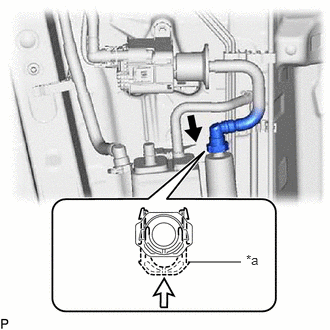

A433192C01
1.958,2.729 2.51,2.729 false 2.563,2.625 2.875,2.781 0.313,0.156 10 false *a
*a Retainer
V100135

Push in
V100136

Push


Push the vent line hose onto the canister (charcoal canister assembly) and push in the retainer to engage the lock claws.

NOTICE:
·

Check that there are no scratches or foreign matter around the connecting parts of the tube connector and pipe (canister (charcoal canister assembly)) before performing this work.

·

After connecting the vent line hose, check that the vent line hose is securely connected by pulling on the tube connector.




g.
A433193C01
1.958,2.729 2.552,2.729 false 2.604,2.625 2.917,2.781 0.313,0.156 10 false *a
*a Retainer
V100135

Push in


Push the fuel tank vent hose onto the canister (charcoal canister assembly) and push in the retainer to engage the lock claws.

NOTICE:
·

Check that there are no scratches or foreign matter around the connecting parts of the tube connector and pipe (canister (charcoal canister assembly)) before performing this work.

·

After connecting the fuel tank vent hose, check that the fuel tank vent hose is securely connected by pulling on the tube connector.
