M20C-FKS, M20D-FKS LUBRICATION OIL PRESSURE SWITCHING VALVE REMOVAL

CAUTION / NOTICE / HINT

NOTICE:: This procedure includes the removal of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.; Click hereGeneral>INTRODUCTION>REPAIR INSTRUCTION>PRECAUTION202111,999999,_V1,_111779,_0504973,RM100000001ZKRM,

PROCEDURE

Hide Display 53736 1.REMOVE FRONT FENDER APRON SEAL RH

Click hereEngine / Hybrid System>M20C-FKS, M20D-FKS (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL202111,202203,_51,_111786,_0499722,RM100000001YZIH_01_0005,202203,202303,_51,_111786,_0499722,RM1000000022F78_01_0005,202303,202406,_51,_111786,_0499722,RM100000002A0JY_01_0005,202406,202409,_51,_111786,_0499722,RM100000002MXOE_01_0005,202409,999999,_51,_111786,_0499722,RM100000002OLFC_01_0005,

Hide Display 15250 2.REMOVE OIL PRESSURE CONTROL VALVE ASSEMBLY

a.

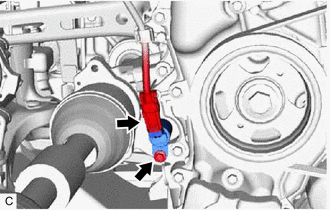

A402130

Disconnect the oil pressure control valve assembly connector.

b.

Using an 8 mm socket wrench, remove the bolt and oil pressure control valve assembly from the timing chain cover assembly.
