M20C-FKS, M20D-FKS LUBRICATION  OIL PRESSURE AND TEMPERATURE SENSOR  COMPONENTS

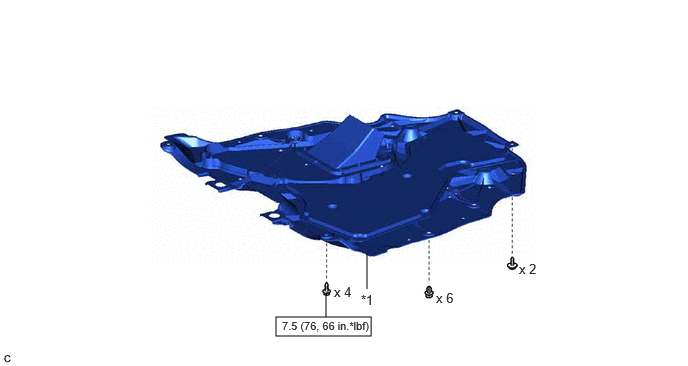

ILLUSTRATION

2.875,3.302 3.865,3.5 0.99,0.198 3.396,3.302 3.396,3.063 false 3.823,3.01 3.823,2.646 false 3.76,3.042 4.073,3.24 0.313,0.198 10 false *1 3.479,2.958 3.792,3.156 0.313,0.198 10 false x 4 4.542,3.021 4.854,3.219 0.313,0.198 10 false x 6 2.938,3.323 5.385,3.479 2.448,0.156 8 false 7.5 (76, 66 in.*lbf) 5.406,2.719 5.719,2.917 0.313,0.198 10 false x 2

*1	NO. 2 ENGINE UNDER COVER ASSEMBLY	-	-
	N*m (kgf*cm, ft.*lbf): Specified torque	-	-

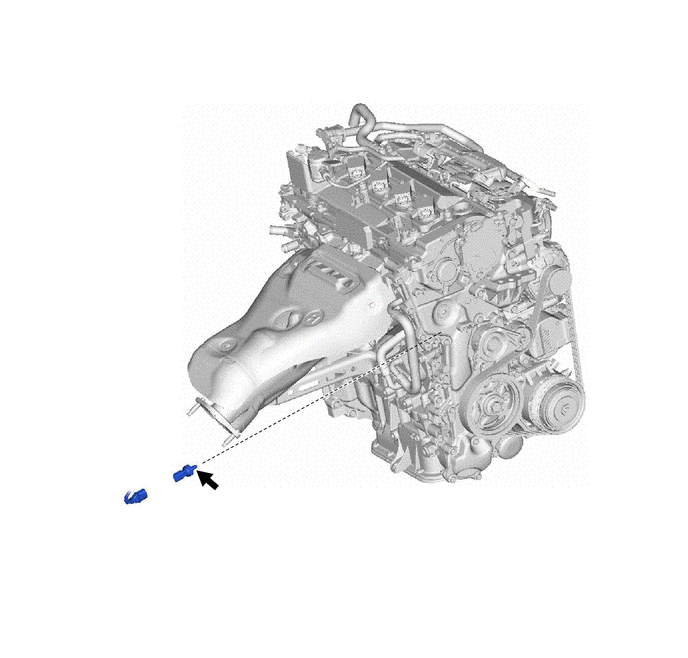

ILLUSTRATION

0.865,4.052 1.573,4.281 0.708,0.229 1.573,4.167 1.802,4.167 1.802,4.167 1.958,4.854 false 0.854,4.313 1.167,4.51 0.313,0.198 10 false *1 0.917,4.094 2.385,4.25 1.469,0.156 8 false 15 (153, 11) 0.667,4.073 0.823,4.229 0.156,0.156 10 false ★

*1	OIL PRESSURE AND TEMPERATURE SENSOR	-	-
	N*m (kgf*cm, ft.*lbf): Specified torque		Adhesive 1344
★	Precoated part	-	-
