RM38N0EC _51 Engine / Hybrid System _111787 M20C-FKS, M20D-FKS LUBRICATION _0503325 OIL PRESSURE AND TEMPERATURE SENSOR A

M20C-FKS, M20D-FKS LUBRICATION  OIL PRESSURE AND TEMPERATURE SENSOR  INSTALLATION


PROCEDURE

Hide 89448D 1.INSTALL OIL PRESSURE AND TEMPERATURE SENSOR

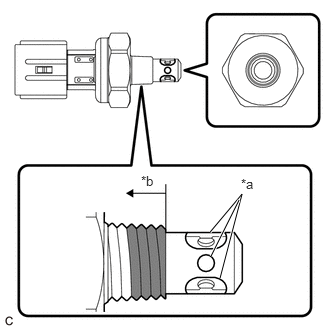

a.
A434102C01
2.188,2.417 2.521,2.021 2.521,2.021 2.292,2.896 true 2.198,2.667 2.49,2.083 true 2.51,1.833 2.823,1.99 0.313,0.156 10 false *a 1.469,1.802 1.781,1.958 0.313,0.156 10 false *b
*a Oil Inlet Port
*b 3 Threads or More
V100144

Adhesive Application Area


Apply adhesive to the area shown in the illustration.

Adhesive:

Toyota Genuine Adhesive 1344, Three Bond 1344 or equivalent


NOTICE:
·

Do not apply adhesive to the oil inlet port of the oil pressure and temperature sensor.

·

Apply the adhesive to the first 3 threads or more of the oil pressure and temperature sensor.

·

Apply adhesive to the entire circumference of the thread.

·

To prevent contamination by foreign matter, install immediately after applying adhesive.




b.

Using a 24 mm deep socket wrench, install the oil pressure and temperature sensor.

Torque:
15 N*m (153 kgf*cm, 11 ft.*lbf)

NOTICE:

Do not start the engine within 1 hour of installation.



c.

Connect the oil pressure and temperature sensor connector.
