FRONT SUSPENSION  FRONT SHOCK ABSORBER  DISPOSAL


PROCEDURE

Hide 48520 1.DISPOSE OF FRONT SHOCK ABSORBER ASSEMBLY

CAUTION:
C320205

·

Always use a cloth to prevent shards of metal flying about due to the release of pressurized gas.

·

Always wear safety glasses.



HINT:

The gas is colorless, odorless and non-poisonous.


a.
C424014N01
2.448,0.292 2.604,0.49 0.156,0.198 10 false B 1.5,0.292 1.656,0.49 0.156,0.198 10 false A

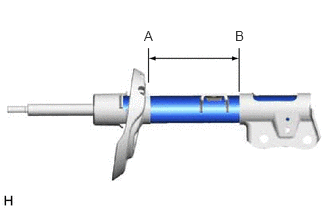

Place the front shock absorber horizontally with the piston rod extended, and using a hacksaw, make a hole between (A) and (B) shown in the illustration to discharge the gas inside.
