M20C-FKS, M20D-FKS ENGINE CONTROL  VACUUM SWITCHING VALVE(for Engine Mounting)  COMPONENTS

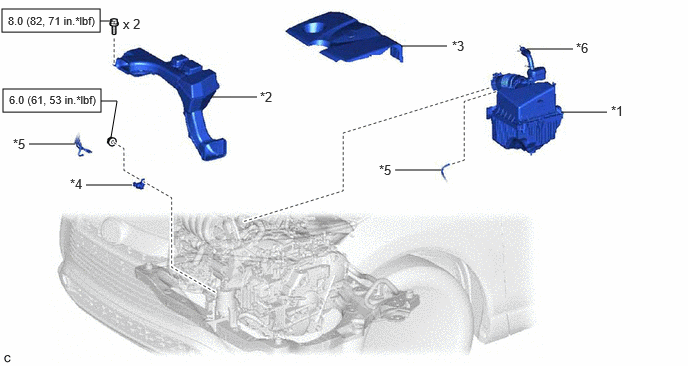

ILLUSTRATION

0.031,0.927 1.052,1.167 1.021,0.24 0.021,0.094 1.042,0.333 1.021,0.24 5.49,0.51 5.969,0.51 false 5.844,1.167 6.323,1.167 false 4.115,1.771 4.594,1.771 false 4.177,0.479 4.656,0.479 false 2.198,1.01 2.677,1.01 false 0.896,1.927 1.375,1.927 false 0.302,1.5 0.781,1.5 false 1.052,1.052 1.219,1.052 1.219,1.052 1.156,1.427 false 1.042,0.219 1.177,0.219 false 6.365,1.073 6.677,1.229 0.313,0.156 10 false *1 2.708,0.927 3.021,1.083 0.313,0.156 10 false *2 4.708,0.396 5.021,0.552 0.313,0.156 10 false *3 0.729,1.833 1.042,1.99 0.313,0.156 10 false *4 0.135,1.417 0.448,1.573 0.313,0.156 10 false *5 6,0.417 6.313,0.573 0.313,0.156 10 false *6 3.948,1.688 4.26,1.844 0.313,0.156 10 false *5 1.281,0.167 1.74,0.365 0.458,0.198 10 false x 2 0.083,0.146 1.229,0.427 1.146,0.281 8 false 8.0 (82, 71 in.*lbf) 0.094,0.969 1.24,1.25 1.146,0.281 8 false 6.0 (61, 53 in.*lbf)

*1	AIR CLEANER ASSEMBLY WITH AIR CLEANER HOSE	*2	INLET AIR CLEANER ASSEMBLY
*3	NO. 1 ENGINE COVER SUB-ASSEMBLY	*4	VACUUM SWITCHING VALVE (for Active Control Engine Mount System)
*5	VACUUM HOSE	*6	NO. 2 VENTILATION HOSE
	N*m (kgf*cm, ft.*lbf): Specified torque	-	-
