RM38N0EC _51 Engine / Hybrid System _111785 M20C-FKS, M20D-FKS ENGINE CONTROL _0503267 THROTTLE BODY A

M20C-FKS, M20D-FKS ENGINE CONTROL THROTTLE BODY REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during throttle body with motor assembly removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
· Replacement of throttle body with motor assembly · Cleaning the deposits from the throttle body with motor assembly	Inspection after repair	· Poor idle, etc. · Engine start function, etc.	(202111,202303,_51,_111785,_0504416,RM100000001ZIBM,202303,999999,_51,_111785,_0504416,RM1000000029BFF,)

NOTICE:: This procedure includes the removal of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.; Click hereGeneral>INTRODUCTION>REPAIR INSTRUCTION>PRECAUTION202111,999999,_V1,_111779,_0504973,RM100000001ZKRM,

PROCEDURE

Hide Display 1.DRAIN ENGINE COOLANT

Click hereGeneral>MAINTENANCE>M20C-FKS, M20D-FKS COOLANT>REPLACEMENT202111,999999,_V1,_112220,_0503655,RM100000001ZFD9_02_0001,

Hide Display 12601B 2.REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY

Click hereEngine / Hybrid System>M20C-FKS, M20D-FKS (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL202111,202203,_51,_111786,_0499722,RM100000001YZIH_01_0288,202203,202303,_51,_111786,_0499722,RM1000000022F78_01_0288,202303,202406,_51,_111786,_0499722,RM100000002A0JY_01_0288,202406,202409,_51,_111786,_0499722,RM100000002MXOE_01_0288,202409,999999,_51,_111786,_0499722,RM100000002OLFC_01_0288,

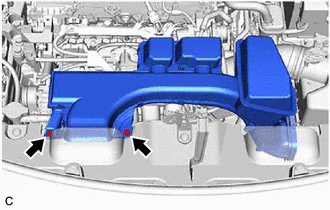

Hide Display 17750A 3.REMOVE INLET AIR CLEANER ASSEMBLY

Remove the 2 bolts and inlet air cleaner assembly.

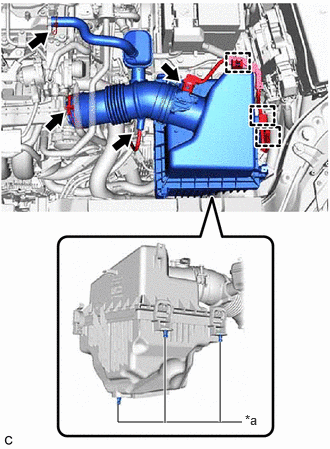

Hide Display 4.REMOVE AIR CLEANER ASSEMBLY WITH AIR CLEANER HOSE

1.229,4.208 1.229,4.396 1.229,4.396 2.521,4.396 false 1.719,4.406 1.719,3.51 true 2.292,4.396 2.292,3.563 true 2.552,4.292 2.865,4.49 0.313,0.198 10 false *a

Disconnect the mass air flow meter sub-assembly connector.

Disengage the 3 wire harness clamps.

Disconnect the vacuum hose from the air cleaner hose.

Slide the clip and disconnect the No. 2 ventilation hose from the cylinder head cover sub-assembly.

Loosen the hose clamp and disconnect the air cleaner hose from the throttle body with motor assembly.

Disengage the 3 pins to remove the air cleaner assembly with air cleaner hose.

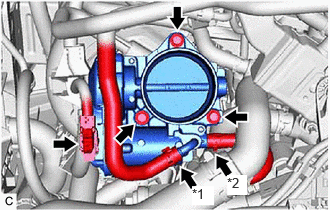

Hide Display 22030 5.REMOVE THROTTLE BODY WITH MOTOR ASSEMBLY

2,1.938 2.229,2.135 0.229,0.198 10 true *1 2.365,1.823 2.573,2.031 0.208,0.208 10 true *2

*1	No. 8 Water By-pass Hose
*2	No. 5 Water By-pass Hose

Disconnect the throttle body with motor assembly connector.

Slide the clip and disconnect the No. 8 water by-pass hose from the throttle body with motor assembly.

Using an 8 mm socket wrench, remove the 3 bolts and disconnect the throttle body with motor assembly from the intake manifold.

Slide the clip and disconnect the No. 5 water by-pass hose to remove the throttle body with motor assembly.

NOTICE:: If the throttle body with motor assembly has been struck or dropped, replace it.

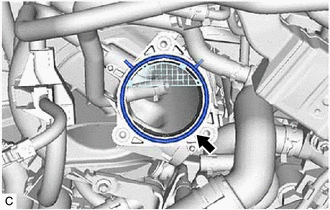

Hide Display 22271 6.REMOVE THROTTLE BODY GASKET

Remove the throttle body gasket from the intake manifold.
