RM38N0EC _51 Engine / Hybrid System _111785 M20C-FKS, M20D-FKS ENGINE CONTROL _0503264 CAMSHAFT OIL CONTROL VALVE A

M20C-FKS, M20D-FKS ENGINE CONTROL  CAMSHAFT OIL CONTROL VALVE  INSTALLATION


CAUTION / NOTICE / HINT

NOTICE:

This procedure includes the installation of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.

Click hereGeneral>INTRODUCTION>REPAIR INSTRUCTION>PRECAUTION


PROCEDURE

Hide 135A0B 1.INSTALL CAMSHAFT TIMING VALVE ASSEMBLY

a.
A427587

Type A:

i.

Apply a light coat of engine oil to the O-ring of the camshaft timing valve assembly.

NOTICE:

If reusing the camshaft timing valve assembly, be sure to inspect the O-ring.



ii.

Temporarily install the camshaft timing valve assembly to the camshaft timing exhaust gear assembly.

NOTICE:

If the camshaft timing valve assembly has been struck or dropped, replace it.



iii.

Using a 5 mm hexagon socket wrench, install the camshaft timing valve assembly with the bolt.

Torque:
19 N*m (194 kgf*cm, 14 ft.*lbf)



b.

Type B:

i.

Temporarily install the camshaft timing valve assembly to the camshaft timing exhaust gear assembly.

NOTICE:
·

If the camshaft timing valve assembly has been struck or dropped, replace it.

·

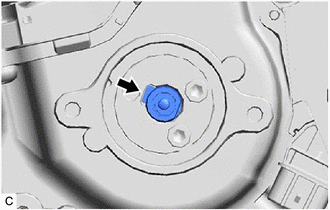

A464267

Make sure to fit the protrusion of the camshaft timing valve assembly into the cutout of the camshaft timing exhaust gear assembly.




ii.

Using a 5 mm hexagon socket wrench, install the camshaft timing valve assembly with the bolt.

Torque:
19 N*m (194 kgf*cm, 14 ft.*lbf)


iii.

Pull the camshaft timing valve assembly to confirm that is installed securely.
