STEERING COLUMN  STEERING COLUMN ASSEMBLY  INSPECTION


PROCEDURE

Hide 45250 1.INSPECT STEERING COLUMN ASSEMBLY

a.
C406884N01
1.698,0.073 1.854,0.271 0.156,0.198 10 false A

Measure the length of the steering main shaft.

Standard length (A):

423.7 to 483.7 mm (1.39 to 1.58 ft.)


HINT:

If the length of the steering main shaft is not as specified, replace the steering column assembly with a new one.



b.

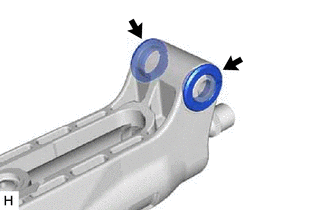

C353121

Check that the 2 bushings are securely installed to the steering column assembly.

HINT:

If the bushings are deformed, missing or damaged, replace the steering column assembly with a new one.
