MAINTENANCE  FRONT DISC BRAKE PAD  INSTALLATION


CAUTION / NOTICE / HINT

NOTICE:
·

Immediately after installing the front disc brake pads, the braking performance may be reduced. Always perform a road test in a safe place while paying attention to the surroundings.

·

After replacing the front disc brake pads, the brake pedal may feel soft due to clearance between the front disc brake pads and front disc. Depress the brake pedal several times until the brake pedal feels firm.

·

After replacing the front disc brake pads, always perform a road test to check the braking performance and check for vibrations.

·

When removing or installing the front disc brake cylinder assembly, pushing back the disc brake piston may cause a large clearance between the brake pads and brake disc. When the brake pedal is depressed with a large clearance between the brake pads and the brake disc, DTC C140000 and/or C140A00 related to abnormal brake fluid pressure may be stored. Make sure to clear any DTCs after performing this procedure. (for HV Model)

·

While the auxiliary battery is connected, even if the ignition switch is off, the brake control system activates when the brake pedal is depressed or any door courtesy switch turns on. Therefore, when servicing the brake system components, do not operate the brake pedal or open/close the doors while the auxiliary battery is connected. (for HV Model)



HINT:
·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.



PROCEDURE

Hide 04945 1.INSTALL FRONT DISC BRAKE ANTI-SQUEAL SHIM KIT

NOTICE:
·

When replacing worn front disc brake pads, the front disc brake anti-squeal shims and front disc brake pad wear indicator plates must be replaced together with the front disc brake pads.

·

Do not apply disc brake grease to the lining surface of the brake pad.

·

Install the front disc brake pad wear indicator plates in the correct position and direction.

·

Install the front disc brake anti-squeal shims in the correct position and direction.



a.

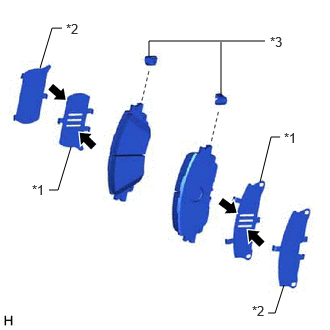

C405085C02
0.417,0.708 0.542,0.292 0.542,0.292 0.646,0.292 false 0.51,1.979 0.604,1.979 0.604,1.979 0.74,1.531 false 1.552,0.594 1.552,0.427 1.552,0.427 2.76,0.427 false 2.302,1 2.302,0.438 false 2.708,1.896 2.823,1.427 2.823,1.427 2.917,1.427 false 2.792,3.26 2.865,3.26 2.865,3.26 2.958,2.969 false 0.333,1.896 0.646,2.052 0.313,0.156 10 false *1 2.625,3.156 2.938,3.313 0.313,0.156 10 false *2 2.813,0.354 3.125,0.51 0.313,0.156 10 false *3 2.958,1.354 3.271,1.51 0.313,0.156 10 false *1 0.688,0.219 1,0.375 0.313,0.156 10 false *2
*1 Front No. 1 Disc Brake Anti-squeal Shim
*2 Front No. 2 Disc Brake Anti-squeal Shim
*3 Front Disc Brake Pad Wear Indicator Plate


Apply disc brake grease to both sides of each front No. 1 disc brake anti-squeal shim.


b.

Install the front No. 1 disc brake anti-squeal shim and front No. 2 disc brake anti-squeal shim to each front disc brake pad.


c.

Install 2 new front disc brake pad wear indicator plate to each front disc brake pad.


Hide 2.INSTALL FRONT DISC BRAKE PAD

CAUTION:
C405080

·

Be careful not to get pinched by the front disc brake cylinder assembly or other parts when installing the front disc brake pads.

·

After lifting up the front disc brake cylinder assembly, secure it in place before performing any work on it.

·

The front disc brake cylinder assembly could fall, pinching hands or fingers and causing injury.



a.

Push in the front disc brake piston.

NOTICE:
·

Make sure that the brake fluid does not overflow from the reservoir.

·

Do not forcibly push in the front disc brake piston.




b.

Install the 2 front disc brake pads to the front disc brake cylinder mounting.

NOTICE:
·

Keep the friction surfaces of the front disc brake pads and front disc free from oil and grease.

·

Install the front disc brake pad so that the pad wear indicator plate is mounted on the upper side of the vehicle.




c.

Hold the front disc brake cylinder slide pin (lower side) and install the front disc brake cylinder assembly to the front disc brake cylinder mounting with the bolt.

Torque:
34.3 N*m (350 kgf*cm, 25 ft.*lbf)


Hide 3.CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL (for HV Model)

a.

Connect the reservoir level switch connector.



c.

Turn the ignition switch to ON (READY).


d.

Depress the brake pedal and release it.



Hide 6. INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL (for HV Model)
