PARKING BRAKE  ELECTRIC PARKING BRAKE ACTUATOR  COMPONENTS

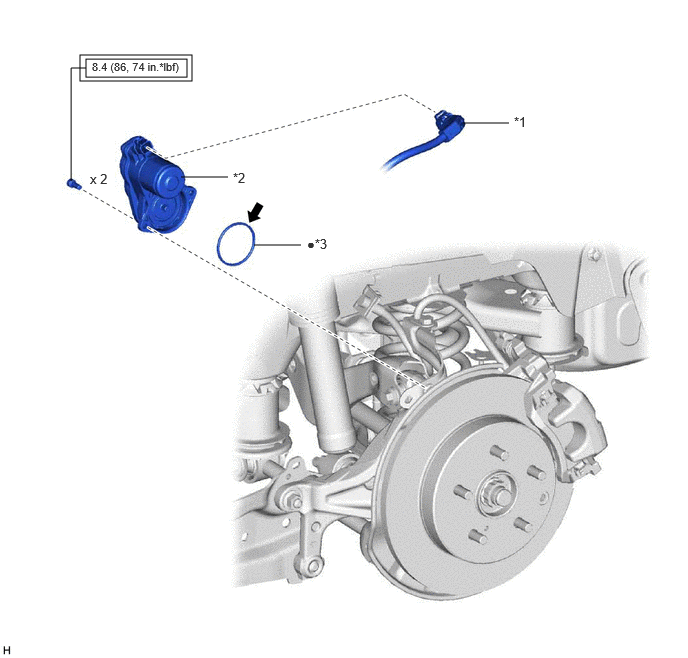

ILLUSTRATION

0.896,0.615 1.948,0.802 1.052,0.188 0.833,0.573 2,0.844 1.167,0.271 4.813,1.281 5.302,1.281 false 1.885,1.844 2.375,1.844 false 2.646,2.552 3.135,2.552 false 0.896,0.708 0.74,0.708 0.74,0.708 0.74,1.885 false 5.354,1.188 5.667,1.385 0.313,0.198 10 false *1 2.427,1.771 2.74,1.969 0.313,0.198 10 false *2 3.198,2.458 3.51,2.656 0.313,0.198 10 false ●*3 0.938,1.781 1.25,1.979 0.313,0.198 10 false x 2 0.958,0.625 1.938,0.781 0.979,0.156 8 false 8.4 (86, 74 in.*lbf)

*1	NO. 2 PARKING BRAKE WIRE ASSEMBLY	*2	PARKING BRAKE ACTUATOR ASSEMBLY
*3	PARKING BRAKE ACTUATOR SEAL	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)	●	Non-reusable part
	Lithium soap base glycol grease	-	-
