BRAKE (FRONT)  FRONT BRAKE FLEXIBLE HOSE  COMPONENTS

ILLUSTRATION

0.76,3.802 1.563,3.979 0.802,0.177 0.5,1.073 1.417,1.406 0.917,0.333 0.448,1.01 1.469,1.458 1.021,0.448 0.708,3.76 1.615,4.031 0.906,0.271 4.51,0.344 5.344,0.604 0.833,0.26 4.552,0.396 5.302,0.563 0.75,0.167 4.302,0.563 4.302,0.479 4.302,0.479 4.552,0.479 false 3.271,1.604 3.667,0.5 3.667,0.5 3.833,0.5 true 1.427,1.229 2.844,1.229 false 1.292,2 2.885,2 true 3.417,0.438 3.5,0.167 3.5,0.167 3.583,0.167 true 3.875,4.333 4.219,4.333 true 1.115,3.802 1.115,3.583 1.115,3.583 1.531,3.583 false 1.083,1.938 1.396,2.094 0.313,0.156 10 false *1 4.281,4.24 4.677,4.479 0.396,0.24 10 false ● *2 0.49,1.542 0.802,1.698 0.313,0.156 10 false *3 3.917,0.417 4.229,0.573 0.313,0.156 10 false *4 0.813,3.823 1.854,4.052 1.042,0.229 8 false 29.4 (300, 22) 4.615,0.406 5.656,0.635 1.042,0.229 8 false 29 (296, 21) 0.573,1.094 1.542,1.333 0.969,0.24 8 false 15.2 (155, 11) 0.573,1.25 1.51,1.406 0.938,0.156 8 false 13.4 (137, 10)* 3.667,0.063 3.906,0.219 0.24,0.156 10 false ● 0.75,4.073 1.104,4.281 0.354,0.208 10 false *5 0.531,3.792 0.688,3.99 0.156,0.198 10 false ●

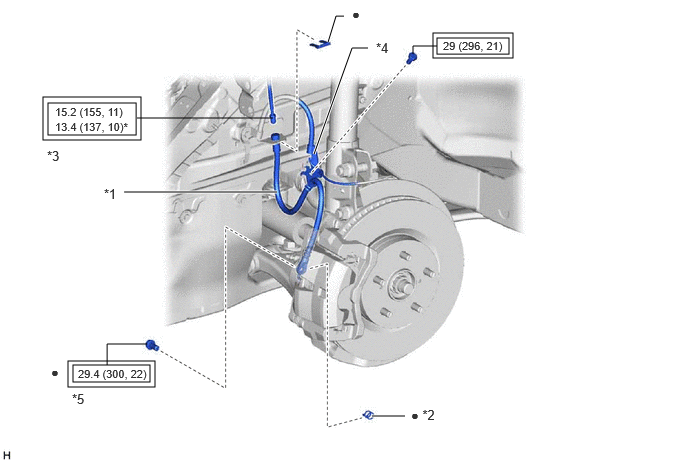

*1	FRONT FLEXIBLE HOSE	*2	GASKET
*3	BRAKE LINE	*4	FRONT SPEED SENSOR
*5	UNION BOLT	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)	*	For use with a union nut wrench
●	Non-reusable part	-	-
