DOOR LOCK  REAR DOOR LOCK  INSTALLATION

69770E 1.INSTALL REAR DOOR INSIDE LOCKING CABLE ASSEMBLY

69730M 2.INSTALL REAR DOOR LOCK REMOTE CONTROL CABLE ASSEMBLY

69037 3.INSTALL REAR DOOR LOCK COVER SUB-ASSEMBLY

a.

Engage the 2 claws.

b.

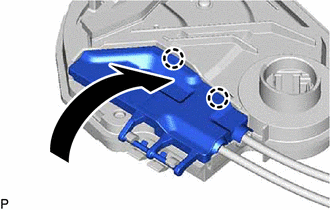

Engage the 2 claws to install the rear door lock cover sub-assembly as shown in the illustration.

69060A 4.INSTALL REAR DOOR LOCK WITH MOTOR ASSEMBLY

NOTICE:

·

When reusing a removed rear door lock with motor assembly, replace the door lock wiring harness seal with a new one.

·

Do not allow grease or dust to adhere to the door lock wiring harness seal installation surface.

·

Reusing a door lock wiring harness seal or using a damaged door lock wiring harness seal may cause water ingress. This may result in a malfunction of the rear door lock with motor assembly.

a.

Apply MP grease to the sliding parts of the rear door lock with motor assembly.

b.

When reusing the rear door lock with motor assembly:

i.

Install a new door lock wiring harness seal to the rear door lock with motor assembly.

c.

3.042,0.969 2.865,0.833 true 3.042,0.948 3.25,1.167 0.208,0.219 10 true *a

*a	Release Plate
	Install in this Direction

Connect the rear door lock with motor assembly to the release plate of the rear door outside handle frame sub-assembly as shown in the illustration, and set it to the rear door panel.

HINT:

Make sure that the release plate of the rear door outside handle frame sub-assembly is securely connected to the rear door lock with motor assembly.

d.

Using a T30 "TORX" socket wrench, install the rear door lock with motor assembly with the 3 screws.

Torque:

5.5 N*m (56 kgf*cm, 49 in.*lbf)

68104 5.INSTALL REAR DOOR GLASS SUB-ASSEMBLY

6.INSTALL HOLE PLUG

68124B 7.INSTALL REAR DOOR QUARTER WINDOW GLASS

67408E 8.INSTALL REAR DOOR WINDOW DIVISION BAR SUB-ASSEMBLY

68152C 9.INSTALL REAR DOOR GLASS RUN

67842E 10.INSTALL REAR DOOR SERVICE HOLE COVER

68199 11.INSTALL REAR DOOR REAR BELT SEAL

68174A 12.INSTALL REAR DOOR INNER GLASS WEATHERSTRIP

67604 13.INSTALL REAR DOOR TRIM BOARD SUB-ASSEMBLY

74222C 14.INSTALL REAR DOOR ARMREST COVER

69278C 15.INSTALL REAR DOOR INSIDE HANDLE BEZEL

16.CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL

65351A 17.INSTALL BATTERY HOLE COVER (for HV Model)

58416K 18.INSTALL REAR NO. 2 FLOOR BOARD (for HV Model)

19. INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL

20.INITIALIZE POWER WINDOW CONTROL SYSTEM

21.INSPECT POWER WINDOW OPERATION
