ADVANCED DRIVER ASSISTANCE SYSTEM AUTOMATIC HIGH BEAM MAIN SWITCH INSTALLATION

PROCEDURE

Hide Display 84153 1.INSTALL AUTO HIGH BEAM SWITCH

a.

E475879C01

0,0 0,0 false

V113147

Install in this Direction

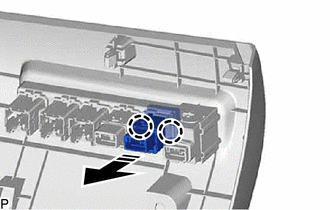

Engage the 2 claws to install the auto high beam switch as shown in the illustration.

Hide Display 53601 2.CONNECT HOOD LOCK CONTROL LEVER SUB-ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION202111,202203,_58,_111843,_0501135,RM100000001Z52Z_01_0147,202203,202303,_58,_111843,_0501135,RM10000000226IU_01_0147,202303,999999,_58,_111843,_0501135,RM100000002BEWI_01_0147,

Hide Display 77306 3.CONNECT FUEL LID LOCK OPEN LEVER SUB-ASSEMBLY (for Gasoline Model)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION202111,202203,_58,_111843,_0501135,RM100000001Z52Z_01_0199,202203,202303,_58,_111843,_0501135,RM10000000226IU_01_0199,202303,999999,_58,_111843,_0501135,RM100000002BEWI_01_0199,

Hide Display 55545 4.INSTALL FUSE BOX OPENING COVER

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION202111,202203,_58,_111843,_0501135,RM100000001Z52Z_01_0190,202203,202303,_58,_111843,_0501135,RM10000000226IU_01_0190,202303,999999,_58,_111843,_0501135,RM100000002BEWI_01_0190,

Hide Display 55606 5.INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION202111,202203,_58,_111843,_0501135,RM100000001Z52Z_01_0132,202203,202303,_58,_111843,_0501135,RM10000000226IU_01_0132,202303,999999,_58,_111843,_0501135,RM100000002BEWI_01_0132,

Hide Display 62112A 6.INSTALL COWL SIDE TRIM SUB-ASSEMBLY LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>INSTALLATION202111,202203,_58,_111843,_0501311,RM100000001Z5HC_02_0045,202203,999999,_58,_111843,_0501311,RM1000000022LYM_02_0045,

Hide Display 67914B 7.INSTALL FRONT DOOR SCUFF PLATE LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>INSTALLATION202111,202203,_58,_111843,_0501311,RM100000001Z5HC_02_0047,202203,999999,_58,_111843,_0501311,RM1000000022LYM_02_0047,
