ADVANCED DRIVER ASSISTANCE SYSTEM  CAMERA HEATER  INSTALLATION

0,0 0,0 false

	Heater Area
	Install in this Direction (1)
	Install in this Direction (2)

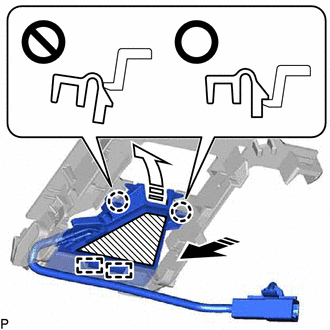

Engage the 2 guides and 2 claws as indicated by the arrows in the order shown in the illustration.

NOTICE:

·

Make sure that the 2 claws are engaged as shown in the illustration. Failure to do so may result in the malfunction of systems that use the forward recognition camera.

·

Do not apply force to the heating element of the forward recognition with heater hood sub-assembly or an open circuit may result.

0.646,1.052 0.229,0.979 0.229,0.979 1.094,0.75 true 0.24,1.49 0.24,0.969 0.24,0.969 0.448,1.24 true 1.896,0.865 1.896,0.625 true 1.813,0.854 2.042,1.063 0.229,0.208 10 true *a 1.406,0.667 1.563,0.854 0.156,0.188 10 true 4 0.948,1.01 1.104,1.198 0.156,0.188 10 true 3 0.708,1.26 0.865,1.448 0.156,0.188 10 true 2 0.458,1.479 0.615,1.667 0.156,0.188 10 true 1 0.031,0.875 0.219,1.073 0.188,0.198 10 true *b

*a	Connector Clamp
*b	Guide

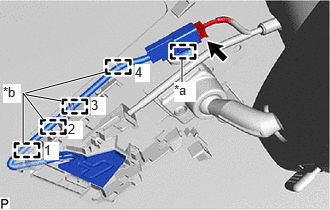

Engage the 4 guides in the order shown in the illustration.

NOTICE:

·

Do not forcibly pull the wire harness as it may become damaged.

·

As the No. 1 forward recognition cover cannot be installed correctly if the guides are not engaged securely, make sure to engage the guides securely.
