ADVANCED DRIVER ASSISTANCE SYSTEM  DYNAMIC RADAR CRUISE CONTROL SYSTEM(for Gasoline Model)  PARTS LOCATION

ILLUSTRATION

4.635,2.083 5.281,1.188 5.281,1.188 5.448,1.188 true 1,4.823 1.177,4.823 1.177,4.823 1.688,3.938 true 4.802,5.813 4.646,5.813 4.646,5.813 3.635,4.031 true 2.24,5.563 2.417,5.563 2.417,5.563 3.333,4 true 1.948,2.125 2.177,2.125 2.177,2.125 2.917,3.146 true 5.51,1.104 5.823,1.302 0.313,0.198 10 false *1 0.792,4.729 1.104,4.927 0.313,0.198 10 false *2 2.052,5.49 2.365,5.688 0.313,0.198 10 false *3 1.792,2.042 2.104,2.24 0.313,0.198 10 false *4 4.875,5.729 5.188,5.927 0.313,0.198 10 false *5

*1	FORWARD RECOGNITION CAMERA	*2	MILLIMETER WAVE RADAR SENSOR ASSEMBLY
*3	ECM	*4	SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY)
*5	NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - ECU-IGP NO. 3 FUSE	-	-

ILLUSTRATION

2.802,0.865 3.063,0.646 3.063,0.646 3.219,0.646 true 3.031,2.323 2.844,2.323 2.844,2.323 2.594,3.354 true 1.167,3.021 1.313,3.021 1.313,3.021 1.552,3.927 true 1.156,4.49 1.302,4.49 1.302,4.49 1.438,4.365 true 1.135,5.479 1.344,5.479 1.344,5.479 1.615,4.688 true 4.177,6.51 3.979,6.51 3.979,6.51 3.146,4.604 true 1.49,6.063 1.656,6.063 1.656,6.063 2.042,4.344 true 2.01,6.135 2.156,6.135 2.156,6.135 2.646,4.146 true 5.719,4.688 5.51,4.688 5.51,4.688 2.875,3.958 true 3.26,0.583 3.573,0.781 0.313,0.198 10 false *1 3.073,2.25 3.385,2.448 0.313,0.198 10 false *2 1.01,2.958 1.323,3.156 0.313,0.198 10 false *3 4.24,6.438 4.552,6.635 0.313,0.198 10 false *4 5.792,4.604 6.104,4.802 0.313,0.198 10 false *5 0.969,4.406 1.281,4.604 0.313,0.198 10 false *8 1.844,6.063 2.156,6.26 0.313,0.198 10 false *6 1.323,6 1.635,6.198 0.313,0.198 10 false *7 0.969,5.406 1.281,5.604 0.313,0.198 10 false *9

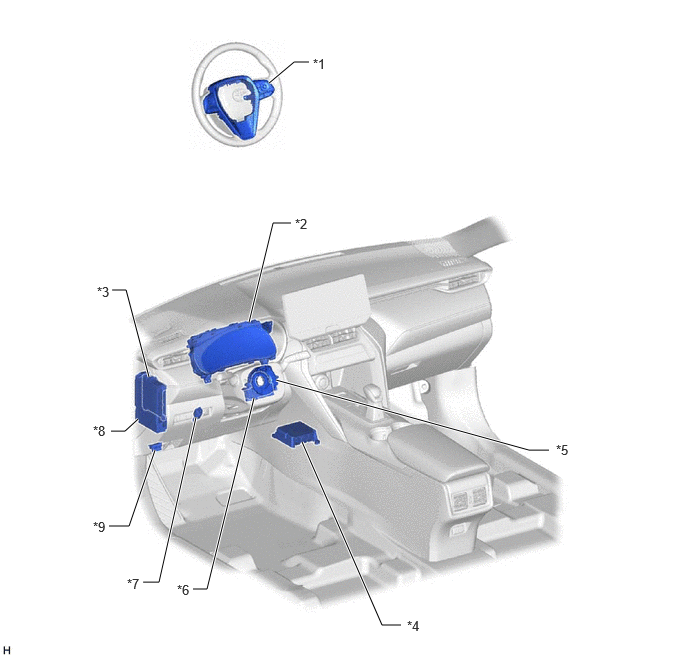

*1	STEERING PAD SWITCH ASSEMBLY	*2	COMBINATION METER ASSEMBLY
*3	MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)	*4	AIRBAG SENSOR ASSEMBLY
*5	SPIRAL CABLE SUB-ASSEMBLY	*6	STEERING SENSOR
*7	STOP LIGHT SWITCH ASSEMBLY	*8	POWER DISTRIBUTION BOX ASSEMBLY - ECU-IGR NO. 2 FUSE - STOP FUSE
*9	DLC3	-	-
