ADAS / AD
_111850
ADVANCED DRIVER ASSISTANCE SYSTEM
_0502172
FRONT RADAR SENSOR SYSTEM
U
ADVANCED DRIVER ASSISTANCE SYSTEM FRONT RADAR SENSOR SYSTEM TERMINALS OF ECU
CHECK MILLIMETER WAVE RADAR SENSOR ASSEMBLY
- NOTICE:
- ·
Turning the ignition switch to ON with connectors disconnected may cause DTCs to be stored. Make sure to clear the DTCs after inspection has been performed.
·Do not apply excessive force to the millimeter wave radar sensor assembly connector.
a.
Check millimeter wave radar sensor assembly
3.365,0.063 3.792,0.302
0.427,0.24
3.479,0.115 3.938,0.313
0.458,0.198
10
false

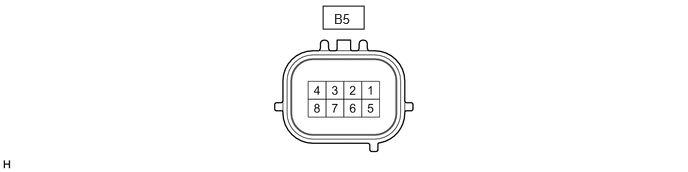

B5
b.
Measure the voltage and resistance according to the value(s) in the table below.
| Terminal No. (Symbol) | Terminal Description | Condition | Specified Condition |
|---|---|---|---|
| B5-1 (SGND) - Body ground | Ground | Always | Below 1 Ω |
| B5-8 (IGB) - B5-1 (SGND) | Power source | Ignition switch ON | 11 to 14 V*1
10.5 to 16 V*2 |
| Ignition switch off | Below 1 V |
*1: w/o Stop and Start System
*2: w/ Stop and Start System
