ADVANCED DRIVER ASSISTANCE SYSTEM  FRONT RADAR SENSOR SYSTEM  PARTS LOCATION

ILLUSTRATION

4.625,2.042 5.344,1.104 5.344,1.104 5.542,1.104 true 1.021,4.792 1.198,4.792 1.198,4.792 1.708,3.938 true 0.833,4.719 1.146,4.917 0.313,0.198 10 false *2 5.594,1.021 5.906,1.219 0.313,0.198 10 false *1

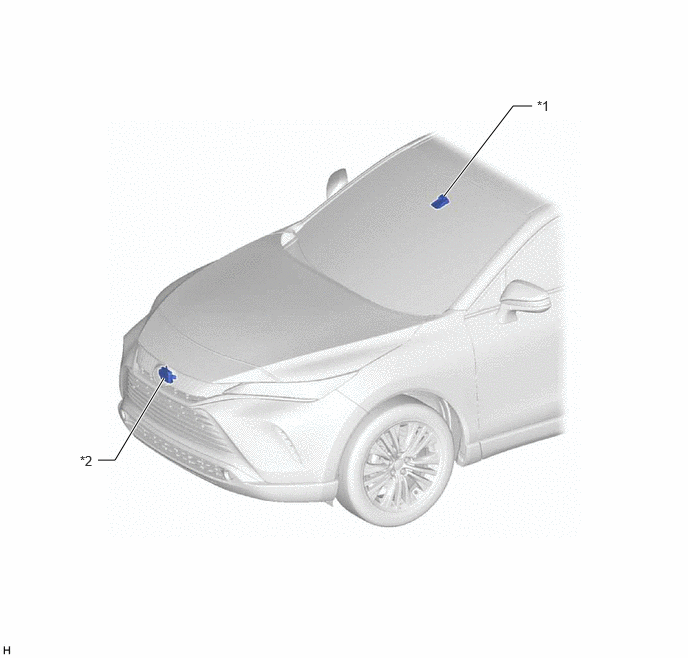

*1

FORWARD RECOGNITION CAMERA

*2

MILLIMETER WAVE RADAR SENSOR ASSEMBLY

ILLUSTRATION

0.906,3.917 1.063,3.917 1.063,3.917 1.458,3.438 true 4.615,2.99 5.406,3.5 5.406,3.5 5.594,3.5 true 0.708,3.875 1.021,4.073 0.313,0.198 10 false *1 5.677,3.438 5.99,3.635 0.313,0.198 10 false *2

*1

POWER DISTRIBUTION BOX ASSEMBLY - ECU-IGR NO. 1 FUSE (w/o Stop and Start System)

*2

DLC3
