MAINTENANCE  BATTERY COOLING FILTER  REMOVAL


PROCEDURE

Hide 58441L 1.REMOVE BATTERY SERVICE HOLE COVER

a.
A473500C01
0,0 0,0 false
V113147

Remove in this Direction

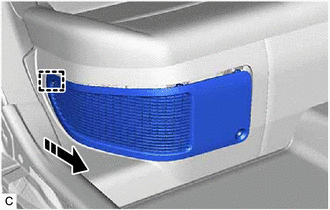

Remove the clip.


b.

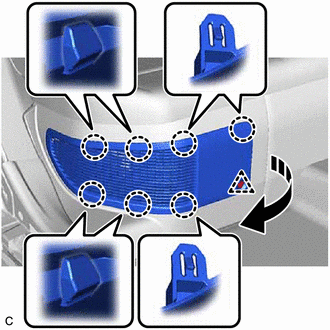

Disengage the 7 claws as shown in the illustration.


c.
A473501C01
0,0 0,0 false
V113147

Remove in this Direction


Disengage the guide to remove the battery service hole cover as shown in the illustration.


Hide G92DH 2.REMOVE NO. 1 HV BATTERY INTAKE FILTER

HINT:

If the message "Maintenance Required for Traction Battery Cooling Parts See Owner's Manual" is displayed on the multi-information display, inspect the No. 1 HV battery intake filter.

Click hereGeneral>MAINTENANCE>BATTERY COOLING FILTER>INSPECTION


a.
A473502N01
1.688,0.552 1.927,0.74 0.24,0.188 10 true A 3.146,1.229 3.385,1.417 0.24,0.188 10 true B 2.417,0.594 2.656,0.781 0.24,0.188 10 true A 1.646,1.542 1.885,1.729 0.24,0.188 10 true A 2.406,1.635 2.646,1.823 0.24,0.188 10 true A

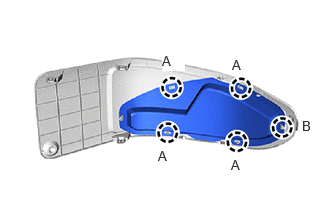

Disengage the 4 claws (A).


b.

Disengage the claw (B).


c.
A473908

Disengage the claw to remove the No. 1 HV battery intake filter from the battery service hole cover.
