STOP AND START  VACUUM SENSOR ASSEMBLY  INSTALLATION


PROCEDURE

Hide 1.INSTALL VACUUM SENSOR GROMMET

a.

Install a new vacuum sensor grommet to the brake booster assembly.


Hide 89420H 2.INSTALL VACUUM SENSOR ASSEMBLY

a.

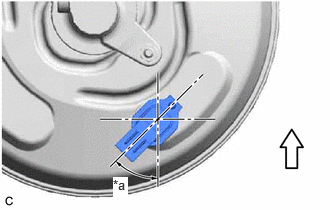

A497131C01
1.177,1.844 1.333,2.052 0.156,0.208 10 true *a
*a 45°
V100136

Up


Install the vacuum sensor assembly to the brake booster assembly so that the vacuum sensor assembly is angled as shown in the illustration.


b.

Connect the vacuum sensor assembly connector to the vacuum sensor assembly.
