SEAT BELT  REAR CENTER SEAT OUTER BELT ASSEMBLY  INSPECTION


PROCEDURE

Hide 73350C 1.INSPECT REAR CENTER SEAT OUTER BELT ASSEMBLY

a.

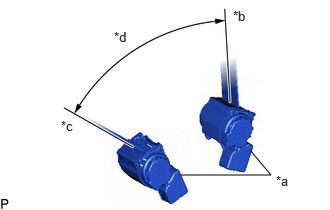

B629346C01
1.885,1.823 2.823,1.823 2.823,1.823 2.604,1.563 false 2.875,1.802 3.188,2 0.313,0.198 10 false *a 2.427,0.083 2.74,0.281 0.313,0.198 10 false *b 0.635,1.229 0.948,1.427 0.313,0.198 10 false *c 1.188,0.302 1.5,0.5 0.313,0.198 10 false *d
*a Retractor
*b Unlock
*c Lock
*d 45°


Before installing the rear center seat outer belt assembly, check the ELR function.

NOTICE:

Do not disassemble the retractor.


i.

When the inclination of the retractor is 15° or less, check that the belt can be pulled from the retractor. When the inclination of the retractor is over 45°, check that the belt locks.

If the result is not as specified, replace the rear center seat outer belt assembly.
