RM38N0EC _58 Vehicle Interior _111840 SEAT BELT _0501516 REAR SEAT OUTER BELT ASSEMBLY G

SEAT BELT  REAR SEAT OUTER BELT ASSEMBLY  INSPECTION


PROCEDURE

Hide 73370E 1.INSPECT REAR SEAT OUTER BELT ASSEMBLY

a.

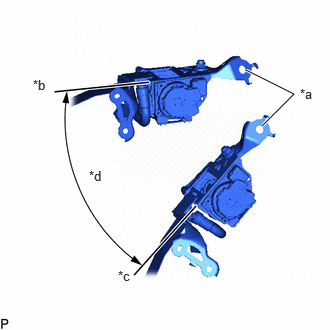

B629342C01
2.563,0.729 3.063,0.979 3.063,0.979 2.729,1.313 true 3.125,0.896 3.354,1.167 0.229,0.271 10 false *a 0.344,0.802 0.656,1 0.313,0.198 10 false *b 1.229,2.792 1.542,2.99 0.313,0.198 10 false *c 0.927,1.75 1.24,1.948 0.313,0.198 10 false *d
*a Retractor
*b Unlock
*c Lock
*d 45°


Before installing the rear seat outer belt assembly, check the ELR function.

NOTICE:

Do not disassemble the retractor.


i.

When the inclination of the retractor is 15° or less, check that the belt can be pulled from the retractor. When the inclination of the retractor is over 45°, check that the belt locks.

If the result is not as specified, replace the rear seat outer belt assembly.
