SEAT BELT  FRONT SEAT OUTER BELT ASSEMBLY  INSTALLATION


CAUTION / NOTICE / HINT

CAUTION:

Wear protective gloves. Sharp areas on the parts may injure your hands.


HINT:
·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.



PROCEDURE

Hide 73200A 1.INSTALL FRONT SHOULDER BELT ANCHOR ADJUSTER ASSEMBLY

HINT:

Perform this procedure only when replacement of the front shoulder belt anchor adjuster assembly is necessary.


a.

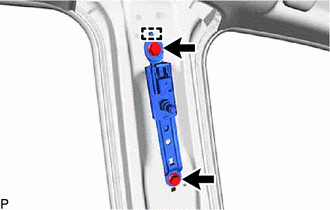

B585708

Engage the guide and temporarily install the front shoulder belt anchor adjuster assembly with the 2 bolts.


b.

Fully tighten the bolt (A) and then the bolt (B) to install the front shoulder belt anchor adjuster assembly.

Torque:
42 N*m (428 kgf*cm, 31 ft.*lbf)


Hide 73220 3.INSTALL FRONT SEAT OUTER BELT ASSEMBLY

a.

Engage the 2 guides.


b.

Install the front seat outer belt assembly with the bolt.

Torque:
12.5 N*m (127 kgf*cm, 9 ft.*lbf)


c.

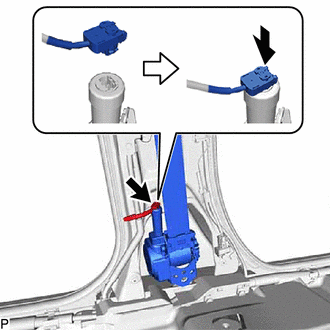

B585709
*a Locking Button
*b Lock


Connect the pretensioner connector and lock the locking button as shown in the illustration.

NOTICE:

Securely lock the locking button.



d.

Connect the shoulder anchor of the front seat outer belt assembly with the nut.

Torque:
42 N*m (428 kgf*cm, 31 ft.*lbf)


e.

Check that the ELR locks.

NOTICE:

This check should be performed with the front seat outer belt assembly installed to the vehicle.


i.

With the front seat outer belt assembly installed to the vehicle, check that the belt locks when it is pulled out quickly.


ii.

Remove the bolt to disconnect the floor anchor of the front seat outer belt assembly.



Hide 73220 6.CONNECT FRONT SEAT OUTER BELT ASSEMBLY

a.

Connect the floor anchor of the front seat outer belt assembly with the bolt.

Torque:
42 N*m (428 kgf*cm, 31 ft.*lbf)


Hide 73233 7.INSTALL LAP BELT OUTER ANCHOR COVER

a.

Engage the 2 claws and guide to install the lap belt outer anchor cover.
